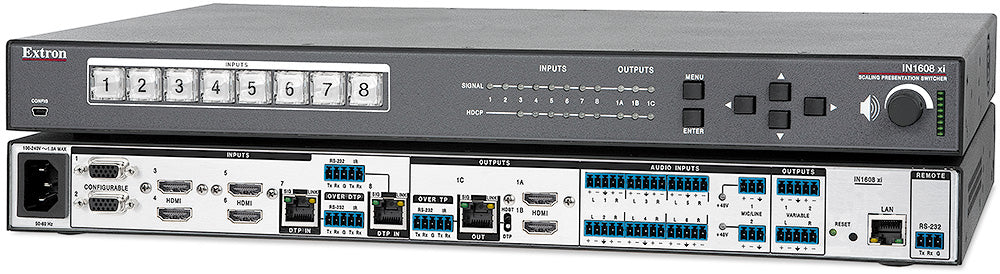

Extron IN1608 xi (part number 60-1238-81) — an eight-input, HDCP-compliant presentation switcher that combines scaling and DTP twisted pair extension in one 1U frame.

This is the standard IN1608 xi model: no integrated power amplifier and no embedded control processor. Four HDMI/DVI inputs and two universal analog inputs cover local sources, while two DTP 330 ports pull in remote laptops from a lectern, credenza or wall plate. Three outputs run simultaneously — two HDMI plus one twisted pair port that can be set to DTP 330 or HDBaseT — so a projector, a confidence display and a remote flat panel can all be driven from the same chassis. Extron EDID, HDCP key management and fast-switching technologies keep protected sources coming up cleanly.

Key Capabilities

Four HDMI/DVI plus two universal analog video inputs, and two DTP 330 twisted pair inputs.
Scaling engine with 10-bit processing and one billion colors; output rates from 640x480 up to 1920x1200, including 1080p and 2K.
Twisted pair reach of 330 ft (100 m) on shielded CATx, carrying video, audio, RS-232 and IR.
Eight-input audio matrix with two mic/line channels and switchable +48 VDC phantom power.
Audio de-embedding from HDMI and DTP, with bass and treble adjustable from +12 dB to -24 dB.
Control via RS-232, front-panel USB and 10/100Base-T Ethernet using Extron SIS commands.

Where It Is Used

The IN1608 xi suits boardrooms, divisible training rooms, lecture theatres, courtrooms and medical education suites — anywhere a rack-mounted switcher has to accept both legacy analog and current HDMI sources, then feed displays that sit well outside HDMI cable range. The DTP output is often used to reach a ceiling projector or a wall-mounted panel over a single shielded CATx run.

Specifications at a Glance

Inputs: 4 HDMI/DVI, 2 universal analog, 2 DTP 330
Outputs: 2 HDMI/DVI plus 1 DTP 330 or HDBaseT
Power consumption: 42 watts at full load; under 33 watts in power save
Enclosure: 1.72" H x 17.5" W x 9.5" D, 1U full rack width, metal
Weight: 5.0 lbs (2.3 kg); 3-year parts and labor warranty

Also referenced as Extron IN1608xi, IN1608-xi, part number 60123881.

Specifications

Part Number: 60-1238-81

Manufacturer: Extron

Model: IN1608 xi (Standard Model)

Condition: New

Local Video Inputs: 2 RGB, RGBcvS, component video (YUVi/YUVp/HDTV), S-video, composite; 4 HDMI/DVI

Remote Video Inputs: 2 DTP 330

Video Input Connectors: 2 female 15-pin HD, 4 female HDMI type A, 2 female RJ-45

HDMI Equalization: Automatic

HDMI Input Cable Length: Up to 75 ft (22.9 m) for all supported input rates

Video Input Impedance: 75 ohms

Horizontal Frequency: 15 kHz to 100 kHz

Vertical Frequency: 24 Hz to 75 Hz

Input Resolution Range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking); NTSC, PAL, SECAM, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 2K

Return Loss: Greater than 30 dB at 5 MHz

Video Input Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM, DVI 1.0, HDMI 1.3, HDCP 1.4

Decoder: 12 bit digital (3D adaptive comb filter)

Analog Sampling: 12 bits per color; 13.5 MHz standard (video), 170 MHz standard (RGB)

Digital Pixel Data Bit Depth: 8, 10 or 12 bits per channel; 165 MHz pixel clock (HDMI)

Colors: 1 billion (10 bit processing)

Local Video Outputs: 2 HDMI/DVI

Remote Video Output: 1 DTP 330 or HDBaseT (configurable)

Video Output Connectors: 2 female HDMI type A, 1 female RJ-45

HDMI Peripheral Device Power: 200 mA per output

Scaled Output Resolutions: 640x480 through 1920x1200, plus HDTV 480p, 576p, 720p, 1080i, 1080p and 2048x1080

Video Output Standards: DVI 1.0, HDMI 1.3, HDCP 1.4

Sync Input Type: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video

Sync Input Level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p tri-level component; 0.3 Vp-p bi-level component or RGsB

Sync Input Impedance: Horizontal 510 ohms, Vertical 510 ohms

Maximum Sync Input Voltage: 5.0 Vp-p

Twisted Pair Connectors: 3 female RJ-45

Termination Standard: TIA/EIA-T568B

DTP 330 Transmission Distance: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 STP cable

HDBaseT Transmission Distance: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 STP cable

Cable Requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth shielded twisted pair recommended

Audio Gain: Unbalanced output -6 dB; balanced output 0 dB

Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB

Audio THD + Noise: Less than 0.1%, 20 Hz to 20 kHz at nominal level

Audio S/N: Greater than 90 dB at maximum balanced output (unweighted)

Audio Crosstalk: -80 dB or less at 1 kHz, fully loaded

Stereo Channel Separation: Greater than 80 dB at 1 kHz

Bass: +12 dB to -24 dB at 100 Hz

Treble: +12 dB to -24 dB at 8 kHz

Analog De-embedding: LPCM up to 2.0/24-bit/96 kHz

HDMI Audio Pass-Through: LPCM up to 7.1/24-bit/192 kHz; Dolby Atmos, Dolby TrueHD and legacy Dolby formats; DTS:X, DTS-HD Master Audio, DTS 96/24 and legacy DTS formats

Audio Inputs: 8 stereo line level balanced or unbalanced; 2 mono mic/line level balanced or unbalanced with available phantom power; 4 stereo de-embedded from HDMI (PCM only); 2 DTP

Audio Input Connectors: (6) 3.5 mm captive screw, 5 pole for line; (2) 3.5 mm captive screw, 3 pole for mic/line; 4 female HDMI type A; 2 female RJ-45

Audio Input Impedance: Greater than 10k ohms unbalanced, greater than 20k ohms balanced

Audio Input Nominal Level: Line inputs +4 dBu or -10 dBV, adjustable; mic/line inputs -60 dBV, +4 dBu or -10 dBV, adjustable

Audio Input Maximum Level: +21 dBu at rated THD+N with input gain set to 0 dB

CMRR: Greater than 80 dB at 1 kHz

Input Gain Adjustment: Line inputs -18 dB to +24 dB in 1 dB steps; mic/line inputs -18 dB to +60 dB in 1 dB steps; LPCM-2Ch -18 dB to +24 dB in 0.1 dB steps

DC Phantom Power: +48 VDC plus or minus 10%, switchable on or off per mic/line input

Local Audio Outputs: 1 balanced or unbalanced stereo (variable); 1 balanced or unbalanced stereo configurable as stereo or two independently mixed mono channels; 2 HDMI embedded

Remote Audio Output: 1 DTP (embedded digital plus remote balanced/unbalanced analog) or 1 HDBaseT (embedded digital)

Audio Output Connectors: (2) 3.5 mm captive screw, 5 pole; 2 female HDMI type A; 1 RJ-45

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Gain Error: Plus or minus 0.5 dB channel to channel

Maximum Level (Hi-Z): Greater than +20 dBu balanced; greater than +14 dBu unbalanced

Output Volume Range: 0 to -100 dB in 1 dB steps

Serial Control Port: 1 bidirectional RS-232 on 3.5 mm captive screw connector, 3 pole (rear panel)

Baud Rate and Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity (default)

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd

USB Control Port: 1 front panel female mini USB B; USB 2.0, high speed

Ethernet Control Port: 1 female RJ-45 connector

Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect

Ethernet Protocol: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Ethernet Default Settings: Link speed and duplex autodetected; IP address 192.168.254.254; subnet mask 255.255.0.0; gateway 0.0.0.0; DHCP off

Program Control: Extron control and configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer

Serial Pass-Through, Input/DTP Tx: RS-232 via (2) 3.5 mm captive screw connectors, 5 pole, shared with the IR ports

Serial Pass-Through, Output/TP Rx: RS-232 via (1) 3.5 mm captive screw connector, 5 pole, shared with the IR port

Pass-Through Baud Rates: Up to 115200 baud

IR Pass-Through Control Ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

IR Control Pin Configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx

Power Supply: Internal; input 100-240 VAC, 50-60 Hz

Power Consumption: 42 watts at full load

Power Save Mode: Less than 33 watts

Thermal Dissipation: 123 BTU/hr at full load

Remote Power Capability, DTP Mode: Supports up to three endpoints (two DTP Tx, one DTP Rx)

Remote Power Capability, HDBaseT Mode: Supports up to two endpoints (two DTP Tx)

Ambient Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C); Operating +32 to +122 degrees F (0 to +50 degrees C); 10% to 90% noncondensing

Cooling: Fans, air flows right to left as viewed from the front panel

Mounting: Rack mount with included, pre-installed brackets

Enclosure Type: Metal

Enclosure Dimensions: 1.72 in H x 17.5 in W x 9.5 in D (1U high, full rack wide); 44 mm H x 444 mm W x 241 mm D. Depth excludes connectors and knobs; width excludes rack ears.

Product Weight: 5.0 lbs (2.3 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

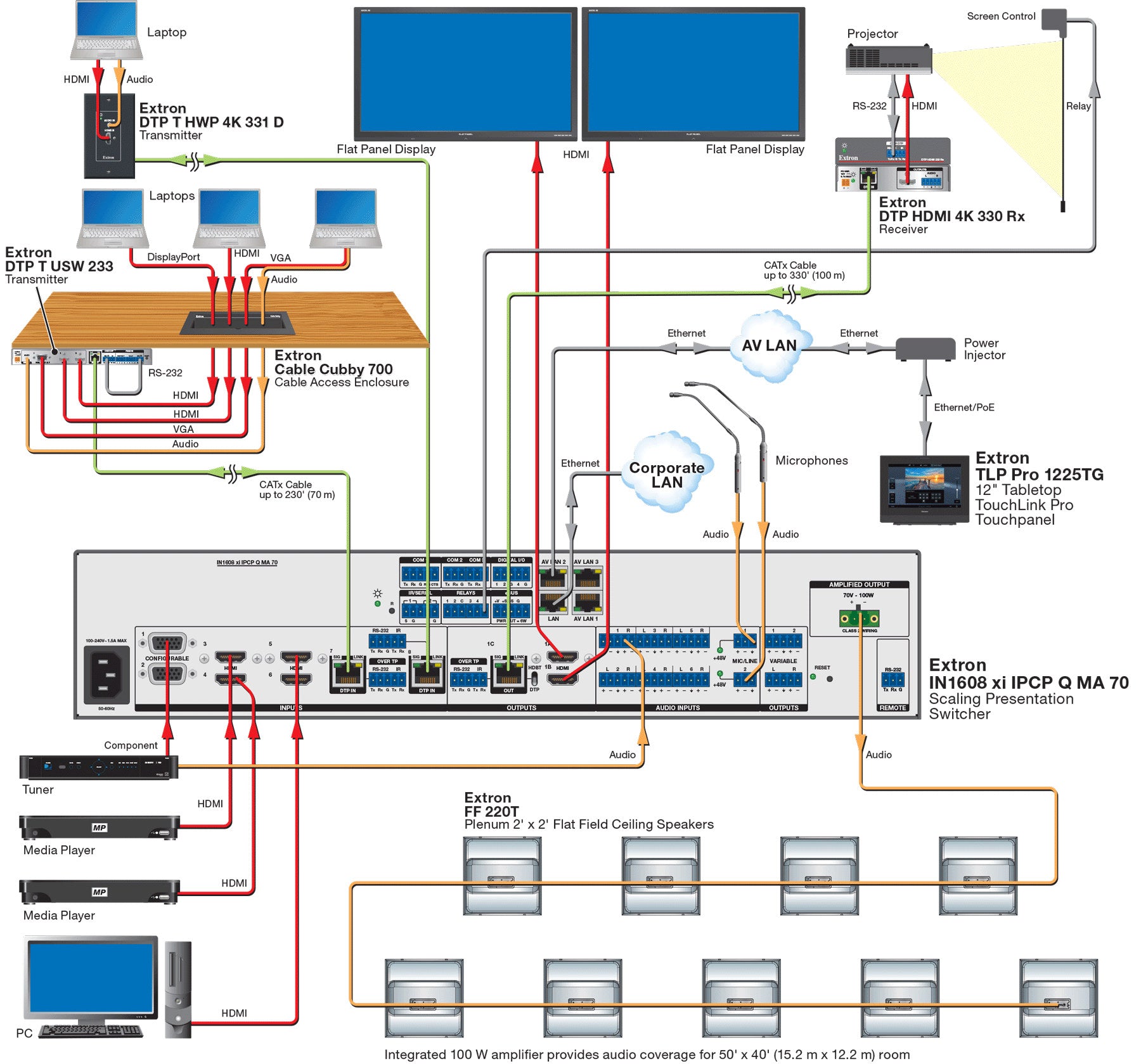

Diagram

Resources

Brochure | IN1608 xi 60-1238-81 | IN1608 xi (in1608xi_revA1.pdf)

Brochure | IN1608 xi 60-1238-81 | Everlast Power Supplies

Brochure | IN1608 xi 60-1238-81 | IN1608 xi (IN1608-xi_BR_A4_IT_RevA1.pdf)

Brochure | IN1608 xi 60-1238-81 | IN1608 xi (IN1608-xi_BR_A4_FR_RevA1.pdf)

Brochure | IN1608 xi 60-1238-81 | IN1608 xi (IN1608-xi_BR_A4_GE_RevA1.pdf)

Brochure | IN1608 xi 60-1238-81 | IN1608 xi (IN1608-xi_BR_A4_SP_RevA1.pdf)

Brochure | IN1608 xi 60-1238-81 | Alimentatori Everlast

Brochure | IN1608 xi 60-1238-81 | Everlast 电源

Brochure | IN1608 xi 60-1238-81 | Everlast-Netzteile

Brochure | IN1608 xi 60-1238-81 | Fuentes de alimentación Everlast

Brochure | IN1608 xi 60-1238-81 | IN1608 xi (IN1608-xi_BR_A4_EN_RevA1_Japanese.pdf)

Brochure | IN1608 xi 60-1238-81 | IN1608 xi (IN1608_xi_Rev_A1_CN_Online.pdf)

Brochure | IN1608 xi 60-1238-81 | IN1608 xi IPCP SA - Spec Sheet

Brochure | IN1608 xi 60-1238-81 | Sources d'alimentation Everlast

Manual | IN1608 xi 60-1238-81 | Cleaning Instruction Card

Manual | IN1608 xi 60-1238-81 | Control Systems Network Ports, Protocols, and Licenses

Manual | IN1608 xi 60-1238-81 | DTP Compatibility Guide

Manual | IN1608 xi 60-1238-81 | IN1608 xi Series User Guide

Manual | IN1608 xi 60-1238-81 | IN1608 xi Setup Guide

Manual | IN1608 xi 60-1238-81 | IPCP Pro Q xi and xi Series User Guide

Manual | IN1608 xi 60-1238-81 | DTP互換性ガイド

Panel Drawing | IN1608 xi 60-1238-81 | IN1608 xi

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron IN1608 xi 8-Input HDCP Scaling Presentation Switcher 60-1238-81

Name: Extron IN1608 xi 8-Input HDCP Scaling Presentation Switcher 60-1238-81
Brand: Extron
SKU: EXTRON-IN1608XI-60123881
Availability: InStock

Manufacturer: Extron

Type: Scalers & Signal Processors

Extron IN1608 xi Scaling Presentation Switcher

• Eight inputs: 4 HDMI/DVI, 2 universal analog, 2 DTP 330 twisted pair
• Scales every source to a common rate up to 1920x1200, 1080p and 2K
• Drives 3 displays at once: 2 HDMI plus 1 DTP 330 or HDBaseT output
• 330 ft (100 m) twisted pair reach for video, audio, RS-232 and IR
• Eight-channel audio matrix with 2 mic/line inputs and +48 VDC phantom power
• 1U metal rack enclosure, 5.0 lbs, 42 watts at full load
• Standard model without integrated amplifier or control processor
• 3-year warranty plus 7-year Everlast power supply coverage
