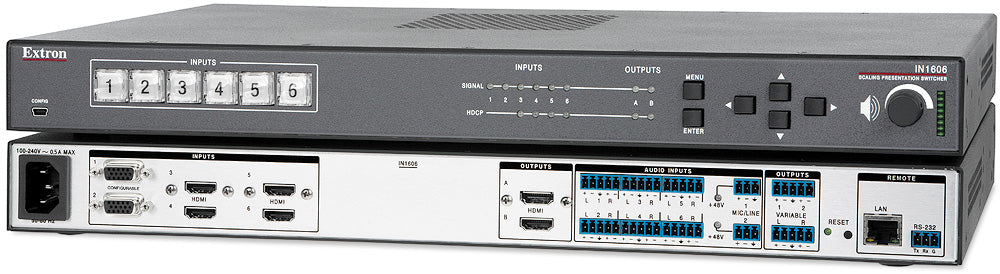

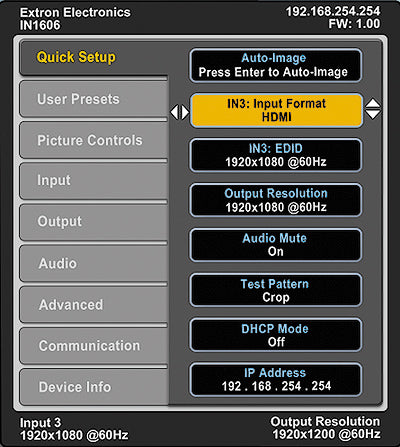

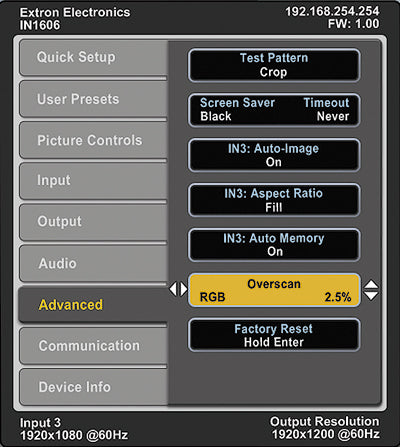

Extron IN1606 (part number 60-1081-01) — a 6-input scaling presentation switcher built for rooms that mix HDMI sources with legacy analog video and need networked control.

The IN1606 accepts four HDMI sources and two universal analog video inputs, scales the active source up to 2K, and routes it to dual HDMI outputs. Six line-level audio inputs plus two mic/line inputs with phantom power give it real audio-mixing muscle, and Ethernet, RS-232, and USB control ports mean it drops into an existing control system without extra hardware. A full-rack 1U chassis with pre-installed brackets keeps rack integration simple.

Key Capabilities

Switches and scales 4 HDMI and 2 universal analog video inputs to 2 HDMI outputs
Scales up to 2048x1080 (2K) with 12-bit video processing

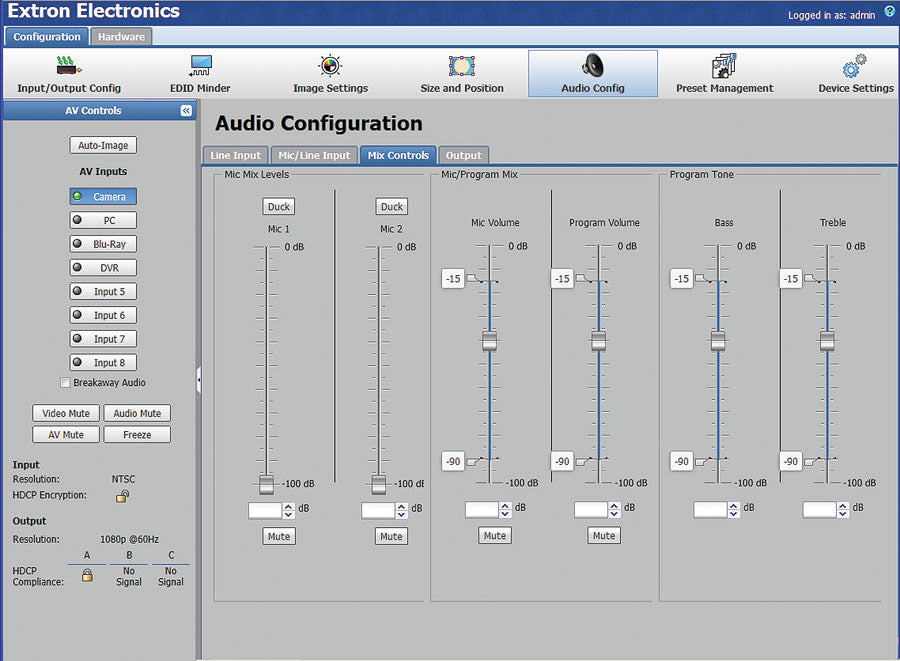

Mixes 6 line inputs and 2 mic/line inputs with phantom power and HDMI audio de-embedding
Passes Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio through HDMI
Controlled over Ethernet, RS-232, or front-panel USB

Where It Is Used

Boardrooms, training rooms, and multipurpose spaces that need to mix HDMI laptops with legacy analog sources — while still routing microphone and program audio through one chassis — use the IN1606 as the single hub for both signal chains.

Specifications at a Glance

6 video inputs (4 HDMI, 2 analog), 2 HDMI outputs
2K (2048x1080) scaled resolution
6 line + 2 mic/line audio inputs with phantom power
Ethernet, RS-232, and USB control
3-year Extron warranty, 7-year Everlast power supply warranty

Also referenced as Extron IN1606, part number 60108101.

Specifications

Part Number: 60-1081-01

Manufacturer: Extron

Model: IN1606

Condition: New

Video Input Number/signal type: 2 RGB, RGBcvS, component video (YUVi or YUVp/HDTV), S-video, composite video; 4 HDMI digital video

Video Input Connectors: 2 female 15-pin HD, 4 female HDMI

Video Input Equalization: Automatic

Input cable length: Up to 75' (22.9 m) for all supported input rates

Resolution range: 640x480 to 1600x1200 and 1920x1200, NTSC, PAL, SECAM, 480i-1080p, and 2K (reduced blanking)

Video Input Impedance: 75 ohms

Horizontal frequency: 15 kHz to 100 kHz

Vertical frequency: 24 Hz to 75 Hz

Return loss: greater than 30 dB @ 5 MHz

DC offset (max. allowable): 1.5 V

Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM, DVI 1.0, HDMI 1.3, HDCP 1.4

Decoder: 12 bit digital (3D-adaptive comb filter)

Analog sampling: 12 bits per color; 13.5 MHz standard (video), 170 MHz standard (RGB)

Digital pixel data bit depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)

Colors: 1 billion (10 bit processing)

Video Output Number/signal type: 2 HDMI

Video Output Connectors: 2 female HDMI

HDMI peripheral device power: 200 mA per output

Input type: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video

Input standards: NTSC 3.58, NTSC 4.43, PAL, SECAM

Input level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p for tri-level sync; 0.3 Vp-p for bi-level sync or RGsB

Sync Input impedance: Horizontal: 510 ohms; Vertical: 510 ohms

Max. input voltage: 5.0 Vp-p

Gain: Unbalanced output: -6 dB; balanced output: 0 dB

Frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: less than 0.1%, 20 Hz to 20 kHz at nominal level

Audio S/N: greater than 90 dB at maximum balanced output (unweighted)

Crosstalk: -80 dB or better @ 1 kHz, fully loaded

Stereo channel separation: greater than 80 dB @ 1 kHz

Bass: +12 dB to -24 dB @ 100 Hz

Treble: +12 dB to -24 dB @ 8 kHz

Analog de-embedding: LPCM-2Ch

HDMI pass-through: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats

Audio Input Number/signal type: 6 stereo line balanced or unbalanced; 2 mono mic/line balanced or unbalanced (with available phantom power); 4 stereo, de-embedded from HDMI (PCM only)

Audio Input Connectors: (6) 3.5 mm, 5 pole captive screw connectors for line; (2) 3.5 mm, 3 pole captive screw connectors for mic/line; 4 female HDMI type A

Audio Input Impedance: greater than 10k ohms unbalanced, greater than 20k ohms balanced

Audio Input Nominal level: Line inputs: +4 dBu, -10 dBV, adjustable. Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable

Audio Input Maximum level: +21 dBu at rated THD+N when gain is set to 0 dB

Audio CMRR: greater than 80 dB @ 1 kHz

Input gain adjustment: Line inputs: -18 dB to +24 dB, 0.1 dB steps, per input. Mic/line inputs: -18 dB to +60 dB, 0.1 dB steps, per input. LPCM-2Ch: -18 dB to +24 dB, 0.1 dB steps, per input

DC phantom power: +48 VDC ±10% (switchable per mic/line input)

Audio Output Number/signal type: 1 balanced or unbalanced stereo (variable); 1 balanced or unbalanced stereo, configurable as stereo or two independently mixed mono channels; 2 HDMI embedded

Audio Output Connectors: (2) 3.5 mm captive screw connectors, 5 pole; 2 female HDMI

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Gain error: ±0.5 dB channel to channel

Audio Output Maximum level (Hi-Z): greater than +21 dBu balanced, greater than +15 dBu unbalanced

Output volume range: 0 to -100 dB in 0.1 dB steps

Serial control port: 1 bidirectional RS-232, 1 rear panel 3.5 mm captive screw connector, 3 pole

Baud rate and protocol: 9600, 8 data bits, 1 stop bit, no parity (default)

USB control port: 1 front panel female mini USB B

USB standards: USB 2.0, high speed

Ethernet control port: 1 female RJ-45 connector

Ethernet data rate: 10/100Base-T, half/full duplex with autodetect

Ethernet protocol: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

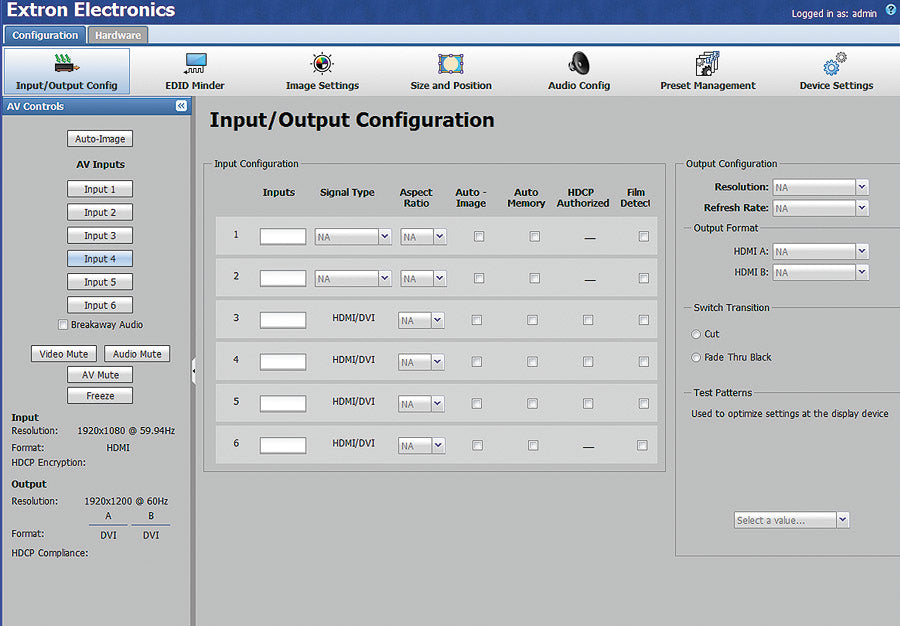

Program control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer, Telnet

Power supply: Internal; Input: 100-240 VAC, 50-60 Hz

Power consumption (full load): 26 watts

Power consumption (power save mode): less than 14 watts

Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Passive, side and top vents

Thermal dissipation (full load): 68.7 BTU/hr

Thermal dissipation (power save mode): 45.4 BTU/hr

Mounting: Rack mount, yes, with included pre-installed brackets

Enclosure type: Metal

Enclosure dimensions: 1.72" H x 17.5" W x 9.5" D (1U high, full rack wide) (depth excludes connectors and knobs; width excludes rack ears)

Product weight: 4.9 lbs (2.2 kg)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

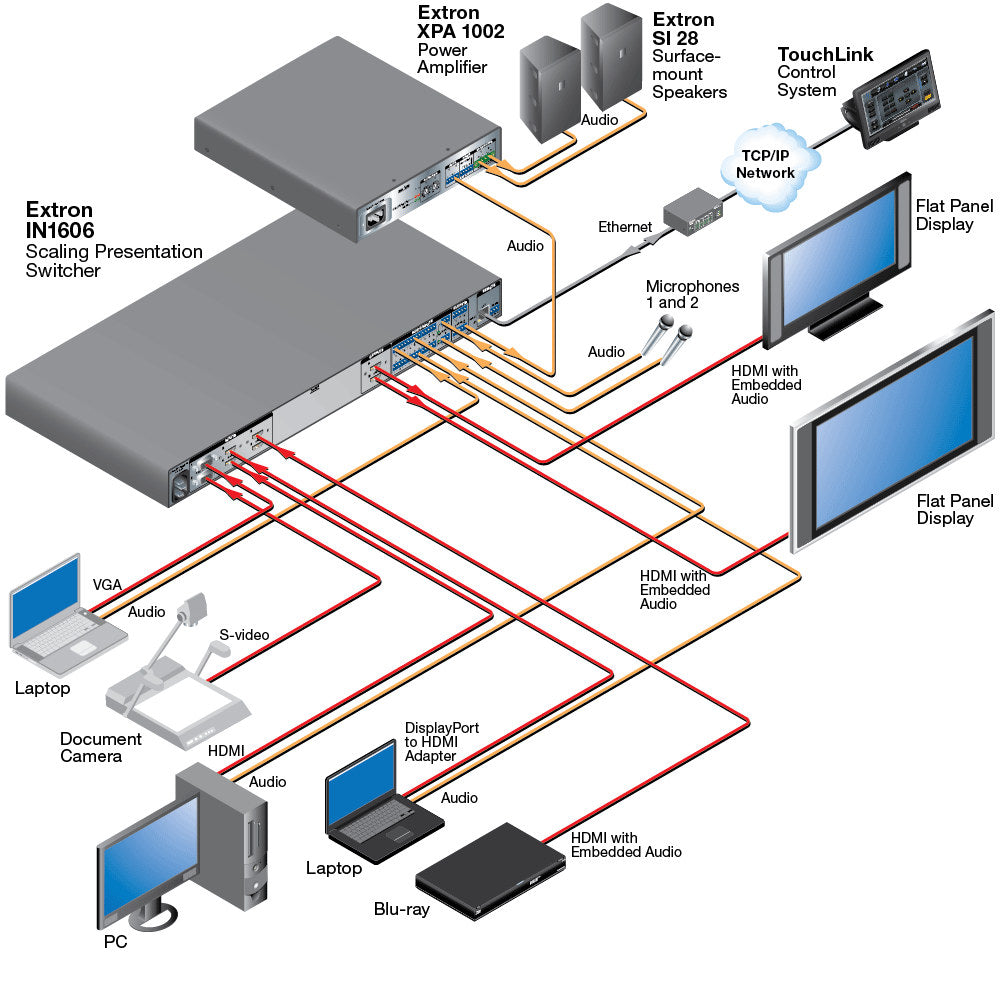

Diagram
