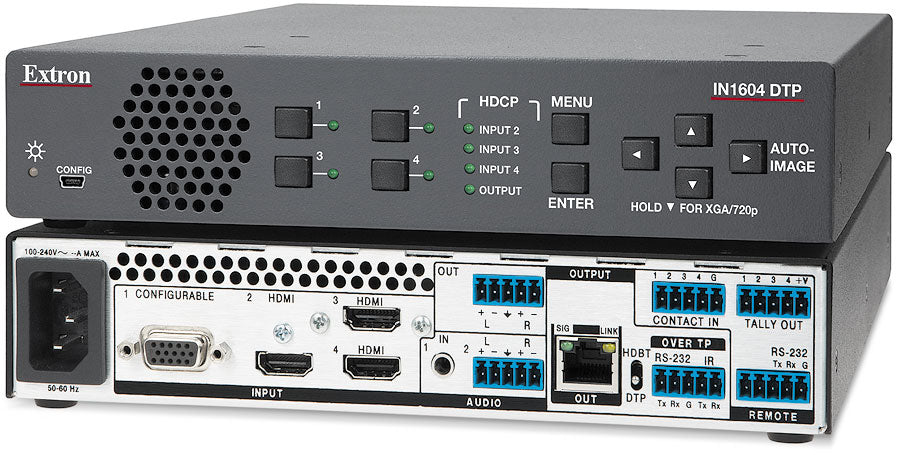

Extron IN1604 DTP (part number 60-1457-01) — a 4-input scaling presentation switcher that extends HDMI, video, and control over shielded twisted pair cable.

The IN1604 DTP takes in three HDMI/DVI sources plus one analog RGB/component/S-video/composite input, scales them to a common resolution, and pushes the result out over a single DTP or HDBaseT link to a remote receiver. Embedded audio, RS-232, and IR ride the same cable, so a lectern or credenza only needs one CATx run back to the rack. Extron EDID management keeps HDMI sources locked in and switching fast.

Key Capabilities

Scales 3 HDMI/DVI and 1 universal analog video input to a shared output resolution
Sends video, embedded audio, RS-232, and IR up to 330 ft over DTP twisted pair cable
Configurable output supports both native DTP and HDBaseT receivers
Delivers remote power to a connected DTP Rx endpoint over the same run
Half-rack 1U metal chassis with front-panel USB configuration port

Where It Is Used

Classrooms, huddle rooms, and lecterns that need a single-cable run to a wall- or ceiling-mounted display lean on the IN1604 DTP to carry video, audio, and control together, cutting down on conduit and connector count at the display end.

Specifications at a Glance

4 inputs: 3 HDMI/DVI, 1 universal analog video
Scales up to 1920x1200 and 2K (2048x1080)
DTP/HDBaseT output reaches up to 330 ft (100 m)
RS-232 and tally control built in
3-year Extron warranty, 7-year Everlast power supply warranty

Also referenced as Extron IN1604DTP, IN1604-DTP, part number 60145701.

Specifications

Part Number: 60-1457-01

Manufacturer: Extron

Model: IN1604 DTP

Condition: New

Standards: DVI 1.0, HDMI 1.3, HDCP 1.4

Decoder: 12 bit digital (3D-adaptive comb filter)

Analog sampling: 12 bits per color; 13.5 MHz standard (video), 170 MHz standard (RGB)

Digital pixel data bit depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)

Colors: 1 billion (10 bit processing)

Video Input Number/signal type: 1 analog RGBHV, component video (YUVi, YUVp, YUV-HD), S-video, or composite video; 3 HDMI/DVI

Video Input Connectors: 1 female 15-pin HD, 3 female HDMI type A

Video Input Equalization: Automatic

Input cable length: Up to 75' (22.9 m) for all supported input rates

Resolution range: 640x480 to 1920x1200 sampled pixel for pixel, NTSC, PAL, SECAM, 480i-1080p, and 2K (reduced blanking)

Video Input Impedance: 75 ohms

Horizontal frequency: 15 kHz to 100 kHz

Vertical frequency: 24 Hz to 75 Hz

Return loss: greater than 30 dB @ 5 MHz

DC offset (max. allowable): 0.5 V

Video Output Number/signal type: 1 DTP or HDBaseT, configurable

Video Output Connectors: 1 female RJ-45

HDMI peripheral device power: 200 mA

Digital bit depth: 8 or 10 bit, automatic

Input type: RGBHV, RGBS, RGsB, bi-level or tri-level component video

Input standards: NTSC 3.58, NTSC 4.43, PAL, SECAM, TMDS

Input level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p for tri-level sync; 0.3 Vp-p for bi-level sync, RGsB, or composite video

Sync Input impedance: Horizontal and vertical: 510 ohms

Max. input voltage: 5.0 Vp-p

DTP interconnect Termination standard: TIA/EIA-T568B

DTP 330 transmission distance: Up to 330' (100 m) using shielded twisted pair cable or XTP DTP 24 STP cable

DTP 230 transmission distance: Up to 230' (70 m) using shielded twisted pair cable or XTP DTP 24 STP cable

Cable requirements: Solid conductor, 24 AWG or better

Cable recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: less than 0.1% @ 1 kHz, 20 Hz to 20 kHz bandwidth at nominal level

Audio S/N: greater than 90 dB at maximum output (unweighted)

Crosstalk: -80 dB or better @ 1 kHz, fully loaded

Stereo channel separation: greater than 80 dB @ 1 kHz

Audio Input Number/signal type: 1 analog stereo unbalanced; 1 analog stereo balanced/unbalanced; 3 digital stereo de-embedded from HDMI (PCM only)

Audio Input Connectors: (1) 3.5 mm stereo jack; (1) 3.5 mm captive screw connector, 5 pole; 3 female HDMI type A

Audio Input Impedance: Analog inputs: greater than 10k ohms unbalanced, greater than 20k ohms balanced

Audio Input Nominal level: 3.5 mm stereo jack: +4 dBu; captive screw: +4 dBu or -10 dBV, adjustable

Audio Input Maximum level: Analog inputs: +15 dBu unbalanced, +21 dBu balanced

Audio CMRR: 70 dB @ 1 kHz

Input gain adjustment: -18 dB to +24 dB, adjustable per input, 1 dB steps, analog inputs only

Audio Output Number/signal type: 1 analog stereo or mono, balanced/unbalanced; 1 DTP (embedded digital audio and remote balanced/unbalanced analog) or HDBaseT (embedded digital only)

Audio Output Connectors: (1) 3.5 mm captive screw connector, 5 pole; 1 female RJ-45

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Gain error: ±0.5 dB channel to channel

Audio Output Maximum level (Hi-Z): greater than +15 dBu unbalanced, greater than +21 dBu balanced

Output volume range: 0 to -100 dB in 1 dB steps

Serial control port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 5 pole (rear panel, uses 3 poles)

Baud rate and protocol: 9600, 8 data bits, 1 stop bit, no parity

Serial control pin configuration: 1, 2 = unused, 3 = Tx, 4 = Rx, 5 = Gnd

"Over TP" pass-through output: RS-232 via (1) 3.5 mm captive screw connector, 5 pole (shared with IR port)

IR pass-through control port: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

Contact closure: 4 contact closure inputs on (1) 3.5 mm captive screw connector, 5 pole

Tally output: 4 tally outputs on (1) 3.5 mm captive screw connector, 5 pole

USB control port: 1 front panel female mini USB B

USB standards: USB 2.0, high speed

Program control: Extron PCS configuration software for Windows; Extron Simple Instruction Set (SIS)

Power supply: Internal; Input: 100-240 VAC, 50-60 Hz

Power consumption (full power): 25.0 watts

Power consumption (power save mode): 9.0 watts

Remote power capability: Supports one DTP Rx endpoint device (not available in HDBaseT mode)

Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Fan, air flows front to rear, vents on front and rear

Thermal dissipation (full power): 67.0 BTU/hr

Thermal dissipation (power save mode): 28.0 BTU/hr

Mounting: Rack mount with optional rack shelf; furniture mount with optional under-desk or through-desk kit

Enclosure type: Metal

Enclosure dimensions: 1.75" H x 8.75" W x 8.5" D (1U high, half rack wide) (depth excludes connectors)

Product weight: 2.1 lbs (1.0 kg)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor
