Extron HSA 400 (part number 60-700-1J) — Universal multi-region AC outlet with a brushed aluminum top, in Extron's tilt-up Hideaway enclosure.

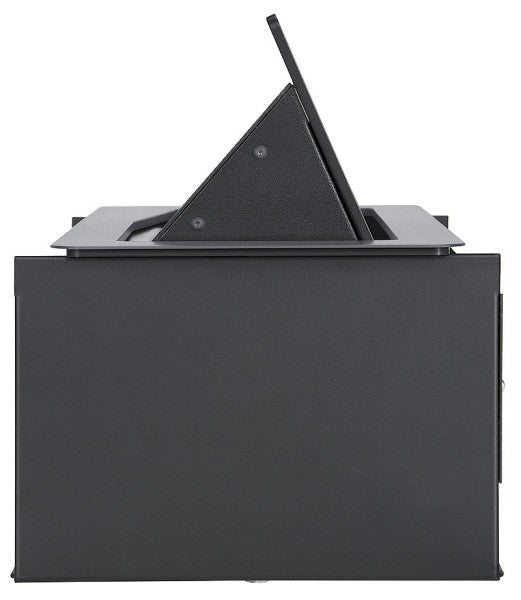

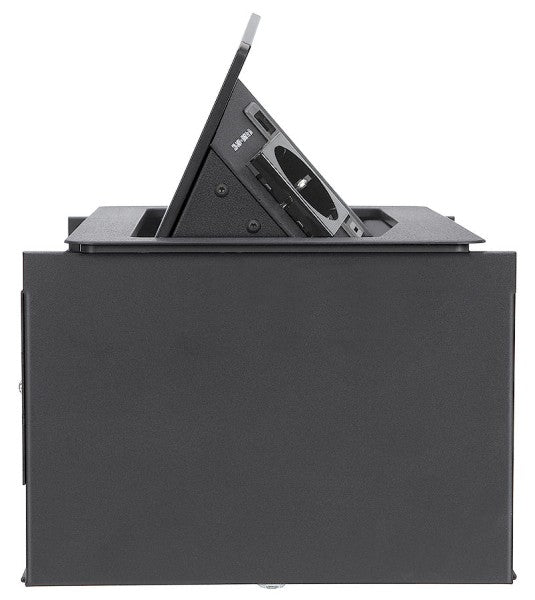

When one furniture specification has to ship to several countries, the Universal receptacle removes the need for a separate part number per market. Extron documents this multi-region outlet as compatible with Europlug, British, Indian, Danish and Italian plug types. The rest is standard HSA 400: an 8.4 lb metal enclosure routed into the tabletop, a latching brushed aluminum top plate, and a gas lift that raises the connector panel to 49 degrees on a press.

Key Capabilities

• Multi-region AC receptacle for Europlug, British, Indian, Danish and Italian plugs

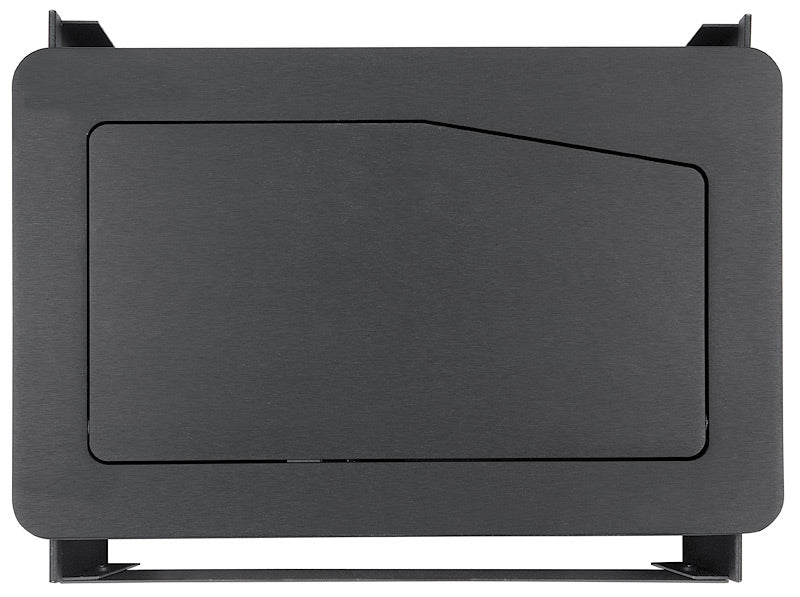

• Brushed aluminum top plate that closes nearly flush with the furniture
• Four single-space or two double-space Extron AAP openings

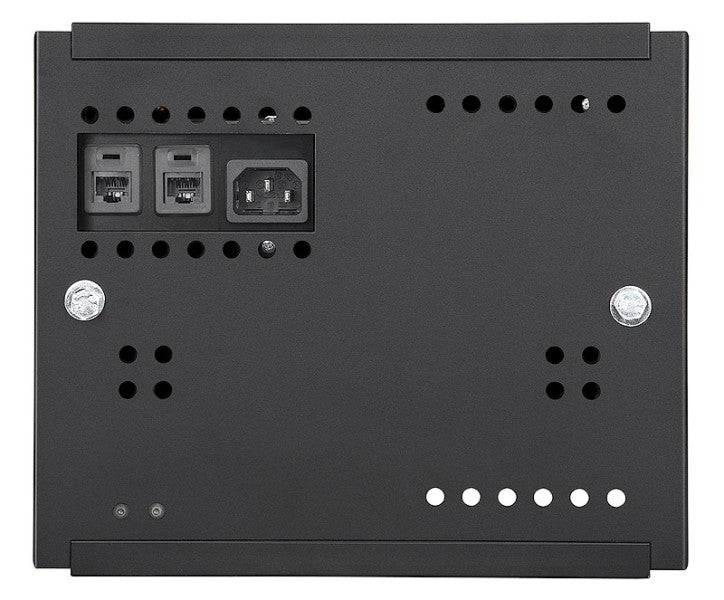

• Two CAT 6 RJ-45 network, data or phone jacks, terminated to TIA/EIA T568B
• Gas lift rated by Extron at 100,000 open and close cycles
• Fits work surfaces 0.38 in to 1.75 in thick; 8.4 lb metal build

Where It Is Used

Multinational office fit-outs, hotel and conference-center meeting rooms, standardized university lecture-hall furniture and global corporate rollouts. The Universal outlet keeps a single table specification usable across regions without re-engineering the power path.

Specifications at a Glance

• Surface cutout: 9.64 in W x 5.95 in D
• Tilt plate: 8.16 in W x 4.48 in D
• Weight: 8.4 lbs (3.8 kg)
• Compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607001J.
