Extron HSA 400 Hideaway Enclosure Swiss Brushed Aluminum 60-700-1H
Extron HSA 400 Hideaway Enclosure Swiss Brushed Aluminum 60-700-1H
Extron HSA 400 Hideaway Surface Access Enclosure
- • Tilt-up metal enclosure mounts flush into tables 0.38 in to 1.75 in thick
- • Holds four single-space or two double-space Extron AAP adapter plates
- • One unswitched Swiss AC outlet plus two CAT 6 RJ-45 jacks
- • Brushed aluminum top plate pivots to a 49-degree working angle
- • Gas lift rated for 100,000 open and close cycles
- • Requires a 9.64 in x 5.95 in surface cutout; weighs 8.4 lbs
- • Backed by a 3-year Extron parts and labor warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron HSA 400 (part number 60-700-1H) — Swiss AC outlet with a brushed aluminum top plate, in Extron's Hideaway tilt-up surface access enclosure.

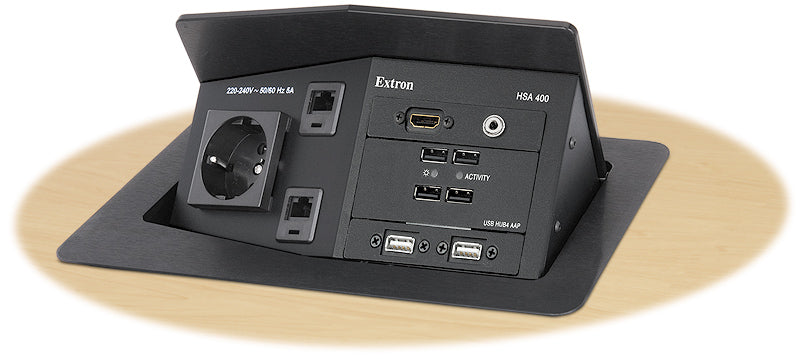

60-700-1H is the brushed aluminum, Swiss-receptacle build of the HSA 400. The enclosure is metal, sized for a 9.64 in by 5.95 in cutout, and clamped to the underside of the furniture with a steel clamshell. When closed, the top plate sits nearly level with the table. Pressing it releases a mechanical latch and a gas lift raises the connector panel to 49 degrees, exposing an AC outlet, two RJ-45 jacks and the installed AAP connectors.
Key Capabilities
- One unswitched Swiss-pattern AC receptacle

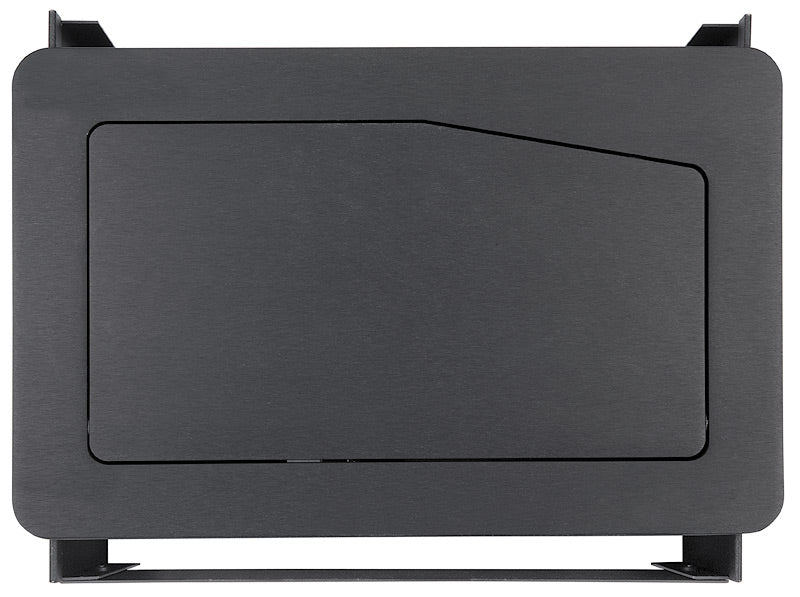

- Brushed aluminum top plate with a rectangular bezel
- Four single-space or two double-space Extron AAP positions
- Two CAT 6 RJ-45 jacks terminated to the TIA/EIA T568B standard
- Accepts work surfaces from 0.38 in through 1.75 in thick
- Three-year Extron parts and labor warranty
Where It Is Used
Swiss boardrooms, banking and legal meeting rooms, pharmaceutical and research campus conference suites, university lecture halls and control-room consoles. The brushed aluminum plate is the common pick for light-toned or metal-trimmed conference furniture.
Specifications at a Glance
- Surface cutout: 9.64 in W x 5.95 in D
- Top plate, outer rim: 10.11 in W x 6.42 in D
- Weight: 8.4 lbs (3.8 kg)
- Compliance: CE, RoHS, WEEE
- Warranty: 3 years parts and labor
Also referenced as Extron HSA400, HSA-400, part number 607001H.
