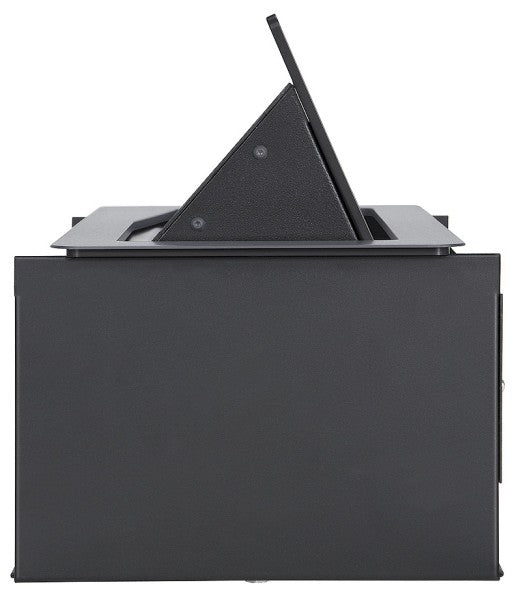

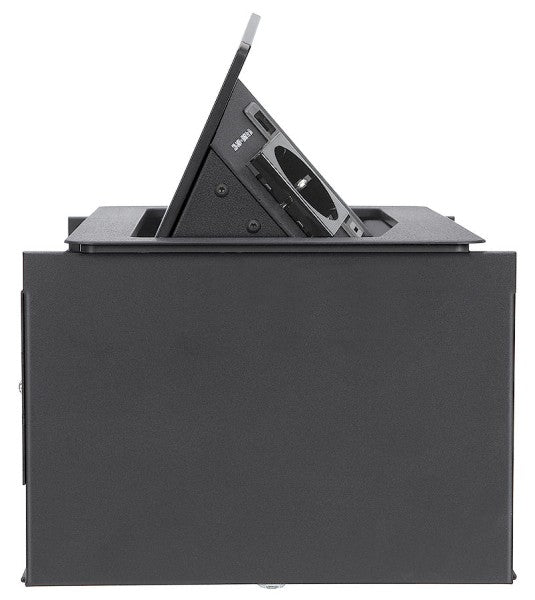

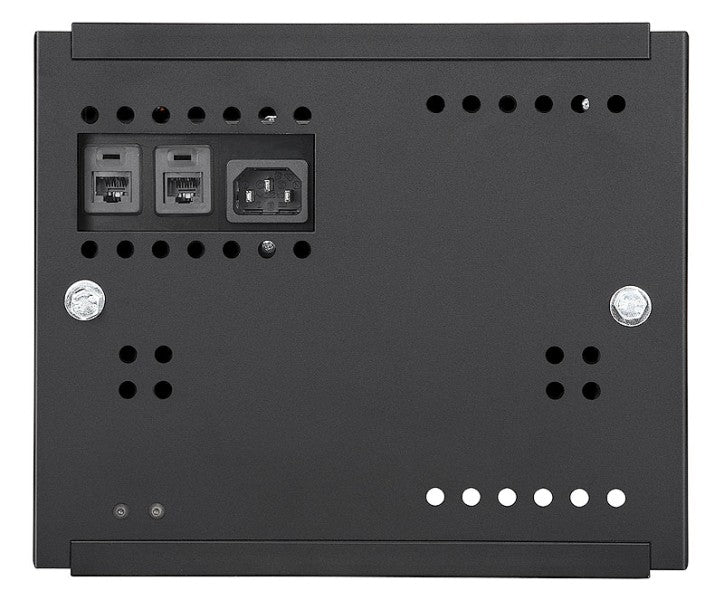

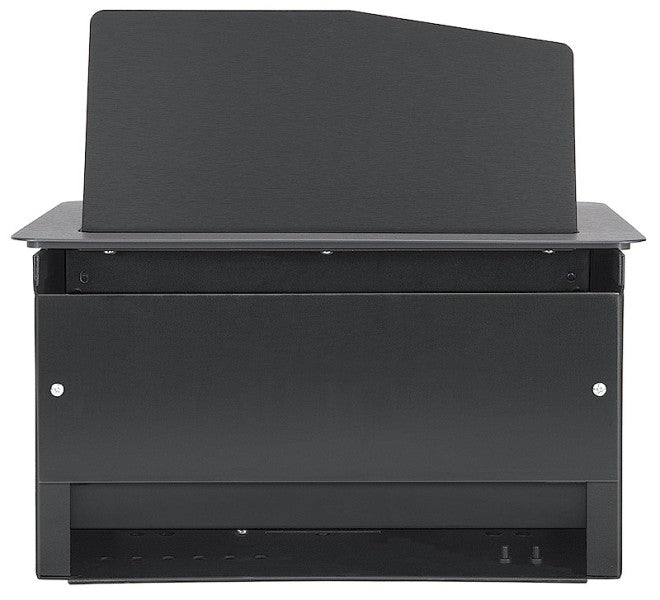

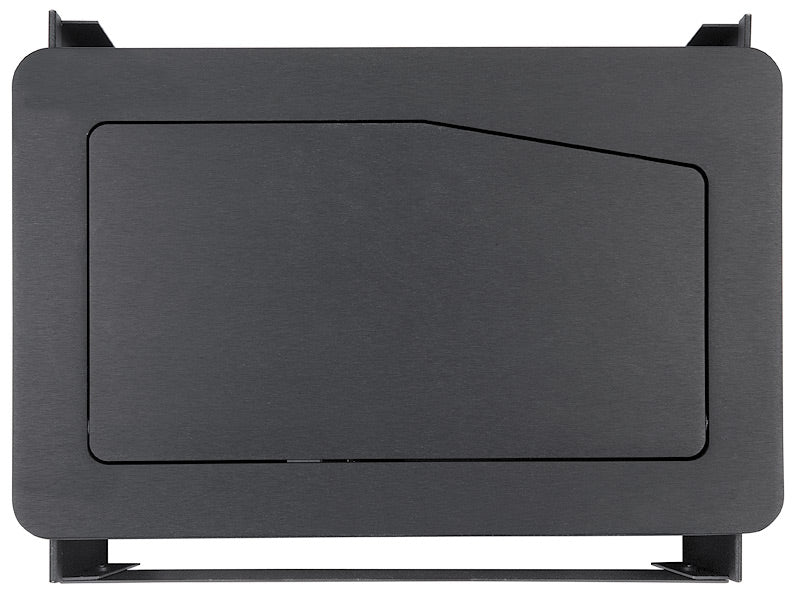

Extron HSA 400 (part number 60-700-1G) — Indian AC outlet, brushed aluminum top plate, in Extron's tilt-up Hideaway surface access enclosure.

Meeting-room tables rarely have a good place to put connectors. The HSA 400 answers that by moving them below the surface: the metal enclosure is routed into the tabletop, and an AC receptacle, two network jacks and up to four AAP connector plates live inside it. Press the brushed aluminum lid and a latch releases, letting a gas lift raise the panel to a 49-degree working angle. Extron rates that lift at 100,000 cycles. This order code supplies the Indian receptacle.

Key Capabilities

• One unswitched AC receptacle in the Indian outlet configuration
• Room for four single-space or two double-space Extron AAP plates
• Two CAT 6 RJ-45 jacks wired to TIA/EIA T568B for data, network or phone
• Gas lift rated at 100,000 opening and closing cycles
• Mounts into tables and podiums 0.38 in to 1.75 in thick
• CE, RoHS and WEEE compliant, with a 3-year Extron warranty

Where It Is Used

Indian corporate boardrooms, IT campus meeting rooms, engineering college lecture halls, hotel conference facilities and control-room furniture. Specify it wherever a fixed table must supply mains power and structured cabling to a seated user but stay visually clean.

Specifications at a Glance

• Surface cutout: 9.64 in W x 5.95 in D
• Clamshell: A = 5.17 in, B = 9.17 in, C = 7.77 in
• Weight: 8.4 lbs (3.8 kg)
• Gas lift MTBF: 100,000 cycles
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607001G.
