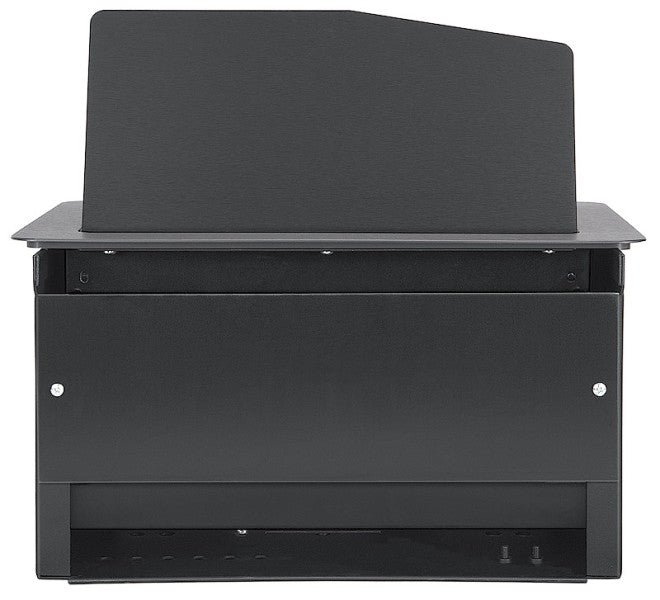

Extron HSA 400 (part number 60-700-1F) — Australian AC outlet with a brushed aluminum finish, in Extron's compact Hideaway tilt-up enclosure.

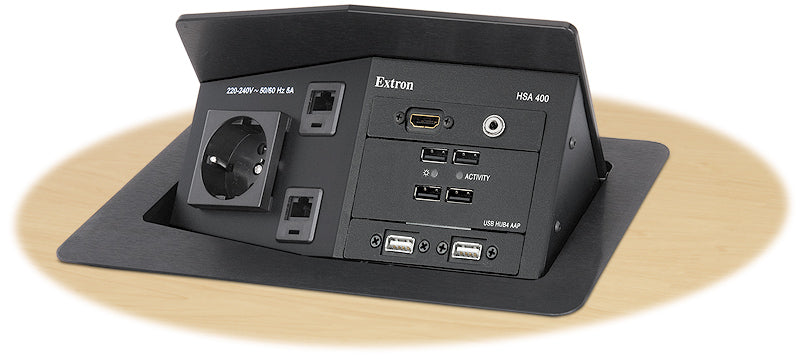

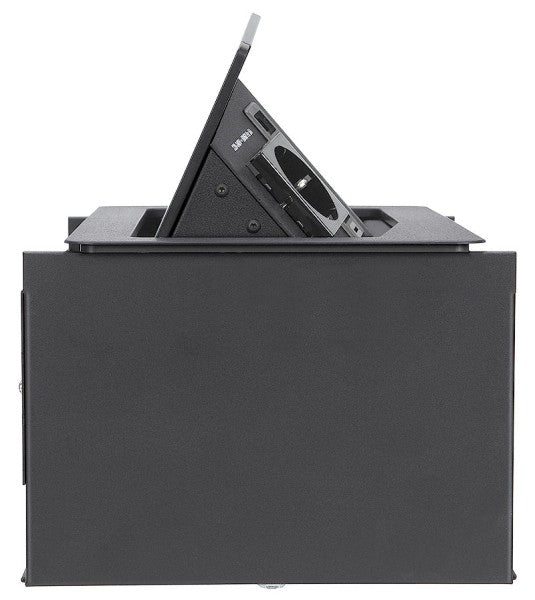

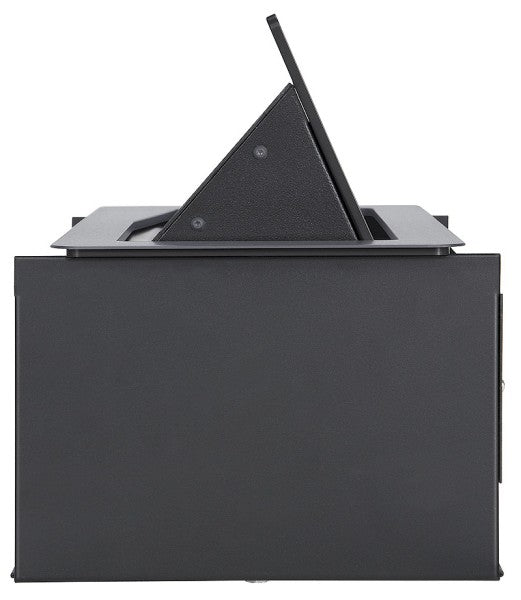

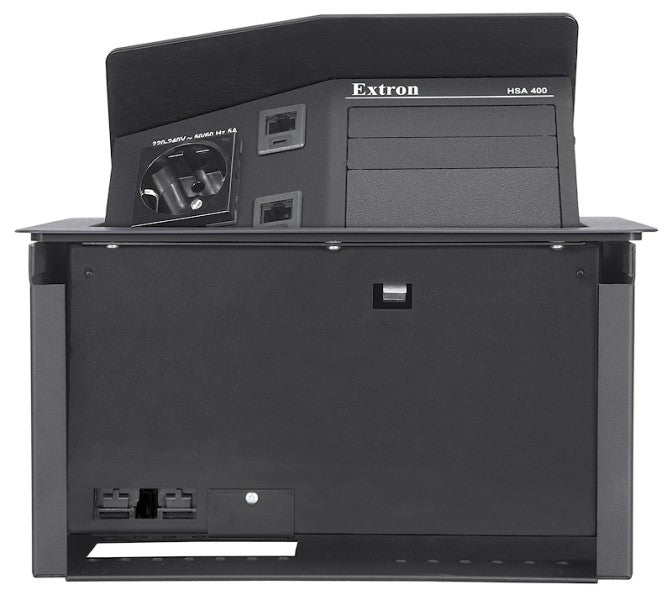

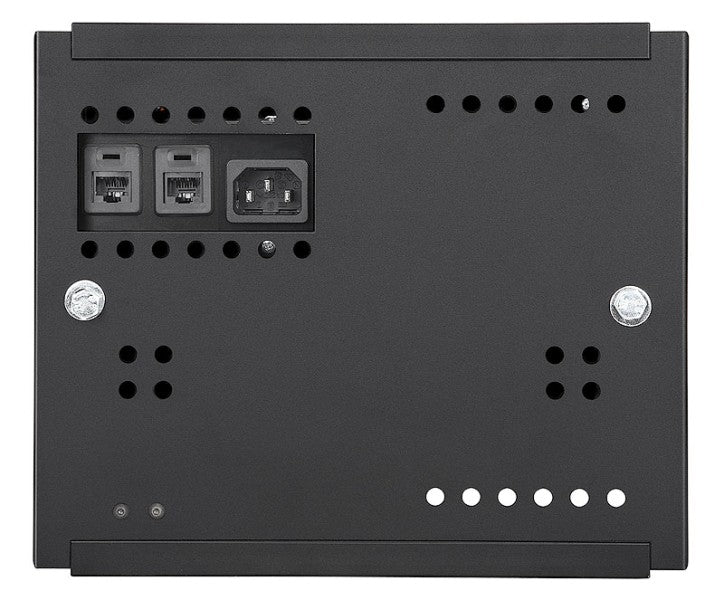

Cut the 9.64 in by 5.95 in opening, drop the metal enclosure in, and bolt the clamshell underneath. From that point the HSA 400 keeps an AC outlet, two CAT 6 RJ-45 jacks and up to four AAP-mounted AV connectors below the tabletop. A press on the brushed aluminum plate releases a mechanical latch and a gas lift raises the connector panel to 49 degrees. Closing it returns the table to a clean surface. Part 60-700-1F is the Australian-outlet version.

Key Capabilities

• One unswitched Australian-pattern AC receptacle
• Two CAT 6 RJ-45 network, data or phone jacks, terminated to TIA/EIA T568B
• Faceplate opening for four single-space or two double-space Extron AAPs

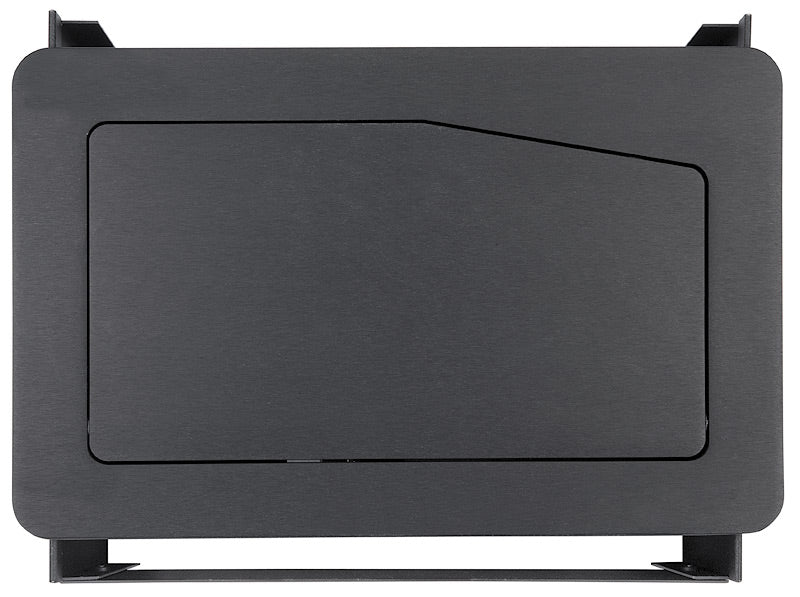

• Brushed aluminum top plate with a rectangular bezel
• Installs in work surfaces from 0.38 in to 1.75 in thick
• Gas lift rated by Extron at 100,000 open and close cycles

Where It Is Used

Australian and New Zealand boardrooms, university lecture theatres, TAFE and corporate training rooms, council chambers and control-room consoles. The brushed finish is the usual choice where table trim, legs or edging are already aluminum or stainless.

Specifications at a Glance

• Surface cutout: 9.64 in W x 5.95 in D
• Top plate, outer rim: 10.11 in W x 6.42 in D
• Weight: 8.4 lbs (3.8 kg)
• Compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607001F.
