Extron HSA 400 (part number 60-700-1E) — French AC outlet paired with a brushed aluminum top plate in Extron's tilt-up Hideaway enclosure.

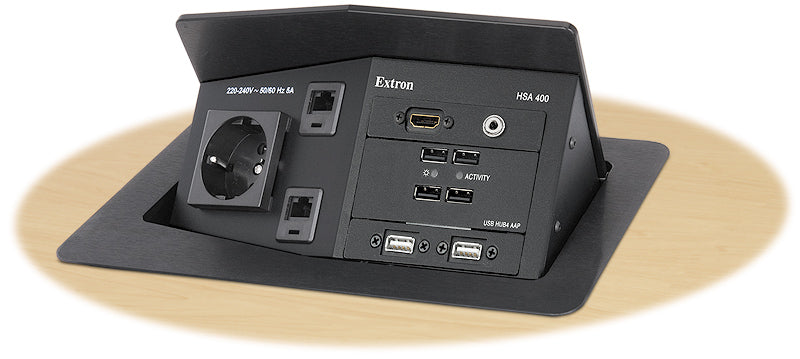

The HSA 400 is furniture hardware first and AV hardware second: it is routed into a tabletop and bolted down from beneath, then loaded with whatever connectivity the room needs. Below the surface sit one AC receptacle, two RJ-45 jacks and an opening sized for four single-space Extron AAP plates. Press the brushed aluminum lid, the latch releases, and a gas lift brings the connector panel up to a 49-degree angle. This code supplies the French receptacle.

Key Capabilities

• One unswitched AC receptacle in the French outlet configuration
• Four single-space or two double-space Extron AAP openings on the faceplate
• Two CAT 6 RJ-45 jacks for network, data or telephone, wired to TIA/EIA T568B

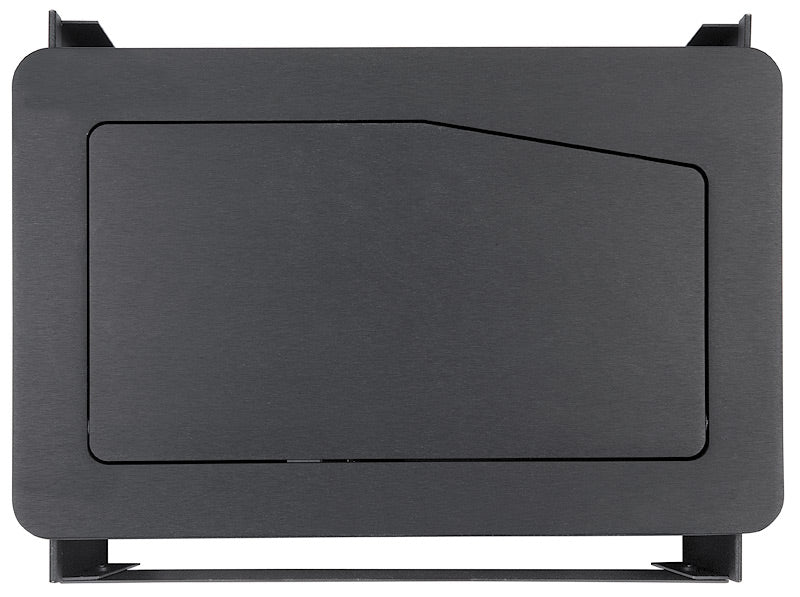

• Brushed aluminum top plate, 10.11 in by 6.42 in at the outer rim
• Gas lift rated at 100,000 opening and closing cycles
• Mounts into surfaces measuring 0.38 in to 1.75 in thick

Where It Is Used

French corporate boardrooms, grandes ecoles and university lecture halls, municipal council chambers, hotel conference rooms and technical training suites. It fits any fixed table that must hand a seated user power, a network drop and AV connections on demand.

Specifications at a Glance

• Surface cutout: 9.64 in W x 5.95 in D
• Tilt plate: 8.16 in W x 4.48 in D
• Weight: 8.4 lbs (3.8 kg)
• Compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607001E.
