Extron HSA 400 (part number 60-700-1D) — Central European AC outlet with a brushed aluminum top, in Extron's tilt-up Hideaway surface access enclosure.

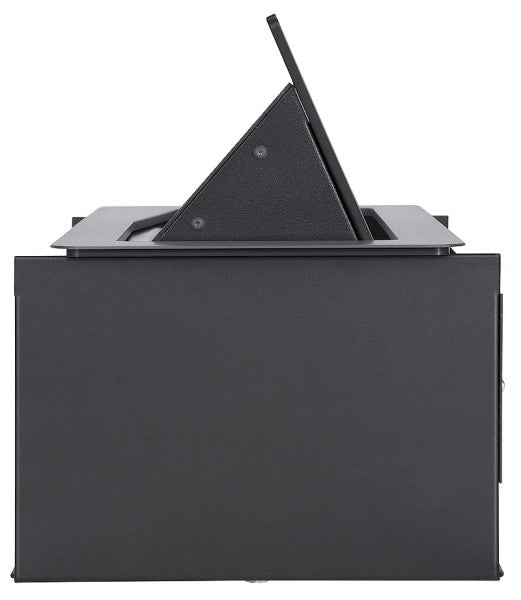

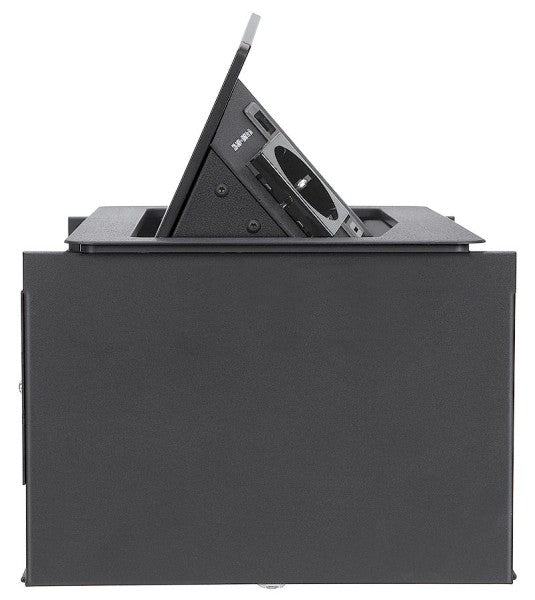

Functionally identical to the black anodized EU version, 60-700-1D simply swaps the top plate to brushed aluminum. The enclosure routes into a conference table or lectern and holds an AC receptacle, two network jacks and up to four AAP connector plates below the work surface. A press on the top plate releases the latch; the gas lift then raises the panel to a 49-degree angle. At 8.4 lbs it is light enough for a single installer to set once the opening is cut.

Key Capabilities

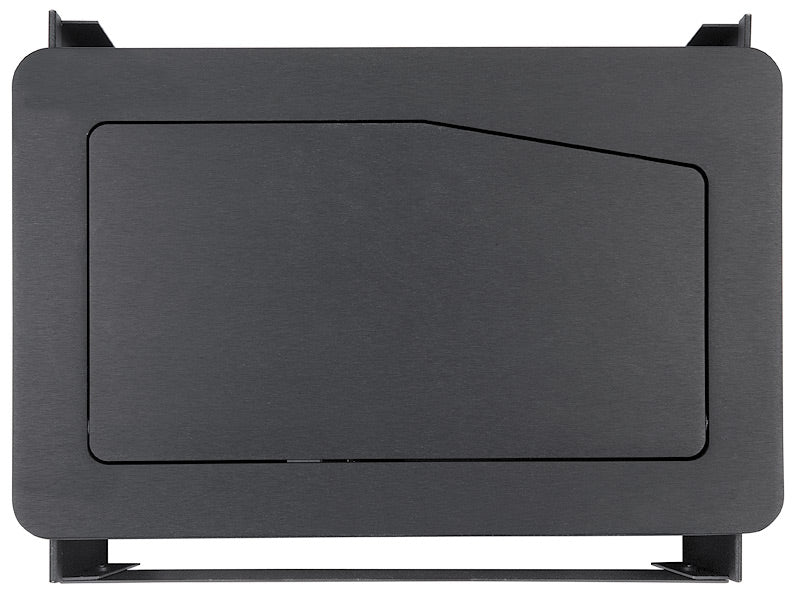

• Brushed aluminum top plate, nearly flush with the furniture when closed
• One unswitched Central European AC receptacle
• Four single-space or two double-space Extron AAP positions

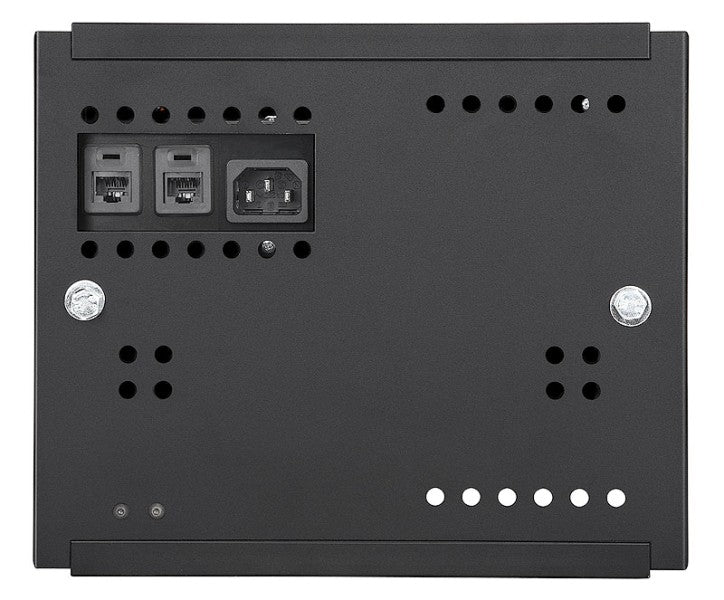

• Two CAT 6 RJ-45 network, data or phone jacks, terminated to TIA/EIA T568B
• Removable IEC power cord for a 220-250 V, 50-60 Hz supply
• Gas lift rated at 100,000 open and close cycles

Where It Is Used

European boardrooms and conference tables, lecture-hall podiums, corporate training rooms, huddle spaces and control-room consoles. Choose the brushed aluminum plate for light wood, glass or metal-trimmed furniture where a black plate would read as a visual interruption.

Specifications at a Glance

• Surface cutout: 9.64 in W x 5.95 in D
• Clamshell: A = 5.17 in, B = 9.17 in, C = 7.77 in
• Weight: 8.4 lbs (3.8 kg)
• Compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607001D.
