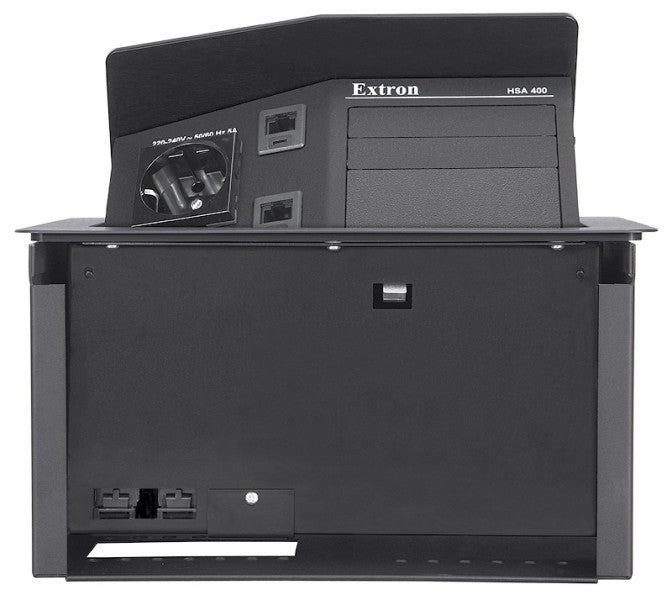

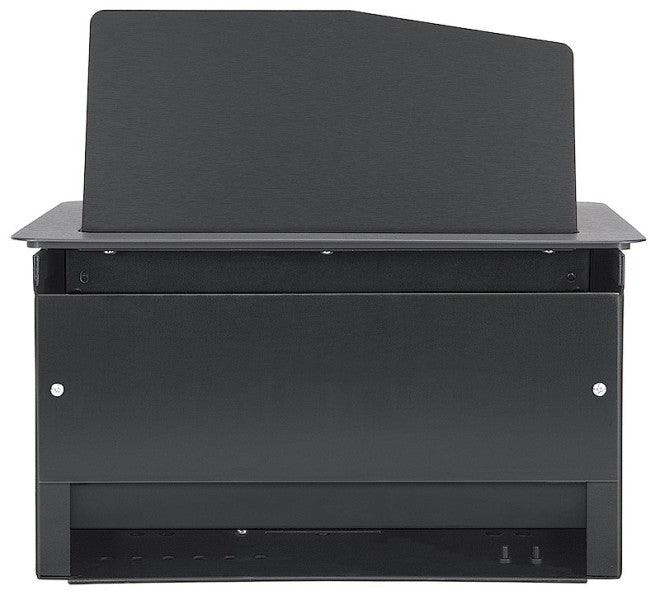

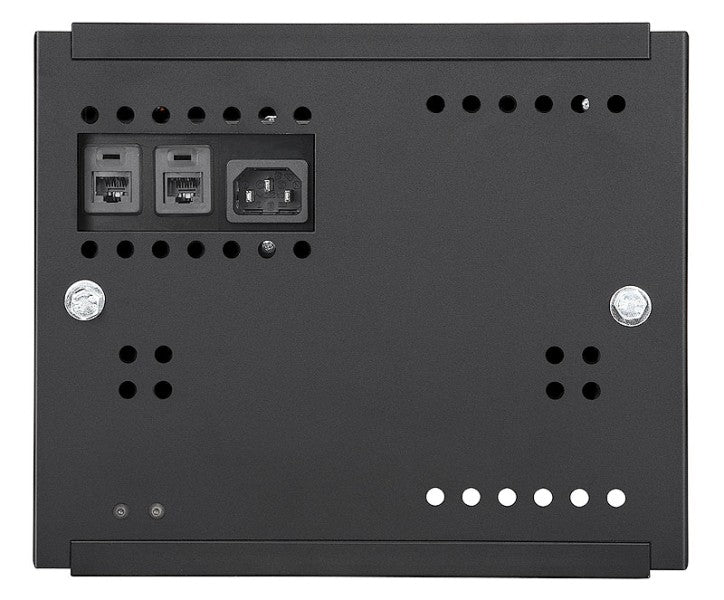

Extron HSA 400 (part number 60-700-0H) — the Swiss-outlet, black anodized configuration of the Extron Hideaway tilt-up surface access enclosure.

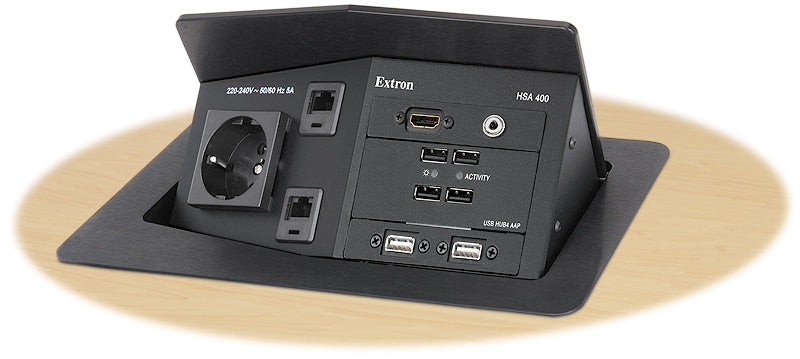

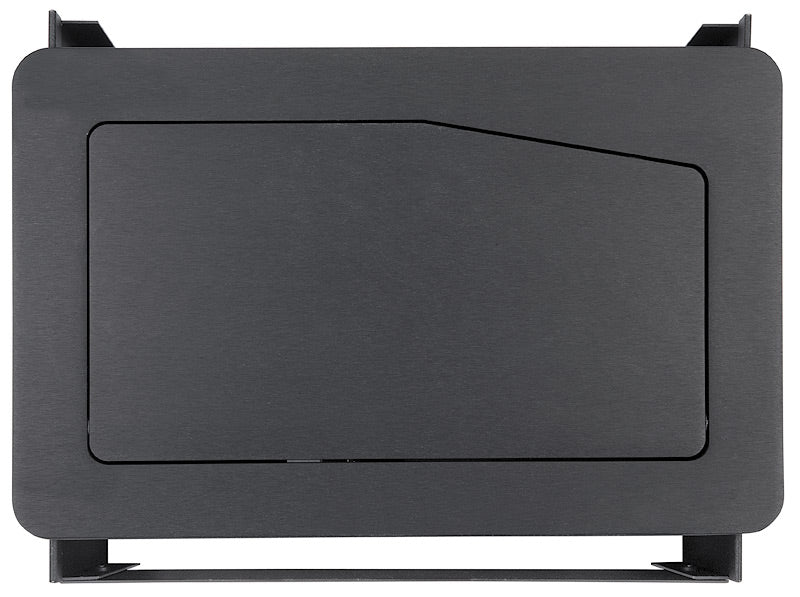

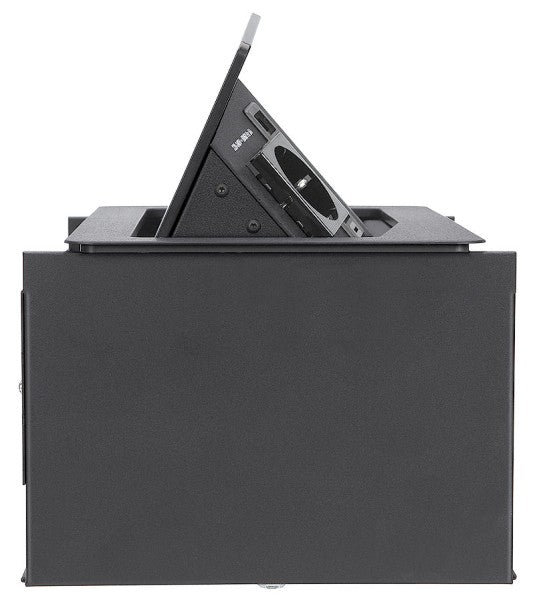

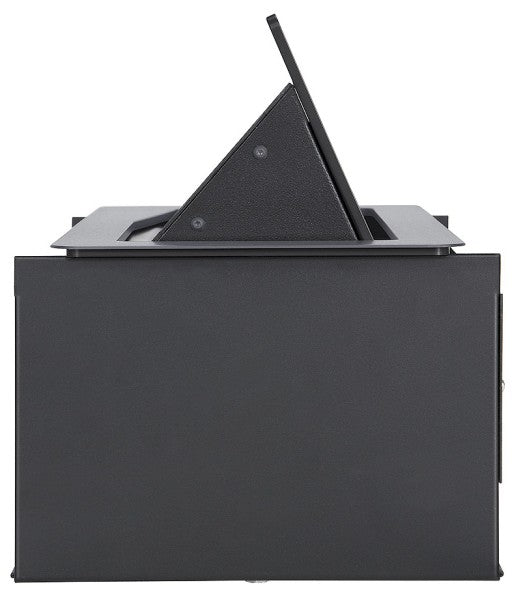

Cut a 9.64 in by 5.95 in opening in a table and this metal enclosure drops in, bolting to a clamshell underneath. In the closed position the anodized top plate sits nearly level with the furniture. Press it, the mechanical latch lets go, and a gas lift rotates the connector panel up to 49 degrees so an AC outlet, two network jacks and the installed AAP connectors come into reach. This build is fitted with the Swiss AC receptacle.

Key Capabilities

• Room for four single-space or two double-space Extron AAP plates
• One unswitched Swiss-pattern AC receptacle
• Two CAT 6 RJ-45 connectors terminated per TIA/EIA T568B
• Gas lift rated for 100,000 opening and closing cycles
• Suits work surfaces measuring 0.38 in to 1.75 in thick
• Removable IEC power cord on international versions

Where It Is Used

Swiss corporate boardrooms, banking and finance meeting rooms, university lecture halls, hospital conference suites and control-room desks. The enclosure suits fixed furniture where an integrator must deliver power, data and AV connections without permanent surface clutter.

Specifications at a Glance

• Surface cutout: 9.64 in W x 5.95 in D
• Top plate, outer rim: 10.11 in W x 6.42 in D
• Weight: 8.4 lbs (3.8 kg)
• Gas lift MTBF: 100,000 cycles
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607000H.
