Extron HSA 400 (part number 60-700-0G) — Extron's tilt-up Hideaway surface access enclosure supplied with an Indian AC outlet and a black anodized top plate.

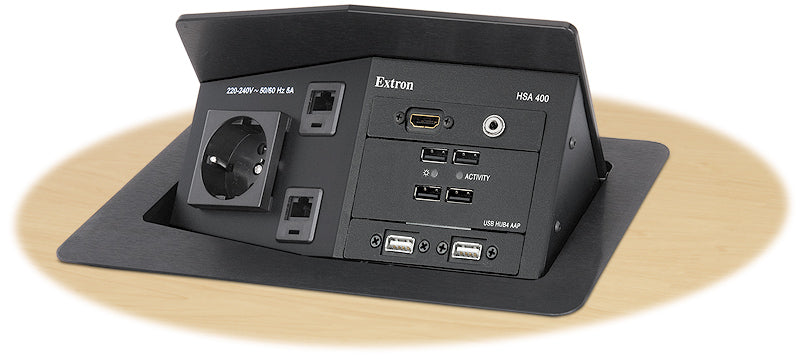

The HSA 400 solves a recurring problem in meeting-room furniture: connectors have to be reachable, but nobody wants them on display. Routed into the tabletop, this metal enclosure keeps an AC receptacle, two RJ-45 jacks and up to four AAP connector plates below the surface. Pressing the top plate trips a latch and a gas lift raises the panel to a 49-degree working angle. Part 60-700-0G is the Indian-outlet, black anodized build.

Key Capabilities

• Accepts four single-space or two double-space Extron AAP adapter plates
• One unswitched AC receptacle in the Indian outlet configuration
• Two CAT 6 RJ-45 jacks for data, network or phone, wired to TIA/EIA T568B
• Gas lift with a 100,000-cycle rating from Extron
• Works in surfaces from 0.38 in up to 1.75 in thick
• Three-year Extron parts and labor warranty

Where It Is Used

Boardroom and conference tables, classroom and lecture-hall podiums, corporate training rooms, and command or control-room consoles. Anywhere a fixed table has to deliver mains power plus structured cabling and AV connectivity to a seated user, and then hide it all again.

Specifications at a Glance

• Surface cutout: 9.64 in W x 5.95 in D
• Clamshell: A = 5.17 in, B = 9.17 in, C = 7.77 in
• Weight: 8.4 lbs (3.8 kg)
• Compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607000G.
