Extron HSA 400 (part number 60-700-0F) — Australian AC outlet, black anodized top, in Extron's compact tilt-up Hideaway surface access enclosure.

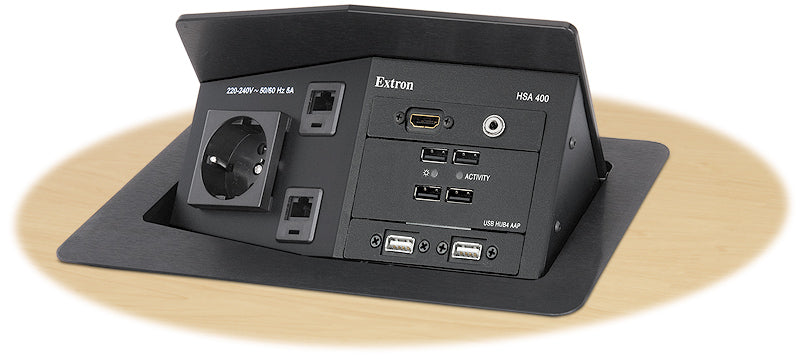

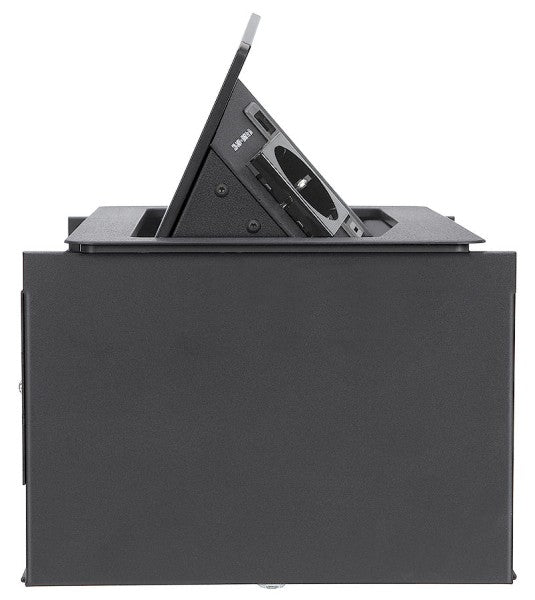

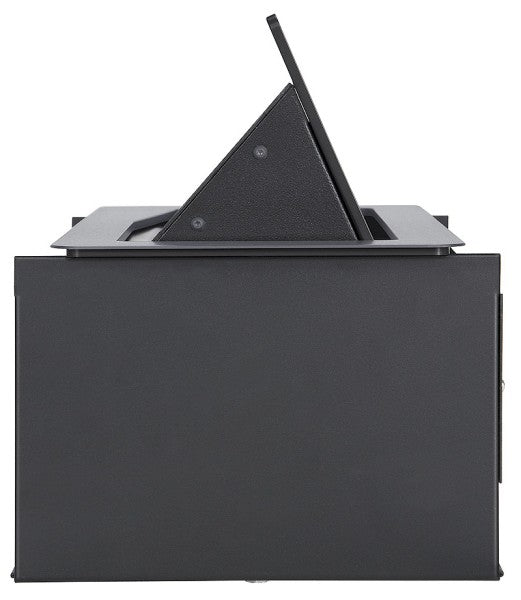

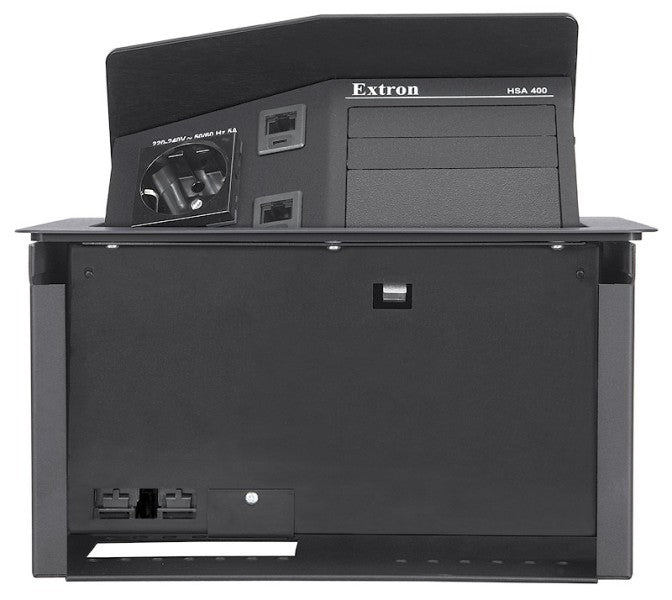

Built for furniture integration, the HSA 400 is routed into a tabletop or podium so that an AC outlet, two network jacks and up to four AAP-mounted AV connectors sit hidden until someone needs them. A press on the top plate releases the latch, and a pneumatic lift tips the connector panel up to 49 degrees. The whole assembly is metal, clamped from below by a steel clamshell. This order code supplies the Australian receptacle and the black anodized surface.

Key Capabilities

• Faceplate space for four single-space or two double-space Extron AAP plates
• One unswitched Australian-pattern AC receptacle
• Two CAT 6 RJ-45 network, data or telephone jacks, terminated to TIA/EIA T568B
• Pneumatic gas lift rated at 100,000 open and close cycles
• Mounts into work surfaces between 0.38 in and 1.75 in thick
• Colored RJ-45 bezels and icon labels included for port coding

Where It Is Used

Corporate boardrooms, university lecture theatres, training suites, government meeting rooms and broadcast or control-room consoles throughout Australia and New Zealand. It suits any table where connectivity has to be available on demand but invisible the rest of the time.

Specifications at a Glance

• Surface cutout: 9.64 in W x 5.95 in D
• Top plate, outer rim: 10.11 in W x 6.42 in D
• Weight: 8.4 lbs (3.8 kg)
• Compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607000F.
