Extron HSA 400 (part number 60-700-0D) — the Central Europe, black anodized build of Extron's tilt-up Hideaway surface access enclosure.

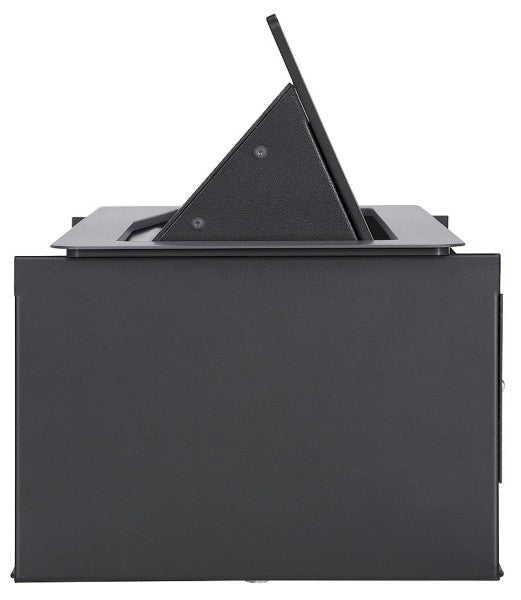

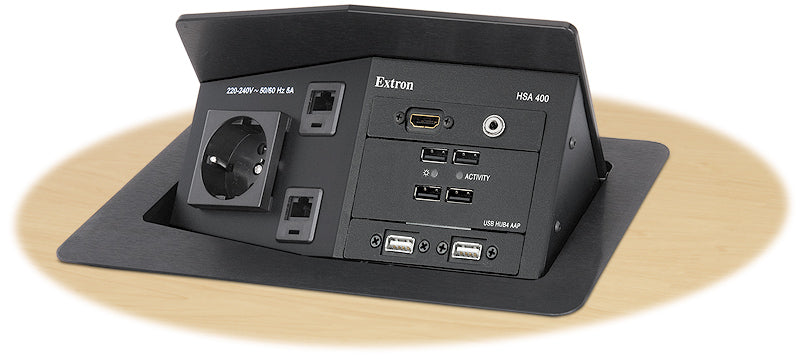

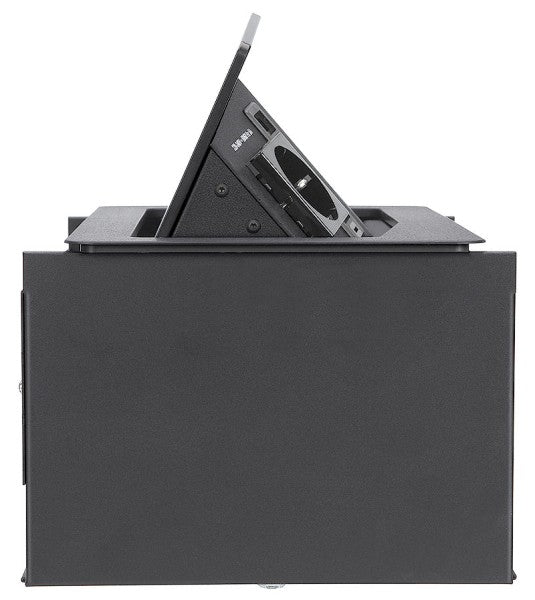

Drop this metal enclosure into a conference table, lectern or desk and the AV connectors stop being visible clutter. The top plate sits nearly flush with the work surface; a press on that plate trips a mechanical latch and a gas lift walks the connector panel up to a 49-degree angle, where cables are easy to reach. Close it and everything disappears again. This particular build ships with a Central European AC receptacle and a black anodized top, so it drops into EU-standard rooms without an adapter.

Key Capabilities

• Faceplate opening accepts four single-space or two double-space Extron AAP plates
• One unswitched AC receptacle wired for Central European plugs
• Two CAT 6 RJ-45 jacks for network, data or telephone runs, terminated to TIA/EIA T568B
• Gas lift rated by Extron at 100,000 open and close cycles
• Fits surfaces from 0.38 in to 1.75 in thick and clamps from below with a steel clamshell
• Colored RJ-45 bezel inserts and icon labels are included for port identification

Where It Is Used

Boardroom and conference tables, training-room desks, lecture-hall podiums, huddle spaces and control-room consoles across Europe — anywhere an integrator needs power, data and AV connectors within arm's reach of a seated user, but out of sight when the room is not in session.

Specifications at a Glance

• Surface cutout: 9.64 in W x 5.95 in D
• Top plate, outer rim: 10.11 in W x 6.42 in D
• Weight: 8.4 lbs (3.8 kg)
• Compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607000D.
