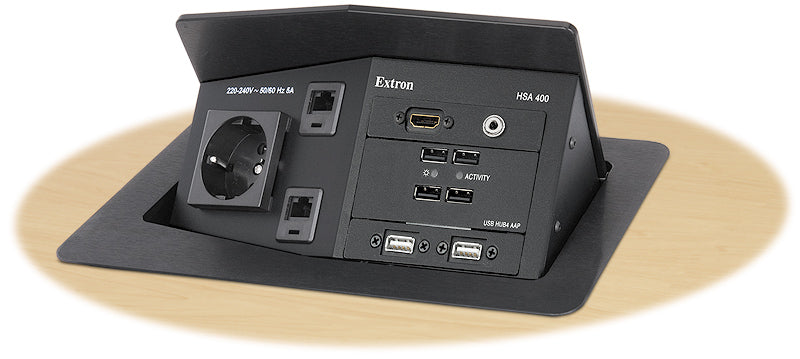

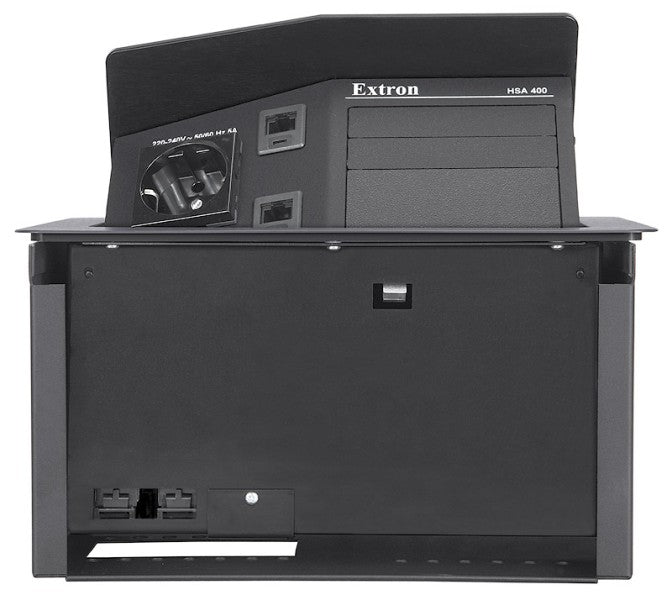

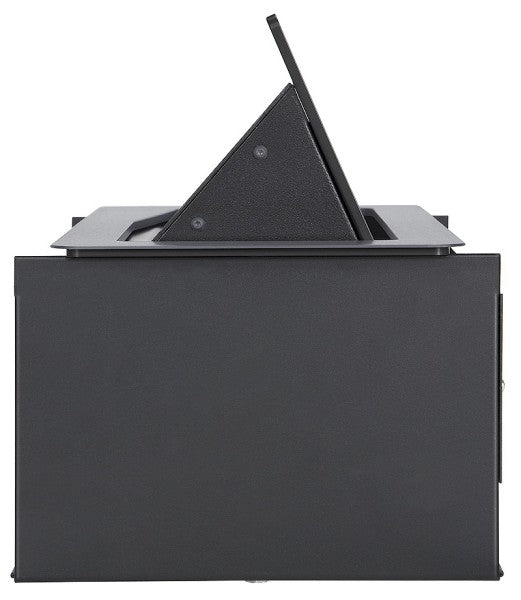

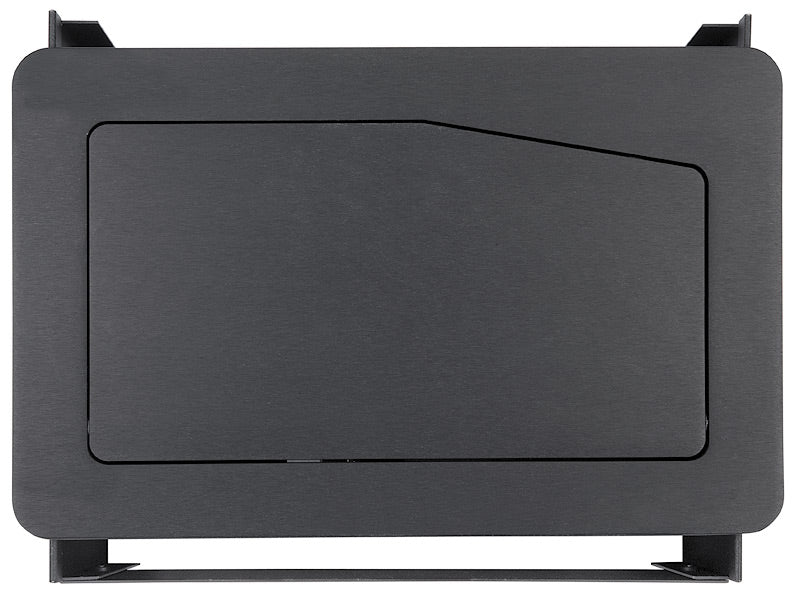

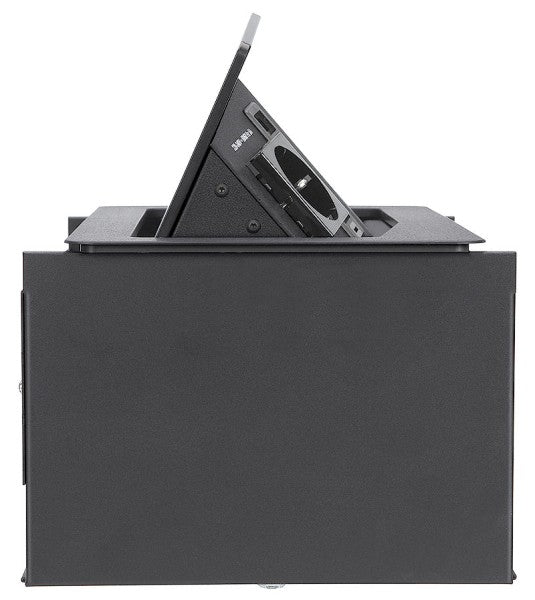

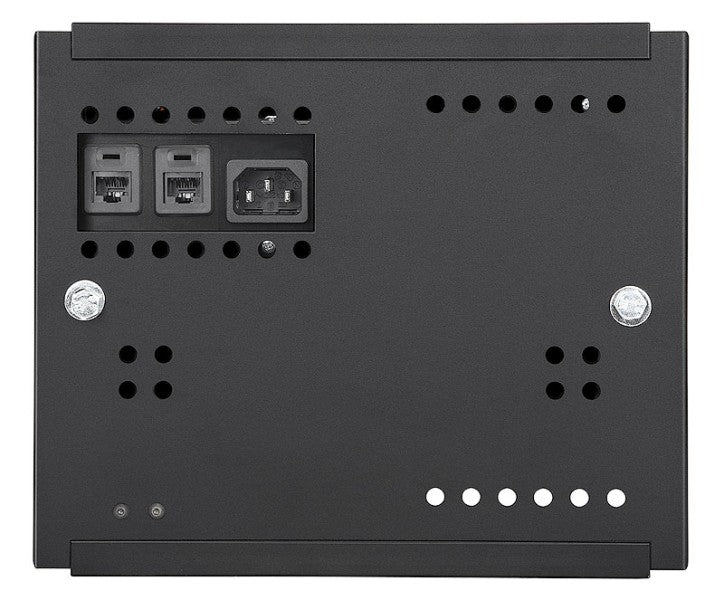

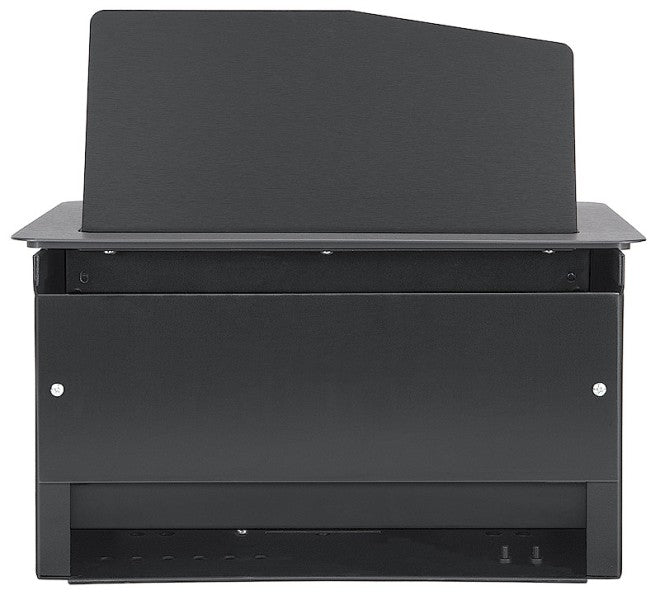

Extron HSA 400 (part number 60-700-0C) — the Israel black anodized build of the Hideaway surface access enclosure, fitted with an Israeli AC receptacle.

Extron produced the HSA 400 with discrete AC outlets for individual markets, and this is the Israeli variant. Like all international builds it uses the wider chassis, with a 10.11 inch top plate and a 9.64 inch surface cutout. In use it behaves exactly as the rest of the family: a press on the top releases the latch and a gas lift tips the connector panel up into view, presenting one AC receptacle, two CAT 6 RJ-45 jacks and space for four single-space or two double-space Extron AAPs. Power comes in through a removable IEC cord rated 220 to 250 V, 50-60 Hz, 10 A.

Key Capabilities

• Tilt-up metal enclosure with an Israeli AC receptacle
• Top plate of 10.11 in W x 6.42 in D (257 x 163 mm)
• Surface cutout of 9.64 in W x 5.95 in D (245 x 151 mm)
• One AC receptacle plus two CAT 6 RJ-45 connectors
• Four single-space or two double-space Extron AAP positions
• Gas lift rated for 100,000 opening and closing cycles

Where It Is Used

Boardrooms, teaching lecterns, clinical review desks and control positions in Israeli installations where table connectivity must be reachable during a session and hidden afterwards.

Specifications at a Glance

• Clamshell: 5.17 in x 9.17 in x 7.77 in (131 x 233 x 197 mm)
• Enclosure type: metal
• Product weight: 8.4 lbs (3.8 kg)
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607000C.
