Extron HSA 400 (part number 60-700-0B) — the UK black anodized version of the Hideaway surface access enclosure, built with a UK AC receptacle for British installations.

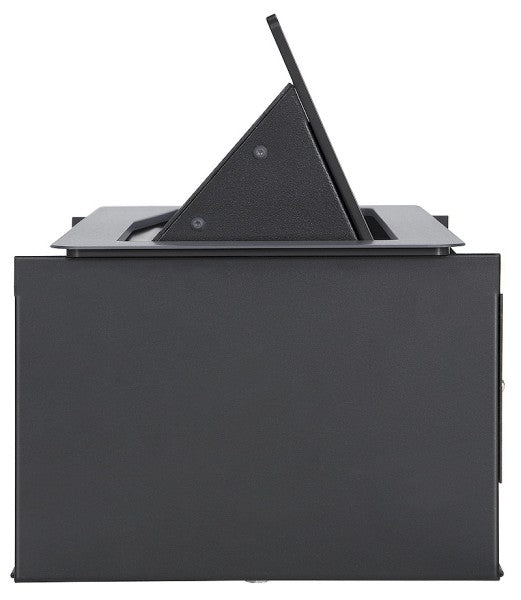

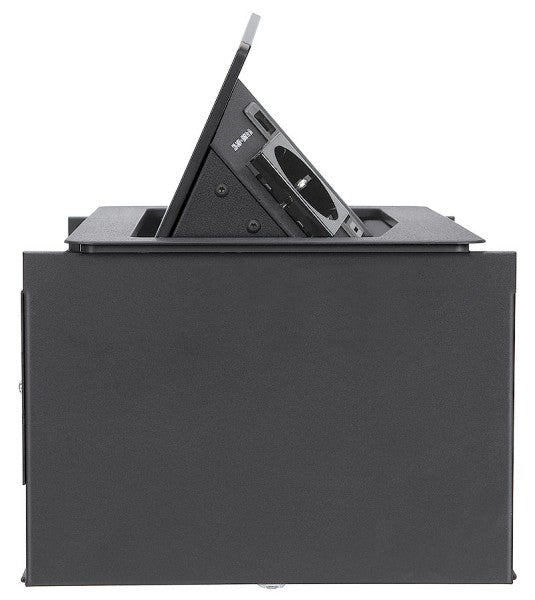

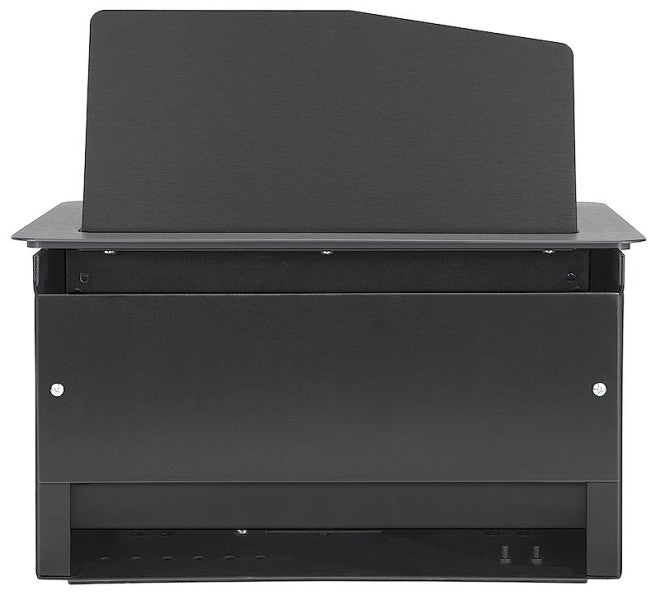

International HSA 400 units are wider than the US model to accommodate the larger AC outlet, so this build takes a 9.64 inch surface cutout rather than 8.14. Everything else works the same way: press the top, the latch lets go, and a gas lift raises the connector panel to a comfortable angle. The panel holds one AC receptacle, two CAT 6 RJ-45 jacks and four single-space or two double-space Extron AAPs. International versions use a removable IEC cord for a 220 to 250 V, 50-60 Hz, 10 A supply.

Key Capabilities

• Tilt-up metal enclosure with a UK AC receptacle

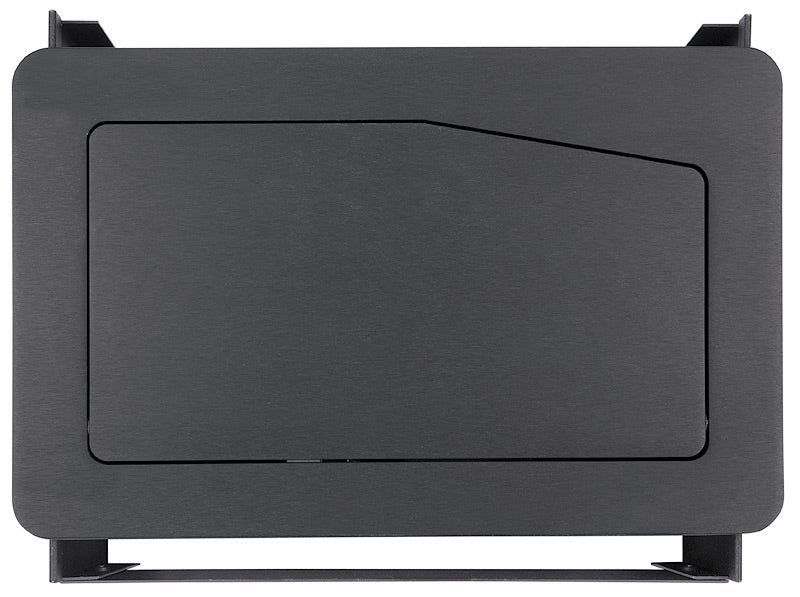

• Top plate of 10.11 in W x 6.42 in D (257 x 163 mm)
• Surface cutout of 9.64 in W x 5.95 in D (245 x 151 mm)

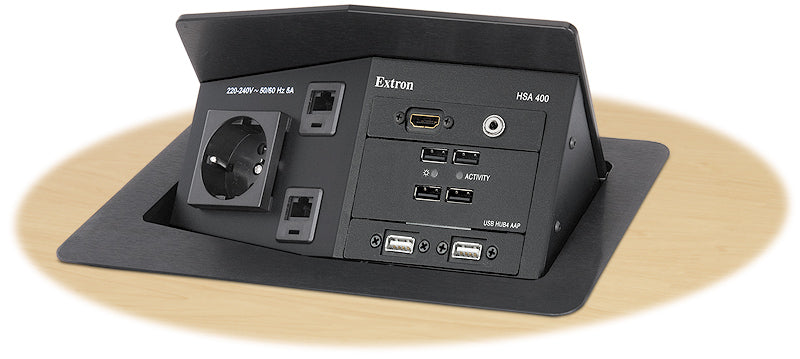

• One AC receptacle plus two CAT 6 RJ-45 connectors
• Four single-space or two double-space Extron AAP positions

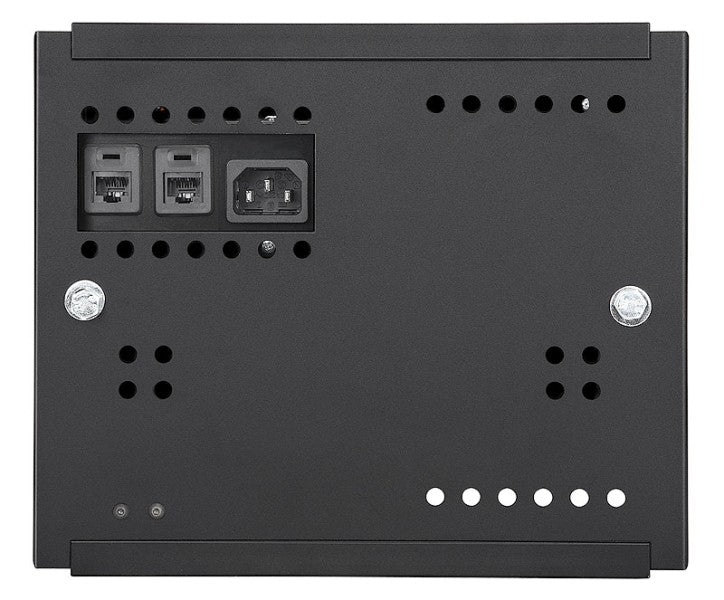

• Removable IEC power cord for 220-250 V, 50-60 Hz operation

Where It Is Used

UK boardrooms, university lecture desks, hospital review stations and training rooms where table connectivity has to be available on demand and invisible the rest of the time.

Specifications at a Glance

• Tilt plate: 8.16 in W x 4.48 in D (219 x 114 mm)
• Table thickness: 0.38 in to 1.75 in (9.5 to 45 mm)
• Product weight: 8.4 lbs (3.8 kg)
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607000B.
