Extron HSA 400 (part number 60-415-03) — the US brushed aluminum Hideaway surface access enclosure, for tables and lecterns where a metallic top finish suits the furniture better than black.

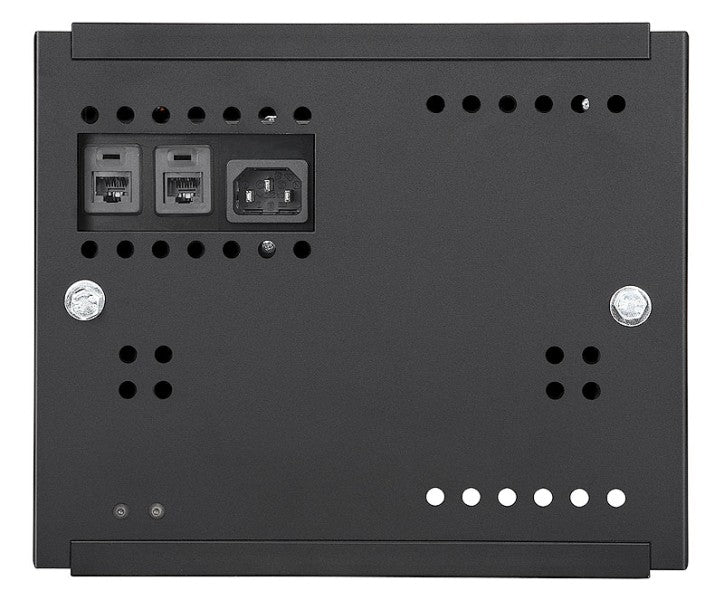

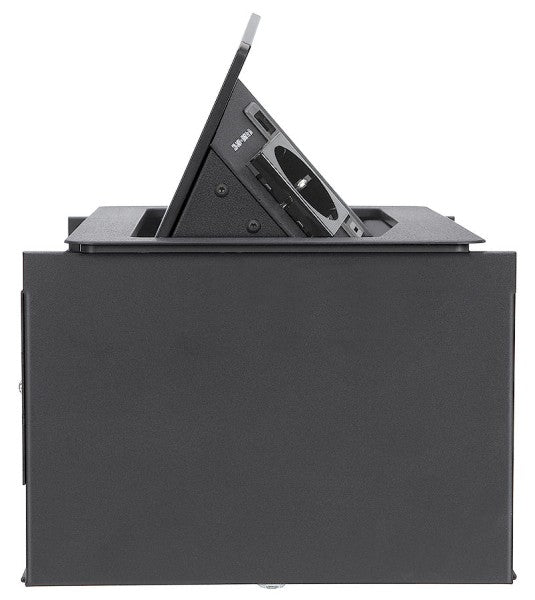

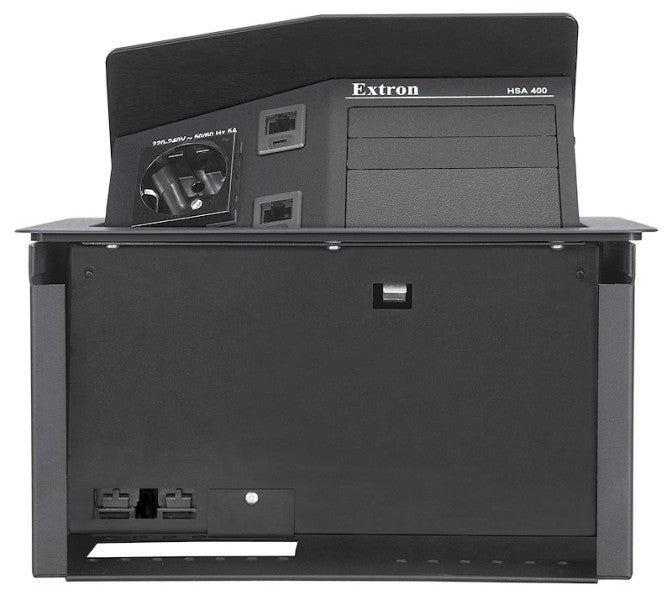

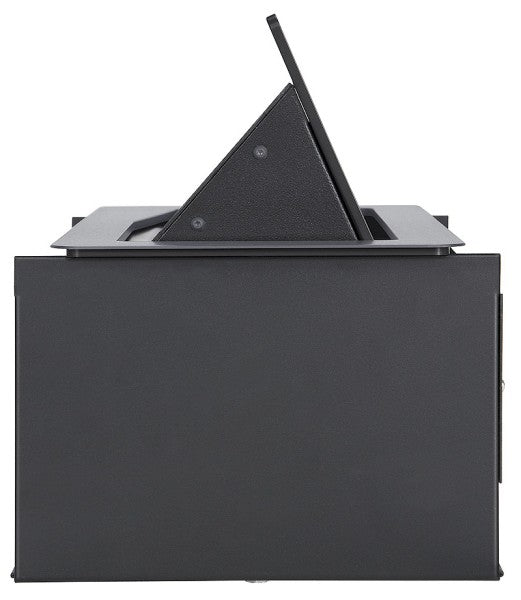

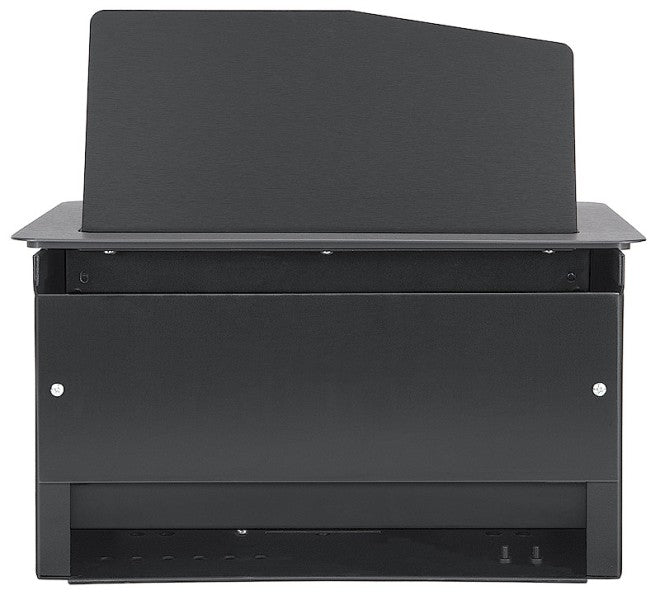

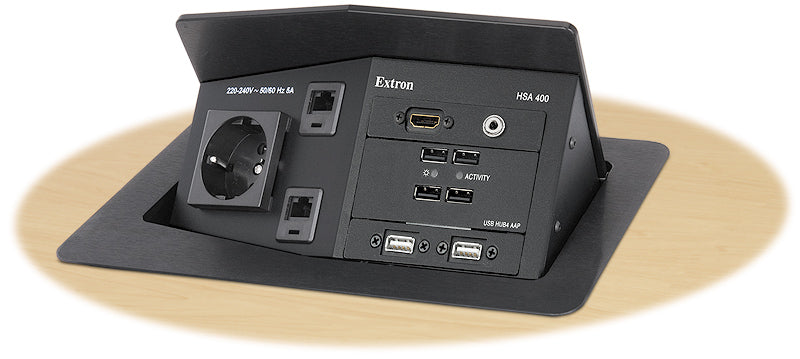

Functionally this is the same tilt-up enclosure as every other HSA 400: press the top, the latch releases, and a gas lift raises the connector panel into view. That panel carries one unswitched AC receptacle, two CAT 6 RJ-45 jacks and mounting space for four single-space or two double-space Extron AAPs. Cabling runs from the panel down through the clamshell to connectors on the underside, so nothing is visible above the table when the unit is closed. US models use a permanently attached cord for a 125 VAC, 60 Hz, 10 A supply.

Key Capabilities

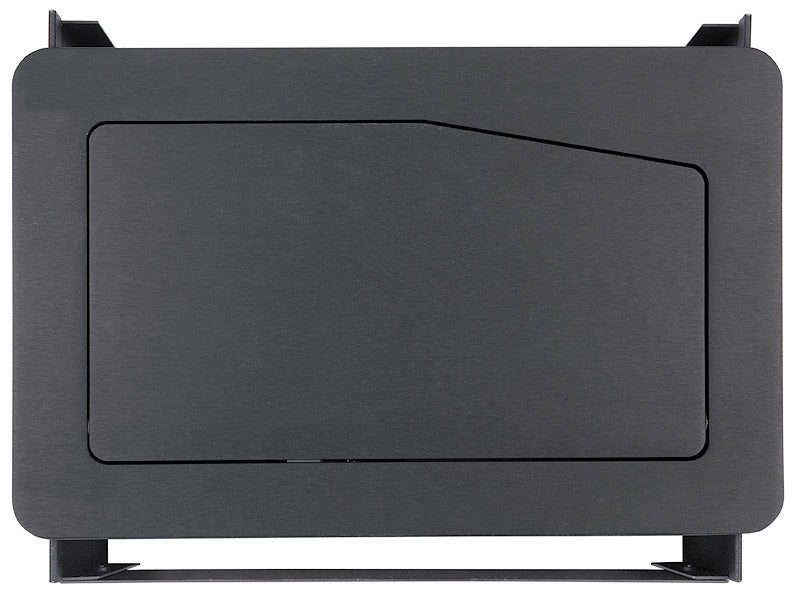

• Brushed aluminum top plate measuring 8.61 in W x 6.42 in D (219 x 163 mm)
• One unswitched AC receptacle and two CAT 6 RJ-45 connectors
• Four single-space or two double-space Extron AAP positions
• Requires a surface cutout of 8.14 in W x 5.95 in D (207 x 151 mm)
• Fits table thicknesses from 0.38 in to 1.75 in (9.5 to 45 mm)
• Ships with an assortment of coloured RJ-45 bezels and icon labels

Where It Is Used

Executive boardrooms, university lecterns, broadcast desks and clinical review stations finished in aluminum, stainless or light wood, where a brushed metal top reads as part of the furniture rather than an add-on.

Specifications at a Glance

• Tilt plate: 6.66 in W x 4.48 in D (169 x 114 mm)
• Enclosure type: metal
• Product weight: 8.4 lbs (3.8 kg)
• Regulatory: CSA C/US, c-UL, UL; CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 6041503.
