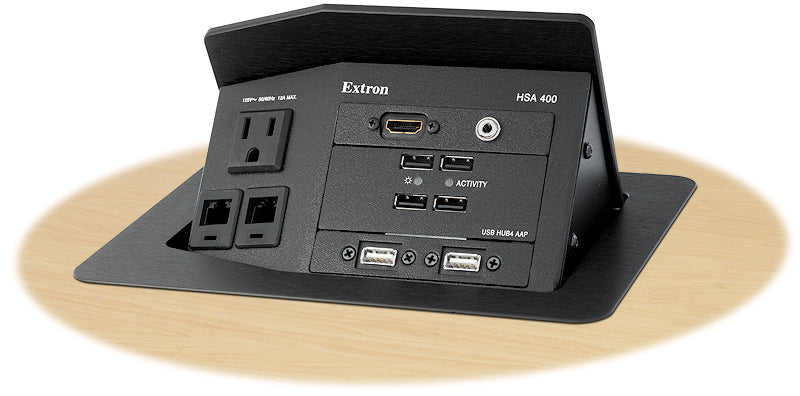

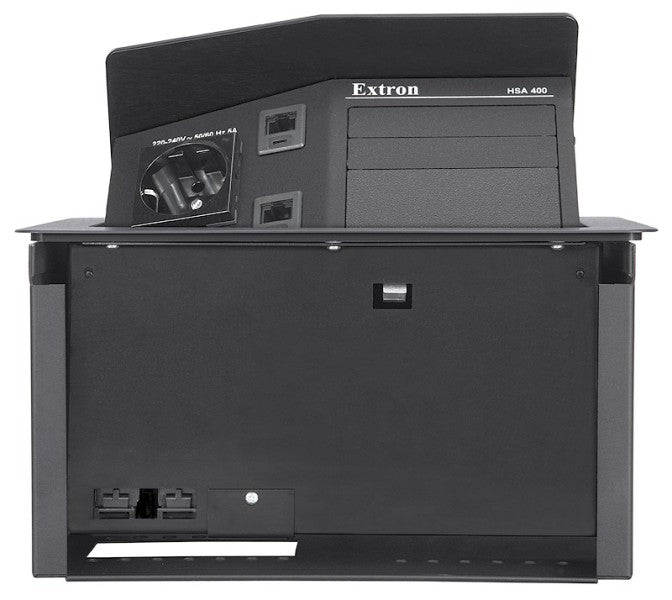

Extron HSA 400 (part number 60-415-01) — the US black anodized Hideaway surface access enclosure, a tilt-up connection point that sits nearly flush in a table or lectern top.

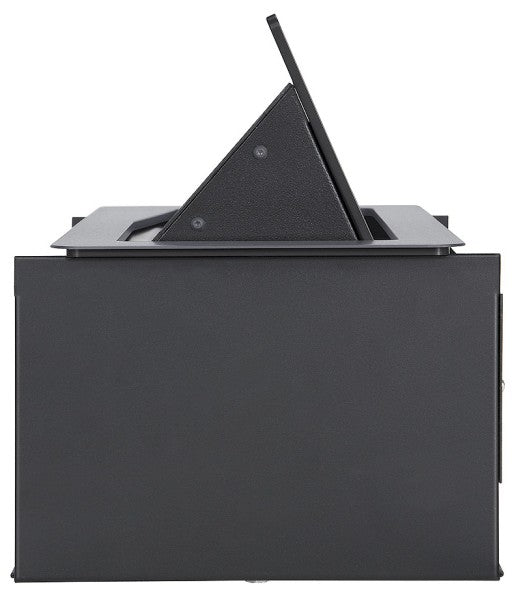

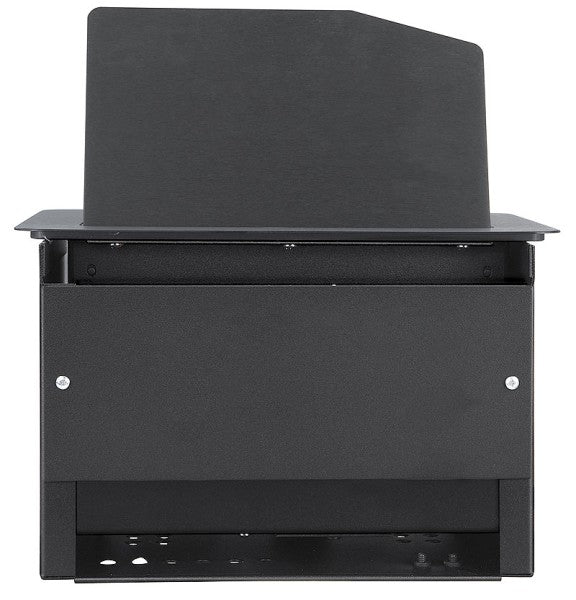

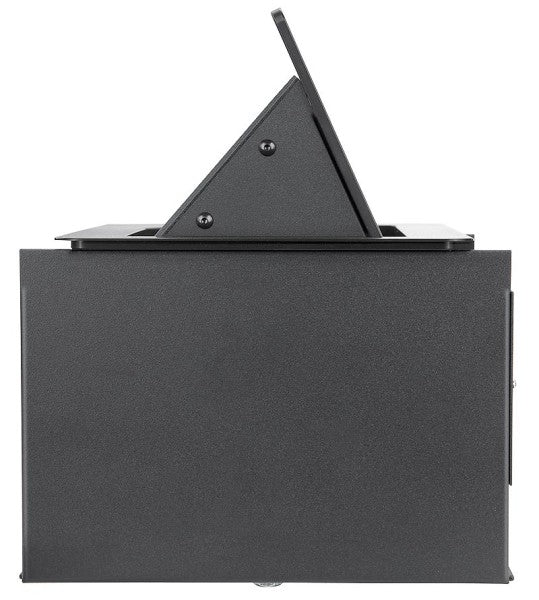

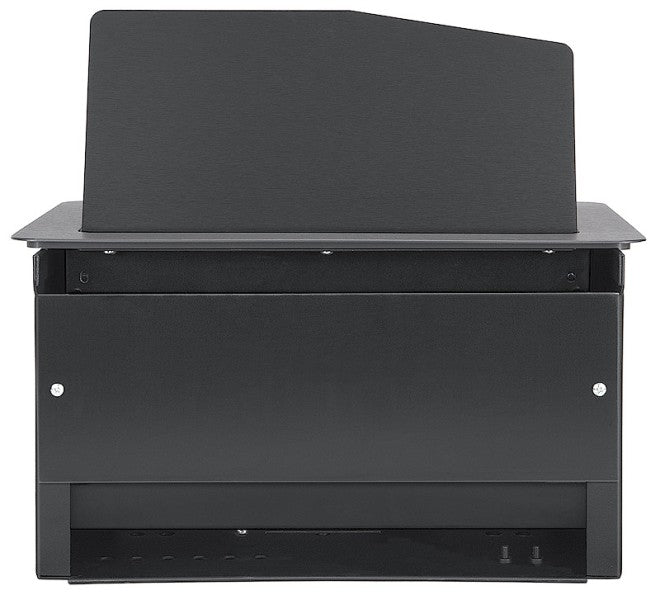

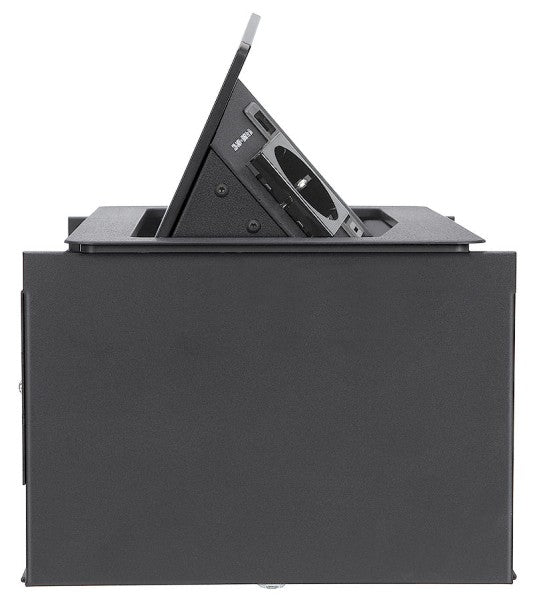

The HSA 400 solves the problem of visible clutter on a conference table. Press the top and a mechanical latch releases; a gas lift then tips the panel up and presents the connectors at a comfortable working angle. Behind that panel sits one unswitched AC receptacle, two CAT 6 RJ-45 jacks and room for four single-space or two double-space Extron AAPs, so the same enclosure can carry power, network and whatever video or audio interfaces the room requires. The US version ships with a permanently attached power cord for a 125 VAC, 60 Hz, 10 A supply.

Key Capabilities

• Tilt-up metal enclosure that installs nearly flush into a table or lectern

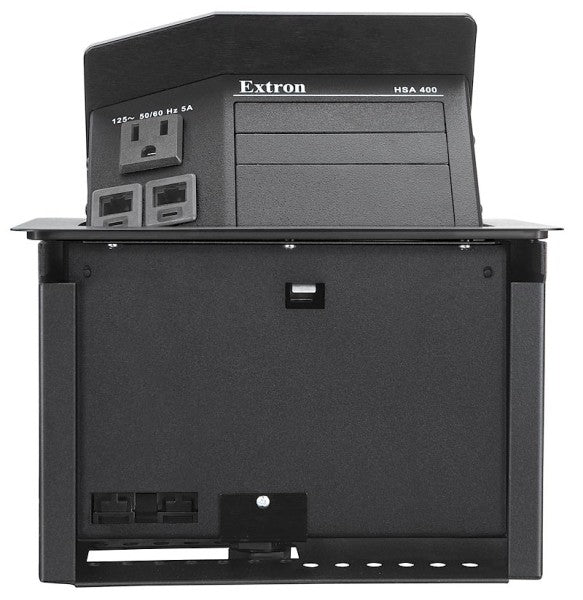

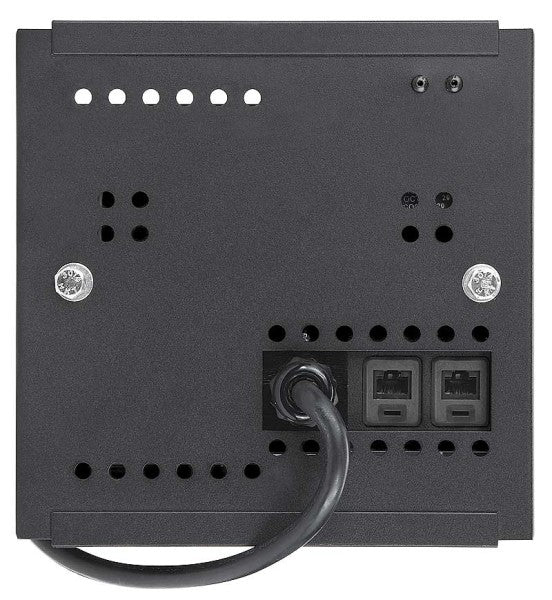

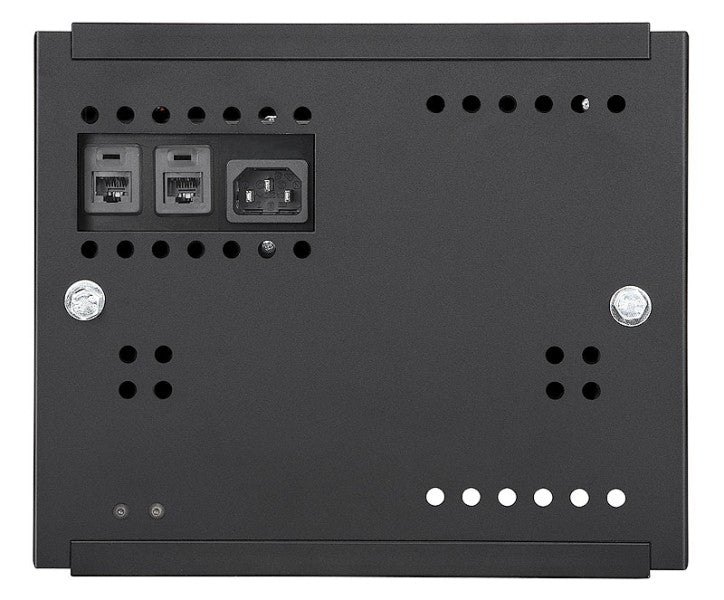

• One unswitched AC receptacle plus two CAT 6 RJ-45 connectors
• Space for four single-space or two double-space Extron AAPs
• Surface cutout of 8.14 in W x 5.95 in D (207 x 151 mm) for the US model
• Mounts into table tops from 0.38 in to 1.75 in (9.5 to 45 mm) thick
• Gas lift rated for 100,000 opening and closing cycles

Where It Is Used

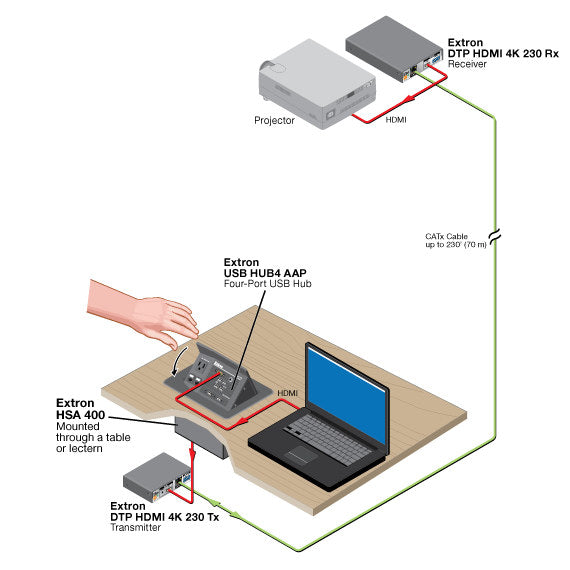

Boardroom and conference tables, lecterns, training desks, courtroom benches and medical review workstations — anywhere connectors need to be within reach during a session and out of sight the rest of the time.

Specifications at a Glance

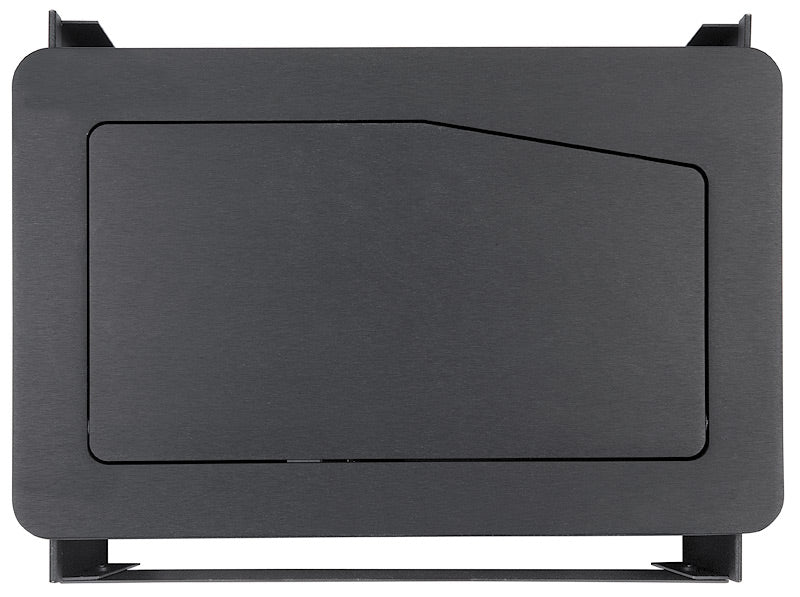

• Top plate: 8.61 in W x 6.42 in D (219 x 163 mm)
• Enclosure type: metal
• Product weight: 8.4 lbs (3.8 kg)
• Regulatory: CSA C/US, c-UL, UL; CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 6041501.
