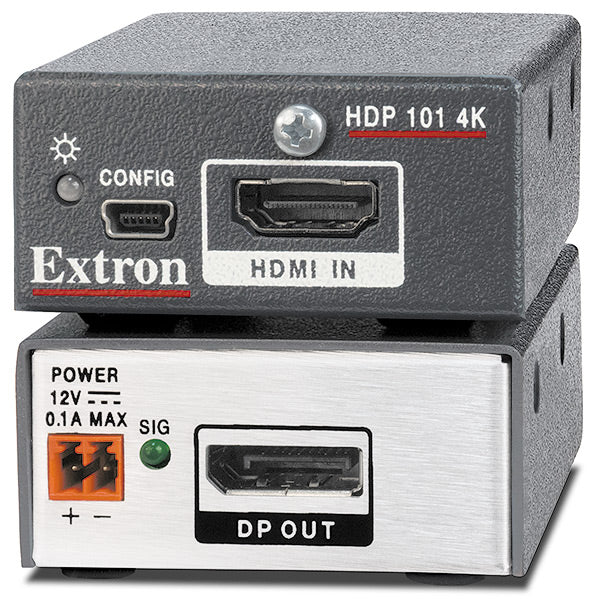

Extron HDP 101 4K (part number 60-1739-01) — a compact HDMI-to-DisplayPort signal converter built for mixed-interface AV racks.

Many rooms mix HDMI sources with DisplayPort displays or matrix inputs. Extron built the HDP 101 4K to bridge that gap without an external power injector taking up rack space. It accepts a single HDMI or single-link DVI-D source and outputs a live DisplayPort 1.1 signal, passing resolutions up to 4096x2160 at 30 Hz through a 10.2 Gbps datapath. The whole unit lives in an eighth-rack metal shell small enough to hide behind a display or tuck into a credenza.

Key Capabilities

• Bridges HDMI 1.4 or single-link DVI-D sources to a DisplayPort 1.1 output
• Handles up to 4096x2160 at 30 Hz across a 10.2 Gbps signal path
• Supports HDCP 1.4 so protected HDMI content stays authenticated end to end
• Runs on an external 12 VDC, 6-watt supply and draws under 1.4 watts total
• Fits behind a display or in a cable pocket at 1.0 in H x 2.2 in W x 3.0 in D

Where It Is Used

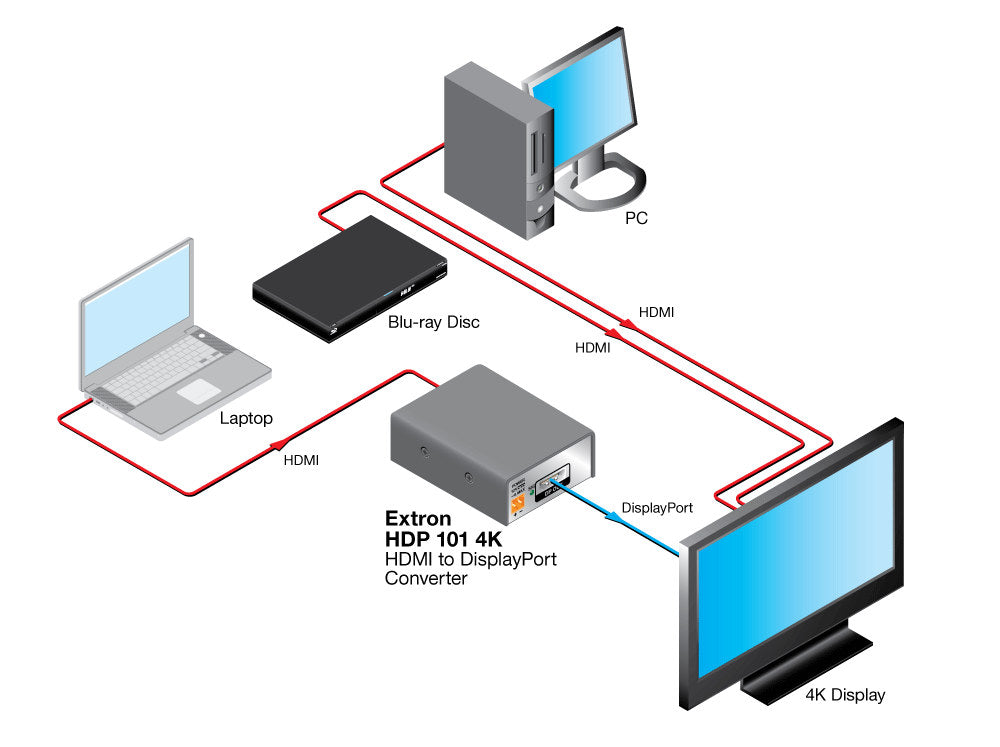

Integrators reach for the HDP 101 4K when a laptop dock, camera, or media player only speaks HDMI but the downstream matrix switcher, extender, or display expects DisplayPort. It shows up in huddle rooms, classroom lecterns, and broadcast racks where swapping the whole source device is not an option.

Specifications at a Glance

• 1 HDMI/DVI-D input, 1 DisplayPort output
• 10.2 Gbps maximum video data rate (3.4 Gbps per color)
• 300 MHz maximum pixel clock
• Up to 15 ft of cable supported on input and output
• 3-year Extron parts-and-labor warranty

Also referenced as Extron HDP1014K, HDP-101-4K, part number 60173901.
