Extron HDMI Ultra/9 (part number 26-663-09) — a 9 ft (2.7 m) Premium High Speed HDMI cable for runs that cross a room rather than a rack.

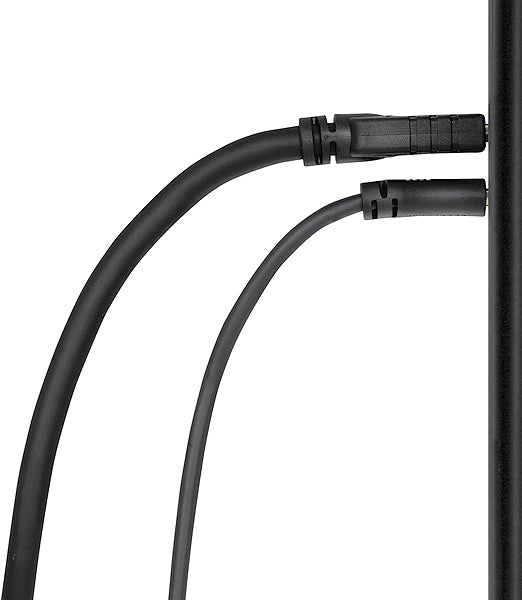

At nine feet the usual compromise is a thick, stiff cable that fights the installer at every turn. Extron takes the opposite approach: 28 AWG tinned copper conductors, a drain wire of the same gauge, a fluorocopolymer tape binder with tinned copper braid over the top, and a PVC jacket only 0.22 in (5.7 mm) across. The result pulls through conduit and furniture channels easily while still meeting Premium High Speed requirements and carrying 4K at 60 Hz with 8 bit color.

Key Capabilities

• 9 ft (2.7 m) length for wall-plate, ceiling and furniture runs
• 4096 x 2160 and 3840 x 2160 at 60 Hz, 8 bit color depth
• 18.0 Gbps maximum video data rate, 6.0 Gbps per color
• Interpair skew of 1.78 ns or less per 3 m
• 28 AWG conductors and drain wire under braided shielding
• Limited Lifetime Performance warranty

Where It Is Used

Lecture halls and classrooms feeding a ceiling projector from a lectern, boardroom credenzas serving a wall-mounted display, and control or command centres where a source rack sits a short distance from the operator position. The slim jacket also suits retrofit pulls through existing raceway.

Specifications at a Glance

• Signal type: HDMI 2.0; chroma sampling 4:4:4, 4:2:2 or 4:2:0

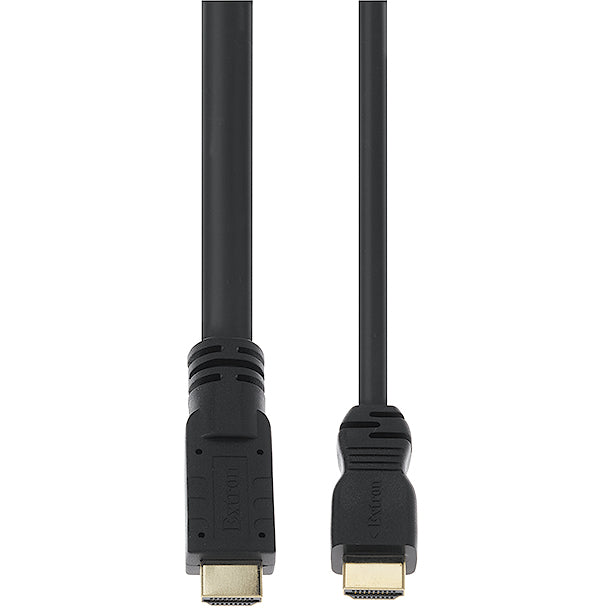

• Connectors: male type A HDMI both ends, gold plated
• Cable: 0.22 in (5.7 mm) diameter, 0.80 in (20.3 mm) bend radius
• Regulatory: UL VW-1, CMX, CSA FT-1; 80 °C temperature rating

Also referenced as Extron HDMIUltra/9, HDMI-Ultra-9, part number 2666309.
