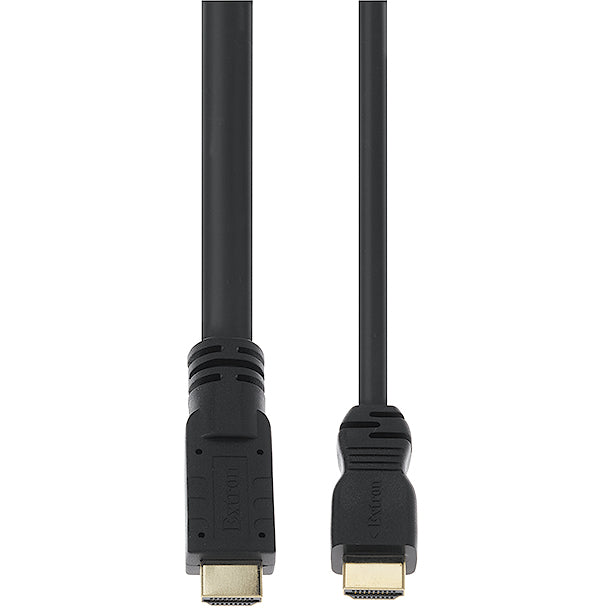

Extron HDMI Ultra/6 (part number 26-663-06) — a 6 ft (1.8 m) Premium High Speed HDMI cable for the reach between a rack and the equipment beside it.

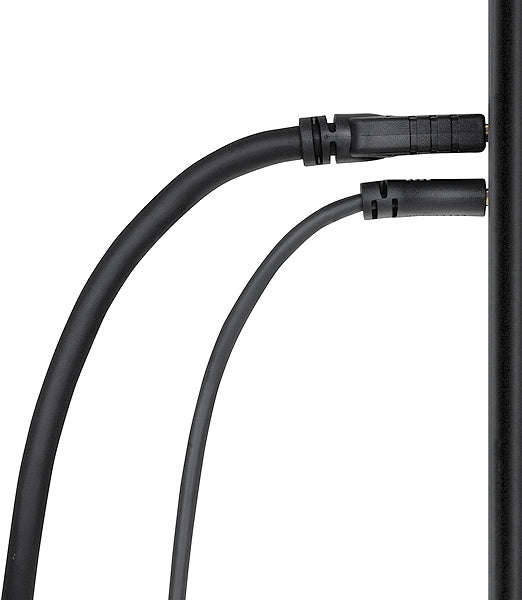

Once a run leaves the rack, cable stiffness becomes the enemy: a heavy jacket pushes back against the connector and eventually loosens it. The HDMI Ultra construction avoids that. Extron's 28 AWG conductor set sits inside a 0.22 in (5.7 mm) jacket that folds to a 0.80 in (20.3 mm) radius, so six feet can be dressed around a furniture leg or into a wall box without stressing the port. Signal integrity is unchanged: the pairs stay at 100 ohms ±10 ohms and far-end crosstalk is held at 20 dB or better per 3 m.

Key Capabilities

• 6 ft (1.8 m) reach for rack-to-furniture and rack-to-display runs
• Premium High Speed HDMI performance to 4096 x 2160 at 60 Hz
• 18.0 Gbps maximum video data rate, 6.0 Gbps per color
• FEXT of 20 dB or better per 3 m across the operating band
• 0.22 in (5.7 mm) outer diameter keeps bundles slim
• Limited Lifetime Performance warranty

Where It Is Used

Conference rooms and boardrooms where a table box feeds a nearby credenza, classroom projector feeds from a lectern, control room consoles, and medical imaging suites where a display arm swings and the cable has to follow it without kinking.

Specifications at a Glance

• Signal type: HDMI 2.0; 24 to 60 fps frame rates
• Connectors: 1 male type A HDMI to 1 male type A HDMI
• Shielding: fluorocopolymer tape binder plus tinned copper braid
• Regulatory: UL VW-1, CMX, CSA FT-1; 30 V, 80 °C

Also referenced as Extron HDMIUltra/6, HDMI-Ultra-6, part number 2666306.
