Extron HDMI Ultra/3 (part number 26-663-03) — a 3 ft (90 cm) Premium High Speed HDMI cable, the workhorse length of the HDMI Ultra Series.

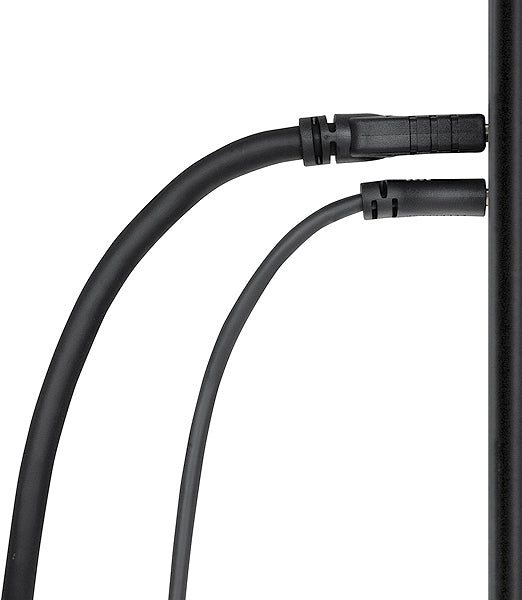

Three feet is enough to leave a switcher, cross a rack bay and land on a scaler or extender with a service loop intact. Extron builds the run from its own 28 AWG conductor set, so the finished cable is thinner and far easier to dress than commodity HDMI. Double shielding under a fluorocopolymer tape binder and tinned copper braid keeps the four data pairs clean, and the pairs hold 100 ohms ±10 ohms across the band that a 4K signal actually occupies.

Key Capabilities

• 3 ft (90 cm) length, the most common HDMI Ultra run in rack work
• Premium High Speed rating: 4096 x 2160 at 60 Hz, 8 bit color
• 18.0 Gbps maximum video data rate, 6.0 Gbps per color
• Attenuation held to 5 dB per 3 m from 0.3 to 0.825 GHz
• Intrapair skew of 112 ps or less per 3 m
• Limited Lifetime Performance warranty

Where It Is Used

Rack patching between matrix switchers, scalers and streaming encoders; classroom lecterns; digital signage cabinets; and imaging or control room consoles where several sources share a single equipment bay and cable bulk quickly becomes the limiting factor.

Specifications at a Glance

• Signal type: HDMI 2.0; chroma sampling 4:4:4, 4:2:2 or 4:2:0

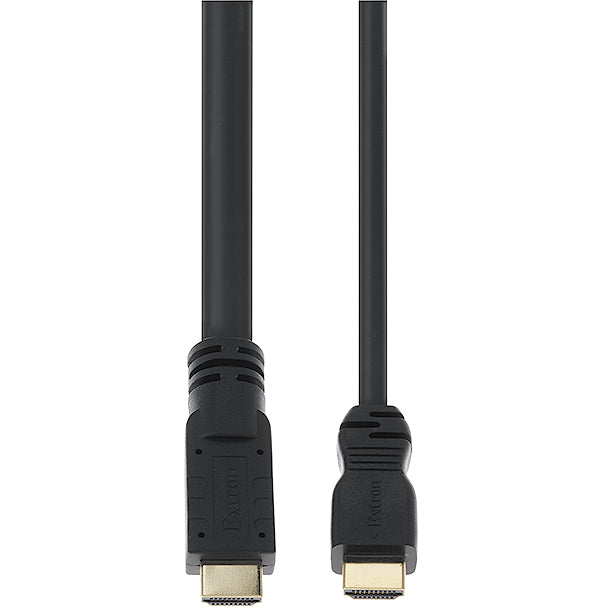

• Connectors: male type A HDMI, gold-plated contacts
• Cable: 0.22 in (5.7 mm) outer diameter, 0.80 in (20.3 mm) bend radius
• Regulatory: UL VW-1, CMX, CSA FT-1; 30 V, 80 °C rated

Also referenced as Extron HDMIUltra/3, HDMI-Ultra-3, part number 2666303.
