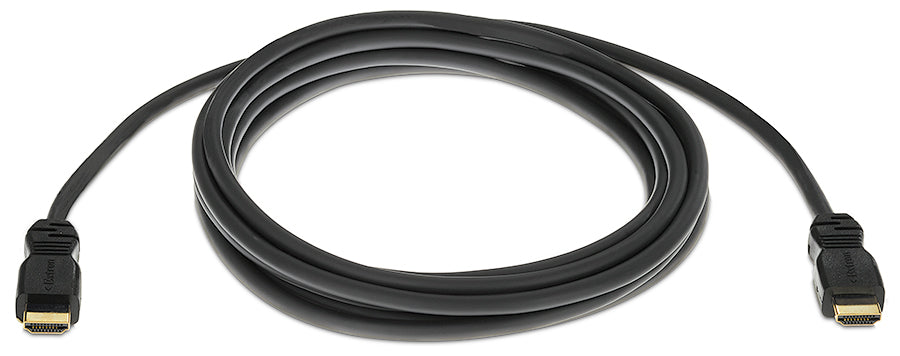

Extron HDMI Ultra/12 (part number 26-663-12) — a 12 ft (3.6 m) Premium High Speed HDMI cable for the longer in-room run.

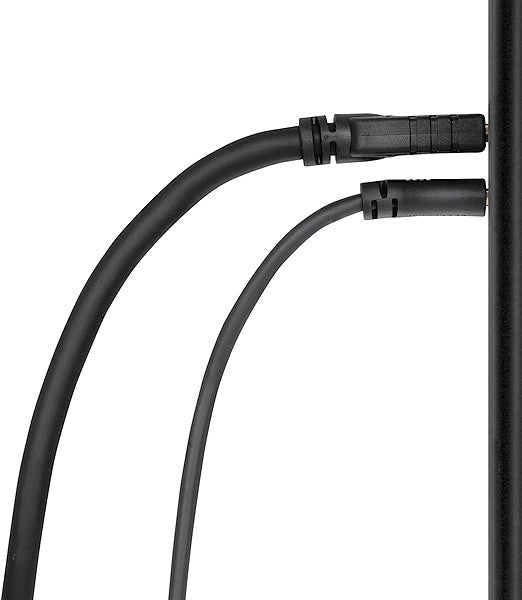

Twelve feet is usually where installers start worrying about 4K holding up. This assembly is specified for it: attenuation stays at or below 12 dB per 3 m through the 0.825 to 2.475 GHz band, intrapair skew is capped at 112 ps per 3 m, and the pairs hold 100 ohms ±10 ohms end to end. Physically it is still an HDMI Ultra cable, meaning a 0.22 in (5.7 mm) jacket and gold-plated type A plugs that measure 1.40 in long excluding the plug body.

Key Capabilities

• 12 ft (3.6 m) length for lectern-to-projector and rack-to-display runs
• Premium High Speed rating: 4K at 60 Hz with 8 bit color
• 18.0 Gbps maximum video data rate, 6.0 Gbps per color
• Attenuation of 12 dB or less per 3 m from 0.825 to 2.475 GHz

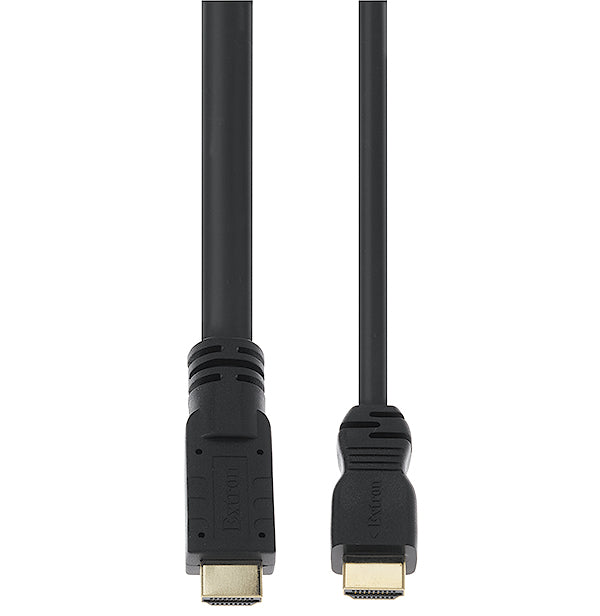

• Gold-plated type A connectors measuring 1.40 in long
• Limited Lifetime Performance warranty

Where It Is Used

Divisible meeting rooms, lecture theatres, houses of worship and command centres where the source position and the display are on opposite sides of a wall or column. It also covers ceiling-projector drops in classrooms with standard ceiling heights.

Specifications at a Glance

• Signal type: HDMI 2.0; frame rates 24, 25, 30, 50 or 60 fps
• Connectors: male type A HDMI on both ends, gold plated
• Cable: 0.22 in (5.7 mm) diameter, 0.80 in (20.3 mm) bend radius
• Regulatory: UL VW-1, CMX, CSA FT-1; 30 V, 80 °C

Also referenced as Extron HDMIUltra/12, HDMI-Ultra-12, part number 2666312.
