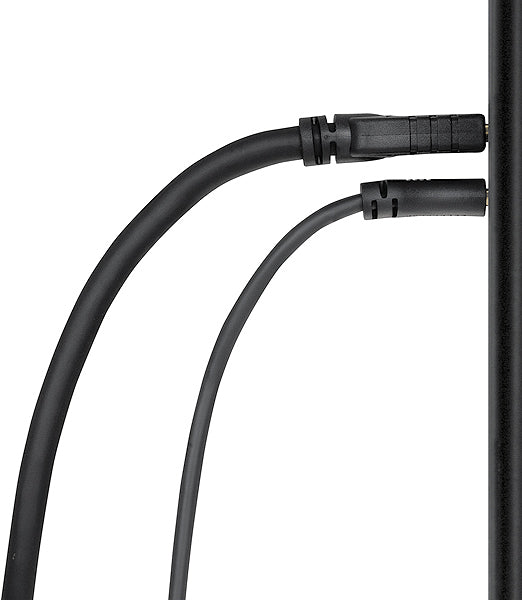

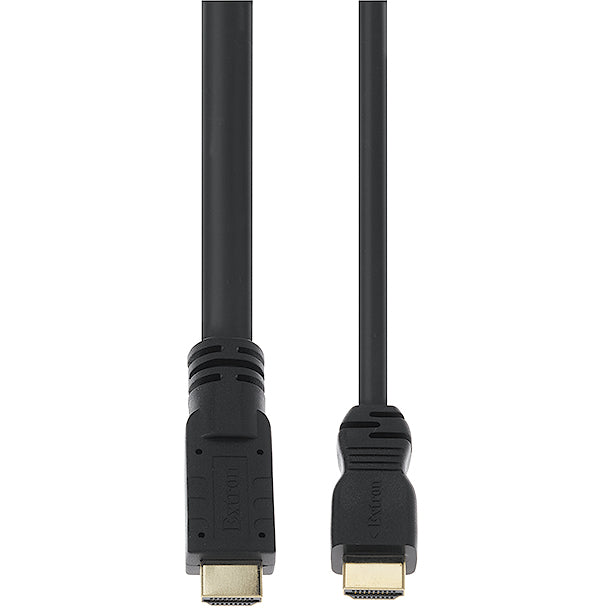

Extron HDMI Ultra/1.5 (part number 26-663-02) — a 1.5 ft (45 cm) Premium High Speed HDMI cable sized for short, tidy interconnects.

Eighteen inches is often the awkward gap: too far for a one-foot jumper, far too short to justify a three-foot cable that then has to be coiled. This length closes that gap while keeping the properties that define the HDMI Ultra Series — a slim 28 AWG construction measuring 0.22 in (5.7 mm) across, a 0.80 in (20.3 mm) minimum bend radius, and low-profile gold-plated type A plugs that do not crowd neighbouring ports on a densely populated panel.

Key Capabilities

• 1.5 ft (45 cm) length for short rack and furniture interconnects
• Conforms to Premium High Speed HDMI cable performance standards
• Carries 4096 x 2160 and 3840 x 2160 at 60 Hz, 8 bit color
• 18.0 Gbps maximum video data rate, 6.0 Gbps per color
• 0.22 in (5.7 mm) outer diameter with a 0.80 in (20.3 mm) bend radius
• Limited Lifetime Performance warranty from Extron

Where It Is Used

Rack-mounted switchers feeding scalers or extenders one or two rack units away, lectern electronics, credenza-mounted signage players, and displays on articulating mounts where the cable has to fold rather than bow. The short run also keeps dressed cable bundles neat inside AV furniture.

Specifications at a Glance

• Signal type: HDMI 2.0; frame rates 24 to 60 fps
• Connectors: male type A HDMI both ends, gold-plated contacts
• Conductors: tinned copper 28 AWG under a PVC jacket
• Regulatory: UL VW-1, CMX, CSA FT-1; 80 °C temperature rating

Also referenced as Extron HDMIUltra/1.5, HDMI-Ultra-1-5, part number 2666302.
