Extron HDMI Ultra/1 (part number 26-663-01) — a 1 ft (30 cm) Premium High Speed HDMI cable for jumper runs where a standard cable is simply too long.

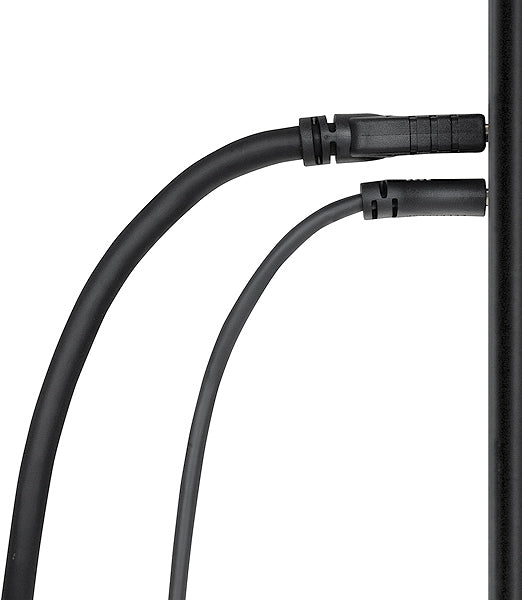

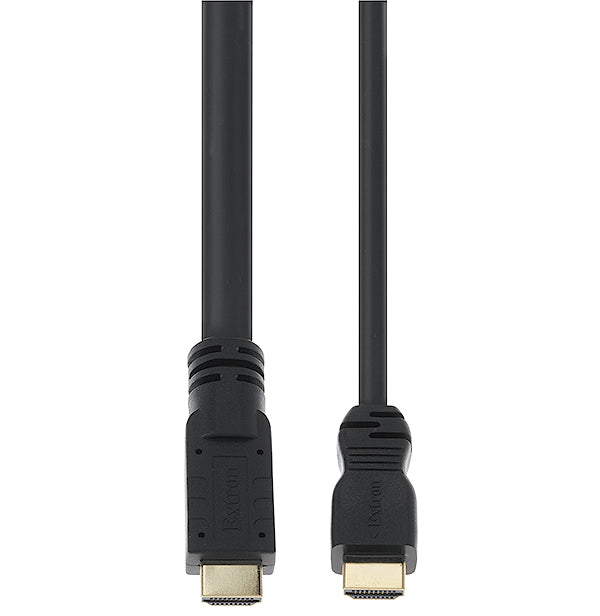

The HDMI Ultra Series is built around an Extron 28 AWG conductor set that is noticeably thinner and more pliable than ordinary HDMI cable, wrapped in a 0.22 in (5.7 mm) jacket and finished with compact gold-plated type A plugs. Because the assembly turns inside a 0.80 in (20.3 mm) radius, a one-foot piece can loop between stacked rack gear or between a display and a mount plate without the connector being levered sideways. Electrically it still meets Premium High Speed requirements, so nothing is traded away for the small size.

Key Capabilities

• 1 ft (30 cm) length for jumpers inside racks and behind displays
• Premium High Speed performance: 4096 x 2160 and 3840 x 2160 at 60 Hz
• 18.0 Gbps maximum video data rate, 6.0 Gbps per color
• 28 AWG tinned copper conductors with double shielding under a PVC jacket
• 0.80 in (20.3 mm) bend radius and 0.22 in (5.7 mm) outer diameter
• Backed by an Extron Limited Lifetime Performance warranty

Where It Is Used

Equipment racks, AV presentation furniture, digital signage players tucked behind a panel, and wall-mount or pole-mount display installations where clearance behind the screen is measured in inches. Also common as a patch between a switcher output and a scaler in the same rack bay.

Specifications at a Glance

• Signal type: HDMI 2.0; 8 bit color depth
• Connectors: 1 male type A HDMI to 1 male type A HDMI, gold plated
• Pair impedance: 100 ohms ±10 ohms; voltage 30 V
• Regulatory: UL VW-1, CMX, CSA FT-1; temperature rating 80 °C

Also referenced as Extron HDMIUltra/1, HDMI-Ultra-1, part number 2666301.
