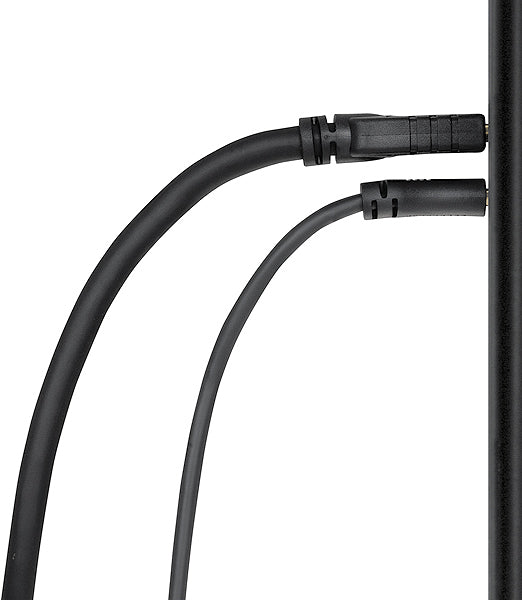

Extron HDMI SM (part number 26-683-09) — the 9 ft (2.7 m) Show Me cable, sized for tables where the enclosure and the presenter's seat are not next to each other.

An HDMI SM cable does two jobs at once. It carries the laptop's HDMI signal to the switcher hidden under the table, and its illuminated Share button tells that switcher which input to select. A three-conductor pigtail leaving the system end handles the contact closure and the tally lamp, so a single cable assembly delivers both the video path and the room's user interface. The 9 ft version buys extra slack for wide tables, deep credenzas or lecterns set back from the connectivity point.

Key Capabilities

• 9 ft (2.7 m) working length from the enclosure to the source
• HDMI 2.0 signal path rated to 4096 x 2160 at 60 Hz
• 18.0 Gbps ceiling on video data rate, 6 Gbps per color
• Handles HDCP 1.4 and 2.3 protected content
• 24 in (609 mm) control and tally pigtail on the system end
• Certified for AVEdge and Cable Cubby enclosures; meets Section 508

Where It Is Used

Training rooms, medical education spaces, library collaboration pods and mid-size conference tables paired with Extron collaboration switchers and control modules such as the SW HD 4K Series, MPS 601, DTP2 T 203 or IN1604. The extra reach helps when the Cable Cubby sits at the table centre and users connect from either end.

Specifications at a Glance

• Cable length: 9 ft (2.7 m)

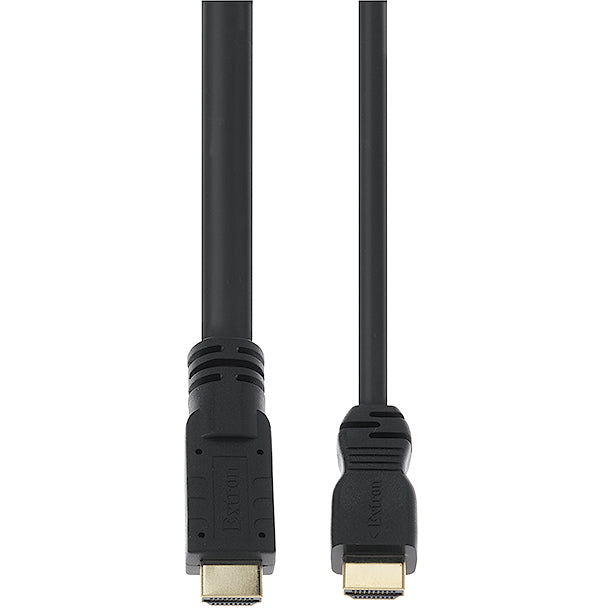

• Connectors: male HDMI type A on both ends
• Standards: HDMI 2.0, DisplayPort 1.2, HDCP 1.4 and 2.3
• Voltage: 30 V; temperature rating 80 °C
• Regulatory: UL

Also referenced as Extron HDMISM, HDMI-SM, part number 2668309.
