Extron HDMI SM (part number 26-683-06) — a 6 ft (1.8 m) Show Me cable that turns a laptop HDMI output into a one-button share point.

The Show Me cable is the part of an Extron collaboration system a presenter actually touches. Pull it from the table enclosure, plug it into a laptop, then press the illuminated button on the connector shell. The attached switcher selects that input and the button stays lit, so the room can see which seat is driving the display. Control and tally ride back to the switcher on a separate three-conductor pigtail, so no extra wiring is required at the table.

Key Capabilities

• 6 ft (1.8 m) of reach between a table enclosure and a laptop
• Carries HDMI 2.0 video at resolutions to 4096 x 2160 at 60 Hz
• Maximum video data rate of 18.0 Gbps, or 6 Gbps per color
• HDCP 1.4 and 2.3 handling for protected sources

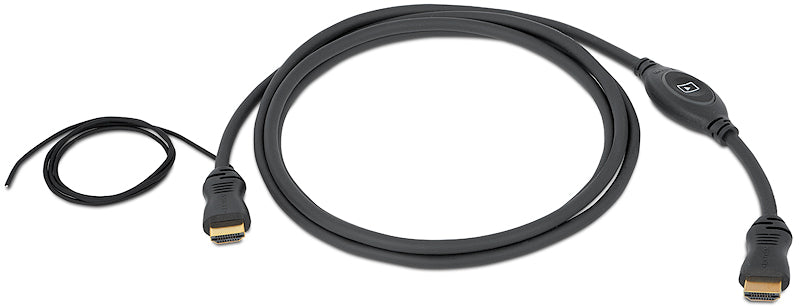

• 24 in (609 mm) control and tally pigtail for switcher connection
• Certified for AVEdge and Cable Cubby enclosures; meets Section 508

Where It Is Used

Huddle rooms, classrooms, libraries and boardroom tables where a switcher such as an SW HD 4K, MPS 601 or DTP2 T model is hidden below the surface and the only visible interface should be a cable and a lit button. The 6 ft length suits single-position tables and lecterns where the enclosure sits close to the seat.

Specifications at a Glance

• Cable length: 6 ft (1.8 m)

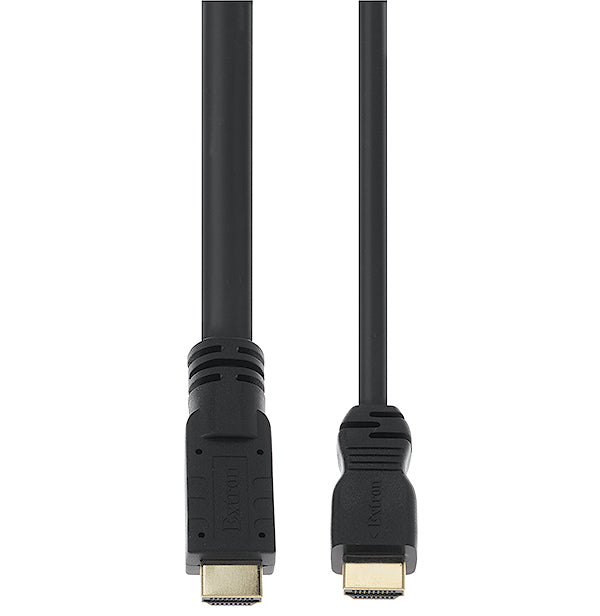

• Connectors: male HDMI type A on both ends
• Standards: HDMI 2.0, DisplayPort 1.2, HDCP 1.4 and 2.3
• Voltage: 30 V; temperature rating 80 °C
• Regulatory: UL

Also referenced as Extron HDMISM, HDMI-SM, part number 2668306.
