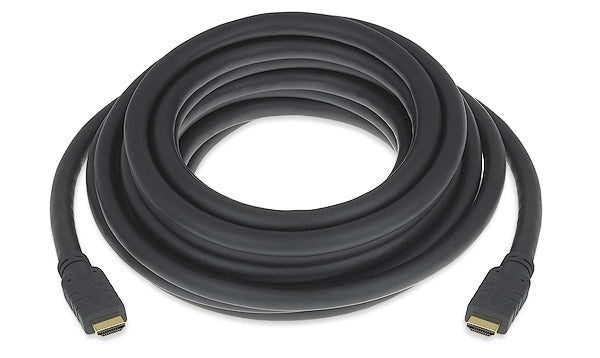

Extron HDMI Pro/75 (part number 26-650-75) is a 75 ft (22.8 m) male-to-male HDMI cable for long passive pulls in fixed AV installations.

Extron groups this part with its 4K High Speed cables, but the published resolution table stops at 50 ft, so no guaranteed resolution figure is printed for a 22.8 m run. What Extron does state is the practical design rule: past 75 ft a cable equalizer belongs in the path if 1080p at 60 Hz has to hold. Ampronix lists 26-650-75 for installers replacing an existing pull in kind, where re-routing conduit is not an option and the original cable was Extron.

Key Capabilities

• Extron groups 26-650-75 in its 4K High Speed cable class.
• 22 AWG tinned copper conductors and drain wire.
• Aluminum/Mylar foil plus a tinned copper braid beneath a PVC jacket.
• 0.47 in (12.0 mm) outer diameter with a 4.50 in (114.3 mm) minimum bend radius.
• Intrapair skew of 112 ps or less and interpair skew of 1.78 ns or less per 8 m.
• Pair impedance of 100 ohms plus or minus 10 ohms along the whole run.

Where It Is Used

Seventy-five foot runs live in conduit: auditoriums and houses of worship reaching a projector at the back of the house, lecture halls feeding an overflow display, arena and stadium control rooms, and hospital campuses linking an equipment room to a distant viewing station.

Specifications at a Glance

• Cable length: 75 ft (22.8 m)
• Signal type: HDMI 2.0
• Conductor gauge: 22 AWG conductors and drain wire
• Connector type: 1 male type A HDMI to 1 male type A HDMI
• Warranty: Limited Lifetime Performance

Also referenced as Extron HDMIPro/75, HDMI-Pro-75, part number 2665075. Extron lists 26-650-75 as a retired part number.
