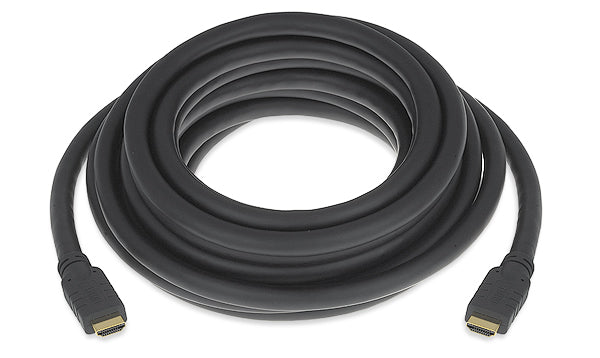

Extron HDMI Pro/6 (part number 26-650-06) is a 6 ft (1.8 m) HDMI 2.0 cable with a male type A plug at each end, sized for desk and rack-adjacent connections.

Six feet is the length most integrators default to when the display, the wall plate or the input plate is close but not immediately behind the source. The extra reach over a 3 ft jumper still keeps the run comfortably within the 25 ft limit Extron sets for its Premium High Speed rating, so nothing about the 4K picture is compromised: 3840x2160 and 4096x2160 both pass at 60 Hz with 8 bit color. Ampronix stocks this part for refresh work where a mangled consumer cable turns out to be the actual fault.

Key Capabilities

• Extron classifies 26-650-06 as 4K/UHD Ready.
• Maximum video data rate of 18.0 Gbps, split as 6.0 Gbps per color channel.
• Frame rates from 24 fps film through 60 fps motion are supported.
• Source chroma of 4:4:4, 4:2:2 or 4:2:0 at 8 bits per color.
• Attenuation stays at 5 dB or less per 6 m across the 0.3 to 0.825 GHz band.
• ARC and CEC signalling ride along with the video and audio payload.

Where It Is Used

Huddle rooms, single-display classrooms, nurse stations, diagnostic reading rooms and control desks all tend to land on a 6 ft cable: long enough to dress behind a monitor arm or through a grommet, short enough that it does not coil on the floor.

Specifications at a Glance

• Cable length: 6 ft (1.8 m)
• Connector type: 1 male type A HDMI to 1 male type A HDMI
• Contacts: gold plated
• Regulatory: cable UL Listed as type CM, CSA FT-1
• Warranty: Limited Lifetime Performance

Also referenced as Extron HDMIPro/6, HDMI-Pro-6, part number 2665006. Extron lists 26-650-06 as a retired part number.
