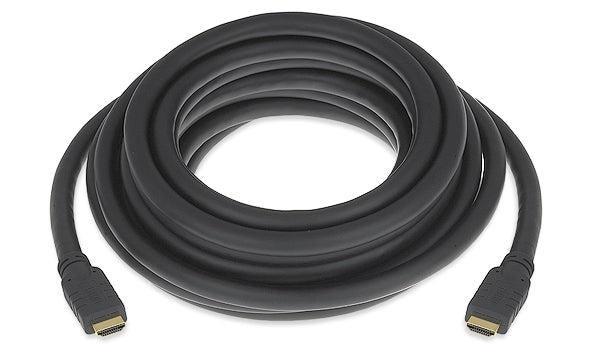

Extron HDMI Pro/50 (part number 26-650-50) is a 50 ft (15.2 m) male-to-male HDMI cable sitting at the outer edge of the published High Speed resolution table.

Fifty feet is the last length Extron documents with a resolution figure: up to 4K at 30 Hz or UHD at 30 Hz, 8 bit color, 10.2 Gbps. That makes it the practical limit for a passive HDMI pull before an equalizer or an extender becomes part of the design conversation. Construction matches the long-length build in the series, with 22 AWG tinned copper conductors, foil and braid shielding, and a 0.47 in PVC jacket. Ampronix supplies the part for integrators who would rather run one certified cable than splice two.

Key Capabilities

• Extron classifies 26-650-50 in its 4K High Speed group.
• Resolution table covers up to 4K at 30 Hz (4096x2160) at 10.2 Gbps for this length.
• 22 AWG tinned copper conductors and drain wire beneath foil and braid.
• Interpair skew of 1.78 ns or less per 8 m keeps the TMDS pairs aligned.
• Pair impedance held at 100 ohms plus or minus 10 ohms.
• Gold plated type A male connectors measuring 2.46 in long including the plug.

Where It Is Used

Fifty feet reaches from a closet rack to a lobby video wall, from a stage rack to a rear-of-house confidence monitor, or from a central equipment room to a corridor display. In healthcare it typically covers the distance between an imaging server rack and a remote reading station.

Specifications at a Glance

• Cable length: 50 ft (15.2 m)
• Signal type: HDMI 2.0
• Cable outer diameter: 0.47 in (12.0 mm)
• Regulatory: UL Listed as type CM, CSA FT-1
• Warranty: Limited Lifetime Performance

Also referenced as Extron HDMIPro/50, HDMI-Pro-50, part number 2665050.
