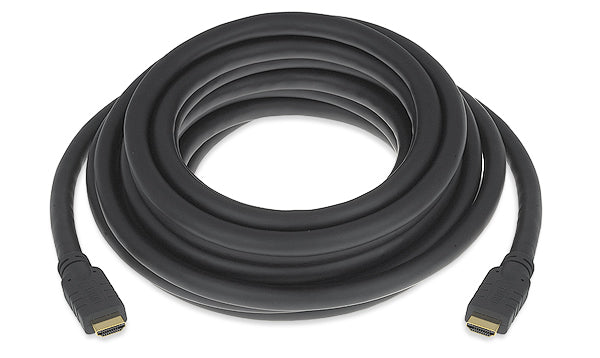

Extron HDMI Pro/35 (part number 26-650-35) is a 35 ft (10.6 m) HDMI 2.0 cable built for runs that cross a room rather than a rack.

Ten and a half metres falls outside the Premium High Speed window, so the published resolution table places this length in the High Speed group at up to 4K or UHD at 30 Hz with a 10.2 Gbps ceiling. Extron nonetheless verifies 4K at 60 Hz over 35 ft once an HD 4K 101 Plus cable equalizer is inserted in the path, which is why the part still carries a 4K Premium designation. Ampronix recommends specifying the equalizer alongside the cable whenever a 4K/60 source is in play.

Key Capabilities

• Extron lists 26-650-35 in its 4K Premium class and verifies 4K/60 with a cable equalizer.
• High Speed table rating of up to 4K at 30 Hz (4096x2160) at 10.2 Gbps.
• Peak signalling capability of 18.0 Gbps, 6.0 Gbps per color.
• 22 AWG tinned copper conductors with aluminum/Mylar foil and braid shielding.
• 0.47 in (12.0 mm) outer diameter and a 4.50 in (114.3 mm) bend radius.
• Passes ARC and CEC in addition to video and audio.

Where It Is Used

Thirty-five foot runs suit divisible classrooms, mid-size auditoriums, courtrooms and simulation labs, where the rack sits at one end of the room and the display or projector at the other. Hospital procedure rooms use the length between a video source cart and a boom-mounted monitor on the far wall.

Specifications at a Glance

• Cable length: 35 ft (10.6 m)
• Signal type: HDMI 2.0
• Chroma sampling: 4:4:4, 4:2:2 or 4:2:0 at 8 bits per color
• Intrapair skew: 112 ps or less per 8 m
• Temperature rating: -25 C to 75 C

Also referenced as Extron HDMIPro/35, HDMI-Pro-35, part number 2665035.
