Extron HDMI Pro/3 (part number 26-650-03) is a 3 ft (90 cm) male-to-male HDMI cable for short, tidy links between a source and a nearby display or switcher.

Ampronix supplies this length for the jumper connections that fill an equipment rack: player to switcher, switcher to scaler, scaler to a monitor a rack unit away. Because 90 cm sits far inside the 25 ft window Extron publishes for its Premium High Speed classification, the link carries 4K at 60 Hz with full 4:4:4 chroma and needs no inline conditioning. Both ends terminate in a standard type A male plug with gold plated contacts, and the jacket is UL Listed as type CM.

Key Capabilities

• HDMI 2.0 signalling with a peak video data rate of 18.0 Gbps, or 6.0 Gbps per color.
• Extron rates part 26-650-03 in its 4K/UHD Ready class.
• Carries 24, 25, 30, 50 and 60 fps material at 8 bits per color.
• Chroma sampling options of 4:4:4, 4:2:2 and 4:2:0.
• Pair impedance held to 100 ohms plus or minus 10 ohms, with far end crosstalk of 20 dB or better per 6 m.
• Audio return channel and consumer electronics control pass through the same cable.

Where It Is Used

A 3 ft HDMI cable is rack hardware more than room hardware. Integrators reach for it inside AV credenzas, presentation lecterns, medical imaging carts and broadcast racks, where a source, a switcher and a scaler sit within a rack unit or two of each other and excess cable would only create clutter.

Specifications at a Glance

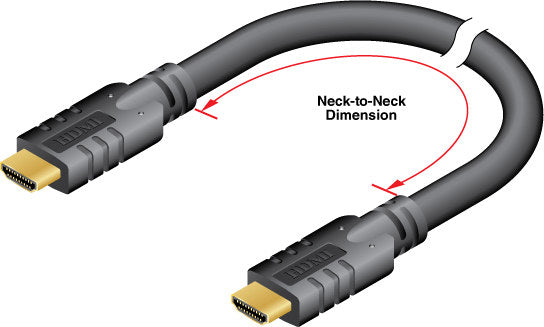

• Cable length: 3 ft (90 cm)
• Signal type: HDMI 2.0
• Connectors: one type A HDMI male at each end, gold plated
• Voltage: 30 V, operating range -25 C to 75 C
• Warranty: Extron Limited Lifetime Performance

Also referenced as Extron HDMIPro/3, HDMI-Pro-3, part number 2665003. Extron lists 26-650-03 as a retired part number.
