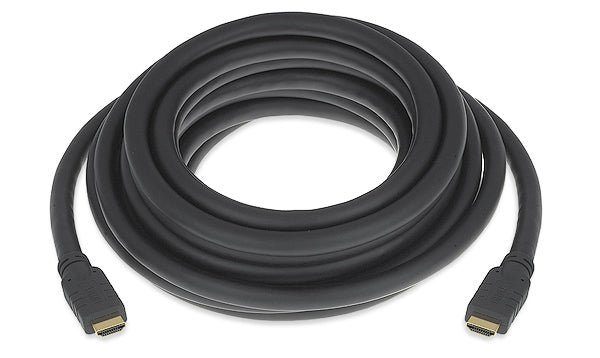

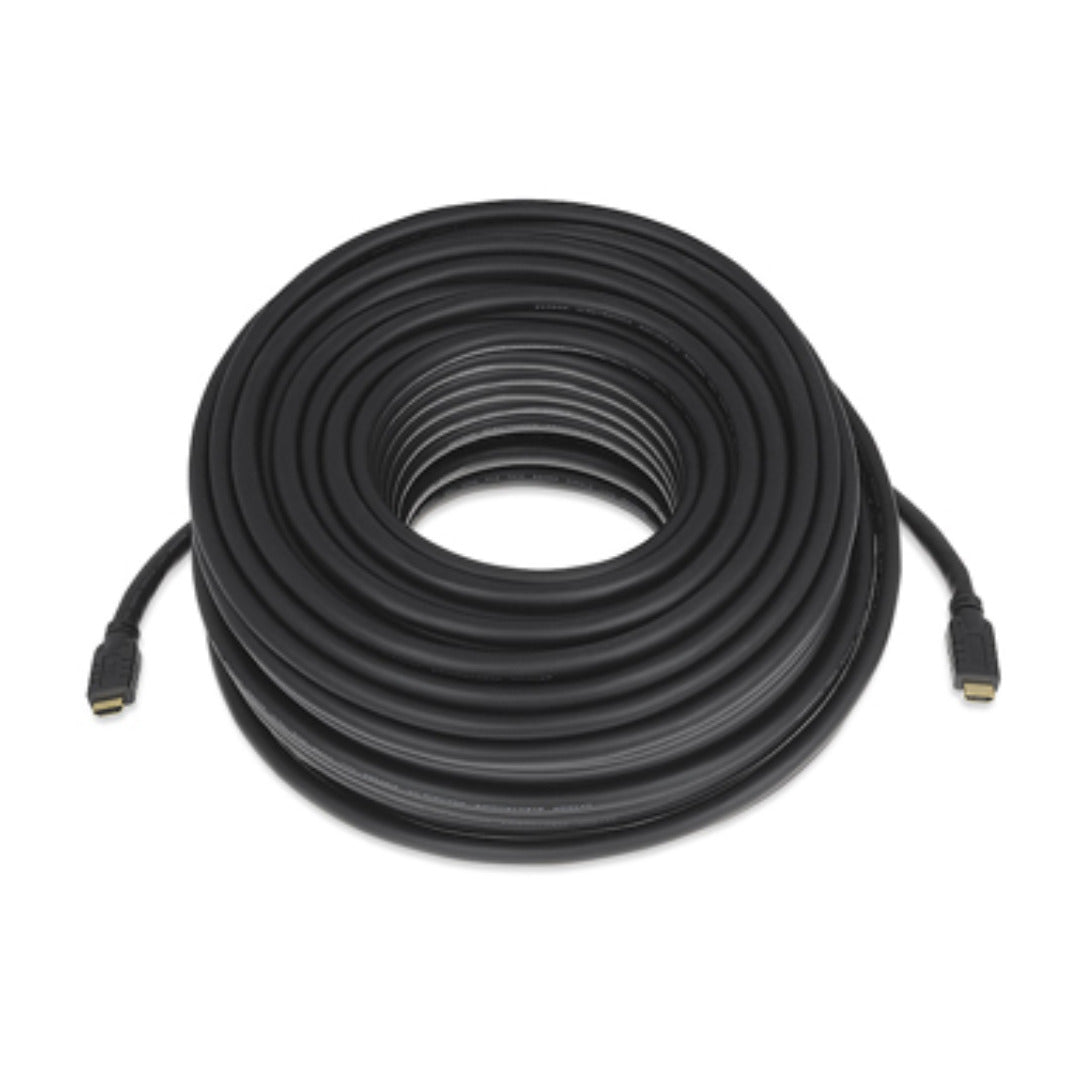

Extron HDMI Pro/200 (part number 26-650-200) is a 200 ft (60.9 m) male-to-male HDMI cable, the longest assembly Extron builds in this series.

Extron categorises this part simply as HDMI, with no 4K or High Speed qualifier, and publishes no resolution rating at 60.9 m. Treat it as a distance solution: one factory-terminated pull for situations where splicing or a field-assembled cable would be unacceptable, with a cable equalizer added to the path if 1080p at 60 Hz has to be maintained. The assembly uses 22 AWG tinned copper conductors and drain wire beneath aluminum/Mylar foil and a tinned copper braid, jacketed in PVC at 0.47 in diameter. Ampronix supplies 26-650-200 for venue and campus projects where the distance is fixed by the building.

Key Capabilities

• 200 ft (60.9 m) in a single continuous, factory-terminated length.
• Extron lists part 26-650-200 in its HDMI class.
• 22 AWG tinned copper conductors and drain wire, PVC jacketed.
• 0.47 in (12.0 mm) cable outer diameter, 4.50 in (114.3 mm) bend radius.
• Gold plated contacts in a connector body 2.46 in long including the plug.
• Far end crosstalk of 20 dB or more per 6 m.

Where It Is Used

Two hundred feet is reserved for the hardest routing cases: arena and stadium production paths, convention halls, airport and transit concourses, campus buildings with a central equipment room, and industrial plants where the display and the source sit on opposite sides of the facility.

Specifications at a Glance

• Cable length: 200 ft (60.9 m)
• Signal type: HDMI 2.0
• Connector type: 1 male type A HDMI to 1 male type A HDMI
• Temperature rating: -25 C to 75 C
• Warranty: Limited Lifetime Performance

Also referenced as Extron HDMIPro/200, HDMI-Pro-200, part number 26650200.
