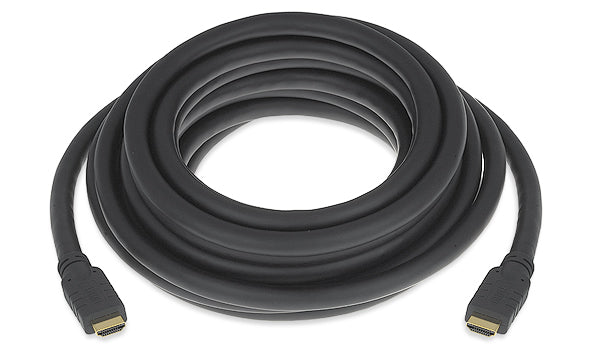

Extron HDMI Pro/150 (part number 26-650-150) is a 150 ft (45.7 m) male-to-male HDMI cable, among the longest factory-terminated assemblies in the Pro series.

At 45.7 m this cable exists to solve a routing problem rather than a resolution one. Extron files the part under Standard HDMI and publishes no resolution figure at this distance; the stated guidance is that a cable equalizer belongs in the path for 1080p at 60 Hz once a run passes 75 ft. The physical build matches the rest of the long lengths: 22 AWG tinned copper, foil and braid shielding, and a 0.47 in PVC jacket that pulls without deforming. Ampronix supplies 26-650-150 where a single continuous, manufacturer-terminated cable is a requirement of the install.

Key Capabilities

• Extron Standard HDMI classification for part number 26-650-150.
• 22 AWG tinned copper conductors and drain wire.
• Aluminum/Mylar foil plus tinned copper braid beneath a PVC jacket.
• 0.47 in (12.0 mm) outer diameter, 4.50 in (114.3 mm) bend radius.
• Rated for ambient conditions from -25 C to 75 C.
• Gold plated contacts inside each type A male connector.

Where It Is Used

This length is specified when the building dictates the run: multi-storey riser paths, stadium and arena camera positions, convention centre halls, transport terminals, and large industrial sites where a display sits a long way from the equipment room that drives it.

Specifications at a Glance

• Cable length: 150 ft (45.7 m)
• Signal type: HDMI 2.0
• Pair impedance: 100 ohms plus or minus 10 ohms
• Regulatory: UL Listed as type CM, CSA FT-1
• Warranty: Limited Lifetime Performance

Also referenced as Extron HDMIPro/150, HDMI-Pro-150, part number 26650150. Extron lists 26-650-150 as a retired part number.
