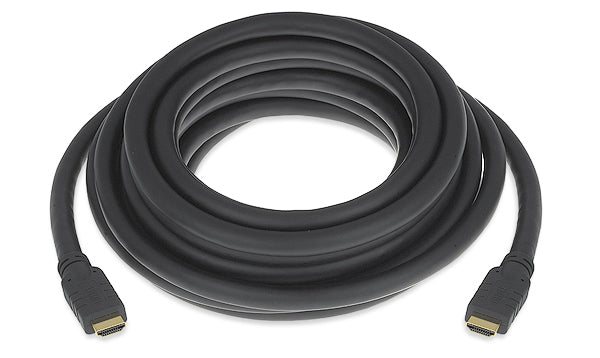

Extron HDMI Pro/125 (part number 26-650-125) is a 125 ft (38 m) male-to-male HDMI cable in the Standard HDMI class of the Pro series.

Thirty-eight metres is a distance most HDMI assemblies will not attempt, which is why Extron builds this length with 22 AWG tinned copper rather than the thinner wire common in shorter consumer cords. No resolution rating is published for a run this long, and Extron classifies the part as Standard HDMI. For 1080p at 60 Hz over anything past 75 ft, Extron advises inserting a cable equalizer. Ampronix supplies 26-650-125 when a documented, manufacturer-built long cable is preferable to field-assembled alternatives.

Key Capabilities

• Extron Standard HDMI classification for part number 26-650-125.
• 22 AWG conductors and drain wire, both tinned copper.
• Foil and tinned copper braid shielding beneath a PVC jacket.
• Far end crosstalk held to 20 dB or more per 6 m.
• Pair impedance of 100 ohms plus or minus 10 ohms.
• Gold plated contacts inside each type A male connector body.

Where It Is Used

This length serves campus and venue work: a broadcast truck bay to an inside control position, a warehouse or manufacturing floor display driven from a central rack, a large house of worship reaching a rear projector, and multi-floor riser paths where the source and the screen are simply far apart.

Specifications at a Glance

• Cable length: 125 ft (38 m)
• Signal type: HDMI 2.0
• Materials: tinned copper conductors, foil and braid shield, PVC jacket
• Voltage: 30 V
• Warranty: Limited Lifetime Performance

Also referenced as Extron HDMIPro/125, HDMI-Pro-125, part number 26650125. Extron lists 26-650-125 as a retired part number.
