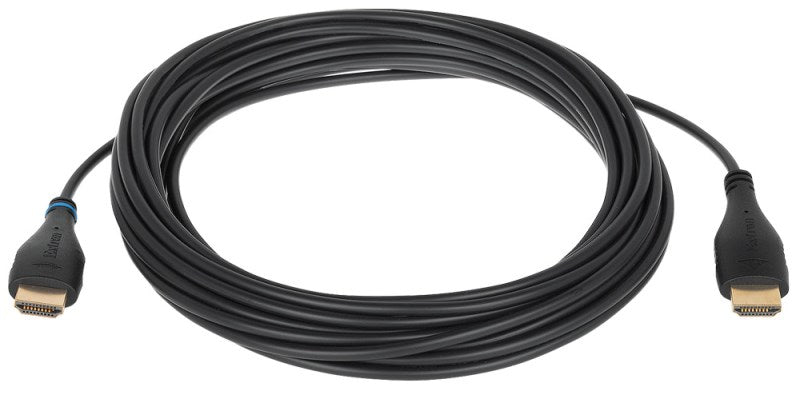

Extron HD Pro P/300 (part number 26-726-300) — the 300 ft flagship of Extron's HD Pro Plenum Series, and the longest length the family offers.

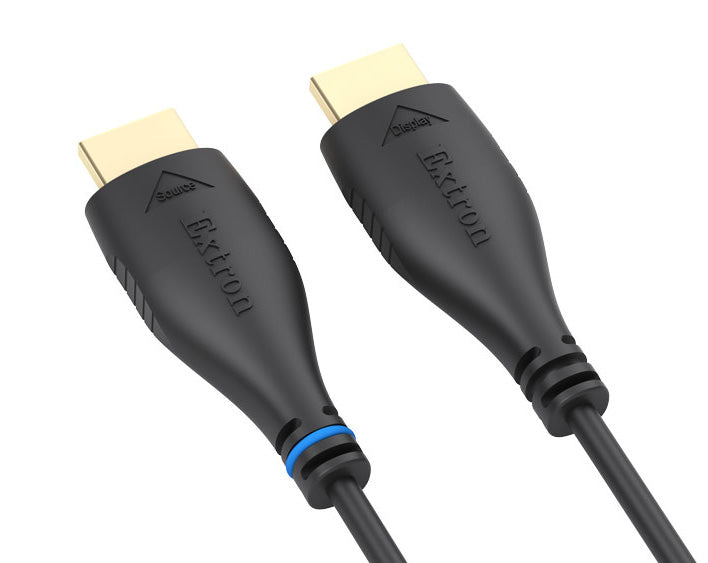

Three hundred feet (91.4 m) is well beyond anything a passive HDMI cable can attempt at 4K. The hybrid design makes it routine: multimode optical fiber transports the color channels, tinned 28 AWG copper handles control, and the electronics live inside standard HDMI type A connector shells measuring 2.40 in long by 0.84 in wide and 0.49 in thick. Despite the distance, the cable is still only 0.16 in (4 mm) thick and needs no more than a 0.79 in (20 mm) bend radius.

Key Capabilities

• Longest reach in the series at 300 ft, in a single unbroken run
• 18.0 Gbps of bandwidth for 4K/60 at 4:4:4 chroma with HDR
• 100 N (22.5 lbs) tensile strength and 111 N (25 lbs) pull strength
• UL-CMP plenum rated PVC jacket for air-handling pathways
• Supports EDID, HDCP 2.3 and CEC as well as multichannel audio
• Entirely source powered; no injector or external adapter is used

Where It Is Used

Stadium and arena bowls, exhibition halls, airport terminals, large civic and legislative chambers and campus-wide signage backbones all call for a 300 ft link at some point. It is the length to specify when the source room and the display are on opposite ends of a very large building.

Specifications at a Glance

• Cable length: 300 ft (91.4 m)
• Connector dimensions: 2.40 in L x 0.84 in W x 0.49 in thick
• Max tensile strength: 100 N (10.2 kg, 22.5 lbs)
• Standards: up to HDMI 2.0b with HDCP 2.3 and HDR
• Regulatory: CE, UL-CMP, RoHS, WEEE; three-year warranty

Also referenced as Extron HDProP/300, HD-Pro-P-300, part number 26726300.
