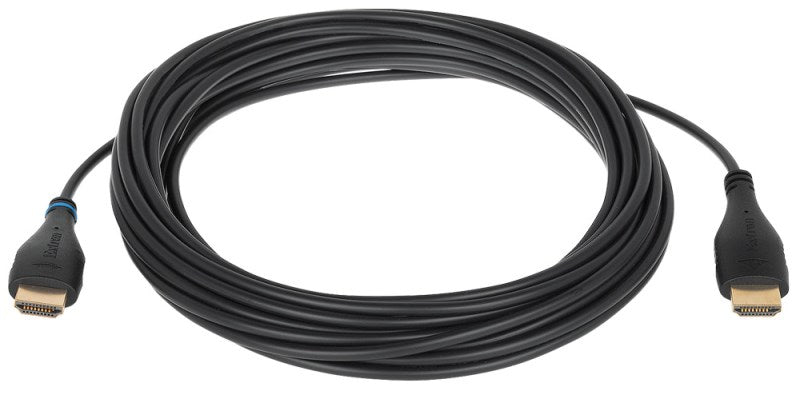

Extron HD Pro P/250 (part number 26-726-250) — 250 ft of CMP plenum HDMI cable for the longest runs in a building.

At 250 ft (76.2 m) this is one of the two longest members of the HD Pro Plenum Series. Video travels as light on multimode fiber, so distance does not erode the signal the way it does on passive copper, and the tinned 28 AWG copper conductors keep EDID, HDCP and CEC working normally at the far end. The PVC jacket carries a UL-CMP listing, so the cable can occupy a return-air ceiling where CMP is mandated by code.

Key Capabilities

• 250 ft in one continuous assembly with no repeater in the middle
• 4K/60 at 4:4:4 chroma and HDR, up to 18.0 Gbps of video data
• NEC CMP plenum rating; CE, UL-CMP, RoHS and WEEE compliant
• Rated to withstand 200 N (45 lbs) of compression load in a tray
• Draws power from the source HDMI port, so no supply is installed

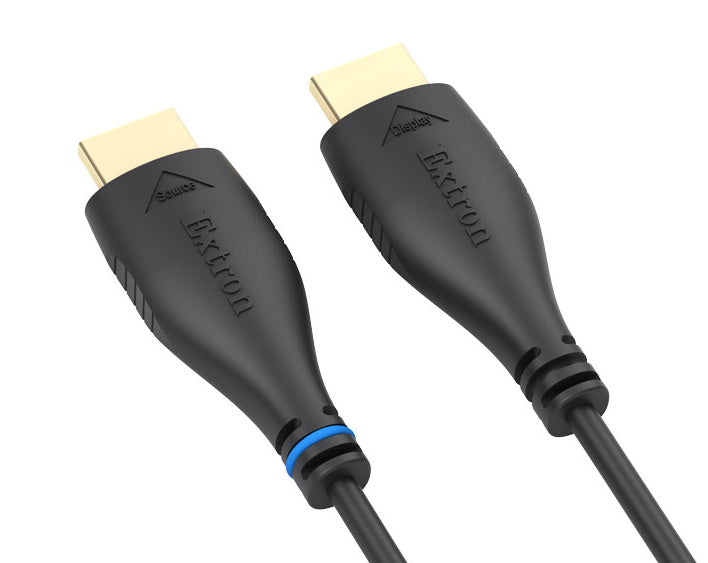

• Blue ring at the source connector keeps the directional install correct

Where It Is Used

Runs of this magnitude appear in arenas, convention centers, megachurch sanctuaries, transit terminals and large corporate campuses, where the head-end rack and the display can sit hundreds of feet apart across a floor plate or up several stories.

Specifications at a Glance

• Cable length: 250 ft (76.2 m)
• Max compression load resistance: 200 N (20.4 kg, 45 lbs)
• Resolution: 4096x2160 and 3840x2160 at up to 60 Hz
• Cable outer diameter 0.16 in (4 mm); bend radius 0.79 in (20 mm)
• Connectors: HDMI type A male, gold plated; three-year warranty

Also referenced as Extron HDProP/250, HD-Pro-P-250, part number 26726250.
