Extron HD Pro P/200 200ft Plenum Optical HDMI Cable 26-726-200
Extron HD Pro P/200 200ft Plenum Optical HDMI Cable 26-726-200
Extron HD Pro P/200 Plenum Active Optical HDMI Cable
- • 200 ft (60.9 m) HDMI run with no external power supply required
- • HDMI 2.0b and HDCP 2.3 signaling maintained end to end
- • Up to 18.0 Gbps carries 4K/60 at 4:4:4 chroma with HDR
- • Frame rates of 24, 25, 30 and 60 fps supported
- • Optical video path is highly resistant to EMI and RFI
- • NEC CMP plenum rated PVC jacket, 0.16 in (4 mm) diameter

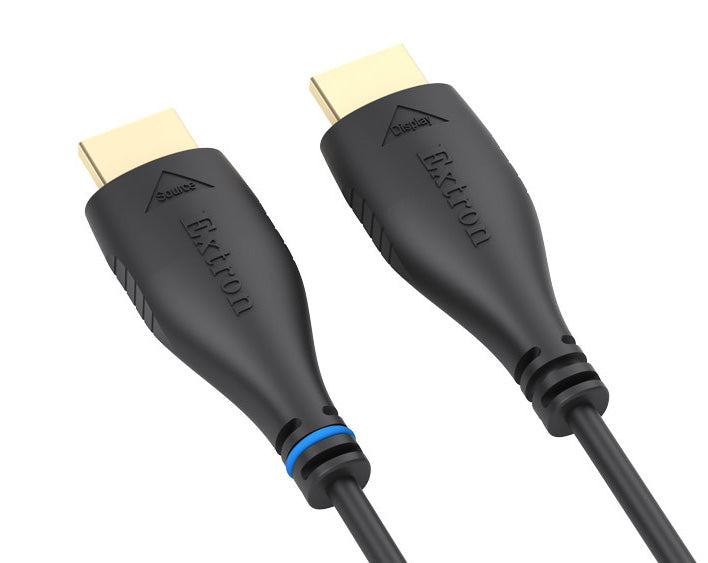

- • Gold-plated HDMI type A male connectors at each end
- • CE, UL-CMP, RoHS and WEEE listed; three-year warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

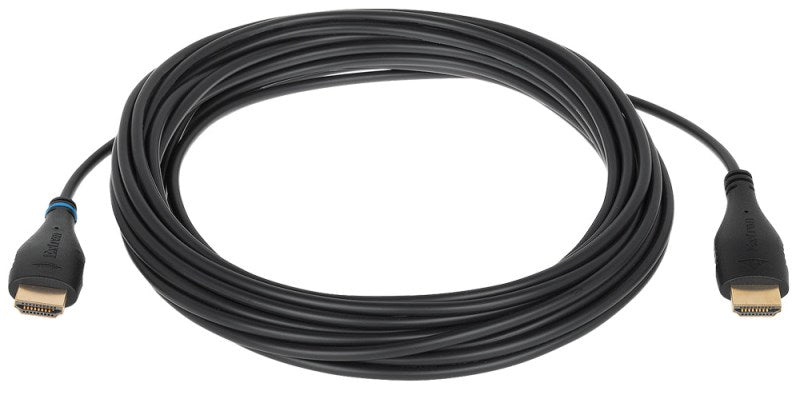

Extron HD Pro P/200 (part number 26-726-200) — 200 ft of HDMI 2.0b connectivity with no power supply anywhere in the run.
What makes a 200 ft (60.9 m) HDMI run practical is that the cable powers itself. The active optical electronics inside each connector draw what they need from the source device's HDMI port, so there is no injector to mount, no outlet to find above a ceiling and no third component to fail years later. Video moves on multimode fiber; EDID, HDCP 2.3 and CEC ride the tinned copper conductors alongside it.
Key Capabilities
- HDMI 2.0b and HDCP 2.3 delivered a full 200 ft from the source
- Up to 18.0 Gbps for 4K/60 at 4:4:4 chroma with HDR
- Zero external power: no injector, adapter or midspan supply
- Frame rates of 24, 25, 30 and 60 fps across all supported resolutions
- NEC CMP plenum rated jacket for return-air installation
- Strong immunity to EMI and RFI along the entire optical span
Where It Is Used
Two hundred feet spans a stadium concourse, a large exhibition hall, a multi-story atrium video wall or a broadcast plant where the control room is nowhere near the studio floor. It is also used in transportation hubs and casino floors, where display clusters sit far from centralized signage servers.
Specifications at a Glance
- Cable length: 200 ft (60.9 m)
- Signal type: up to HDMI 2.0b, HDCP 2.3, HDR
- Chroma sampling: 4:4:4, 4:2:2 or 4:2:0; color depth 8, 10 or 12 bits
- Materials: multimode fiber and tinned copper, 28 AWG, PVC jacket
- Regulatory: CE, UL-CMP, RoHS, WEEE; three-year warranty
Also referenced as Extron HDProP/200, HD-Pro-P-200, part number 26726200.
