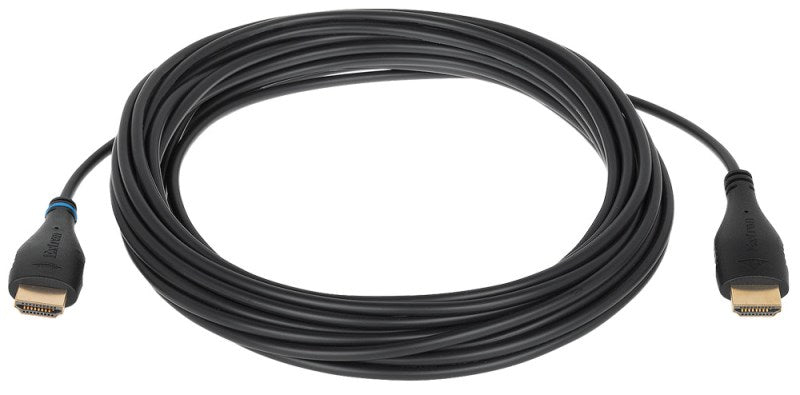

Extron HD Pro P/150 (part number 26-726-150) — 150 ft of plenum HDMI cable engineered to survive a long conduit pull and still deliver 4K.

Installers rate this length by two things: whether the picture holds up at the far end, and whether the cable survives the pull. The optical video core answers the first, keeping 4096x2160 at 60 Hz with 4:4:4 chroma intact over 150 ft (45.7 m). The mechanical figures answer the second — 111 N (25 lbs) of pull strength, 100 N (22.5 lbs) of tensile strength and a 200 N (45 lbs) compression load rating, on a jacket that needs only a 0.79 in (20 mm) bend radius at corners.

Key Capabilities

• Full 18.0 Gbps of video bandwidth over the entire 150 ft distance
• HDMI 2.0b with HDCP 2.3 authentication and HDR support
• Multi-mode fiber video conductors paired with tinned 28 AWG copper
• UL-CMP rated jacket approved for plenum air-handling spaces
• Draws operating power from the connected HDMI source device

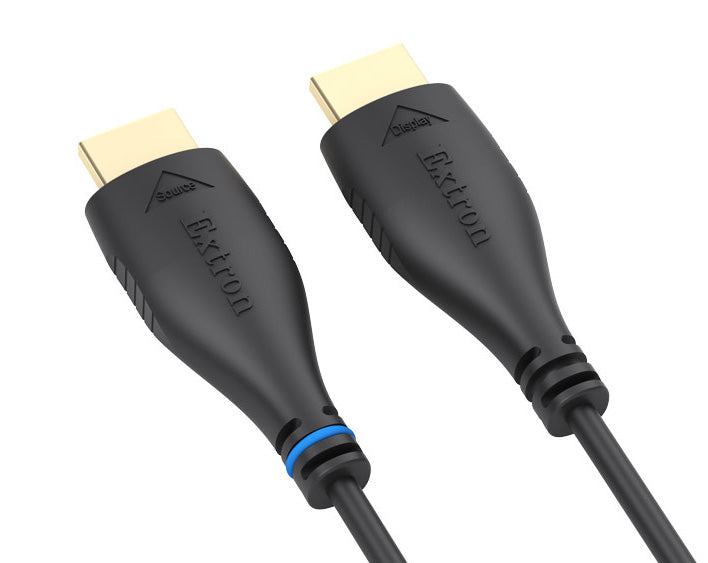

• Unidirectional build with clearly marked, color-coded ends

Where It Is Used

Arena scoreboards, convention center breakout halls, large worship auditoriums and multi-floor signage risers routinely need 150 ft between the source rack and the display. The same length serves campus lecture halls and hospital conference theaters where equipment rooms sit on a different corridor entirely.

Specifications at a Glance

• Cable length: 150 ft (45.7 m)
• Max video data rate: 18.0 Gbps (6 Gbps per color)
• Max pull strength: 111 N (11.3 kg, 25 lbs)
• Bend radius 0.79 in (20 mm) on a 0.16 in (4 mm) jacket
• Connectors: gold-plated HDMI type A male, both ends; 3-year warranty

Also referenced as Extron HDProP/150, HD-Pro-P-150, part number 26726150.
