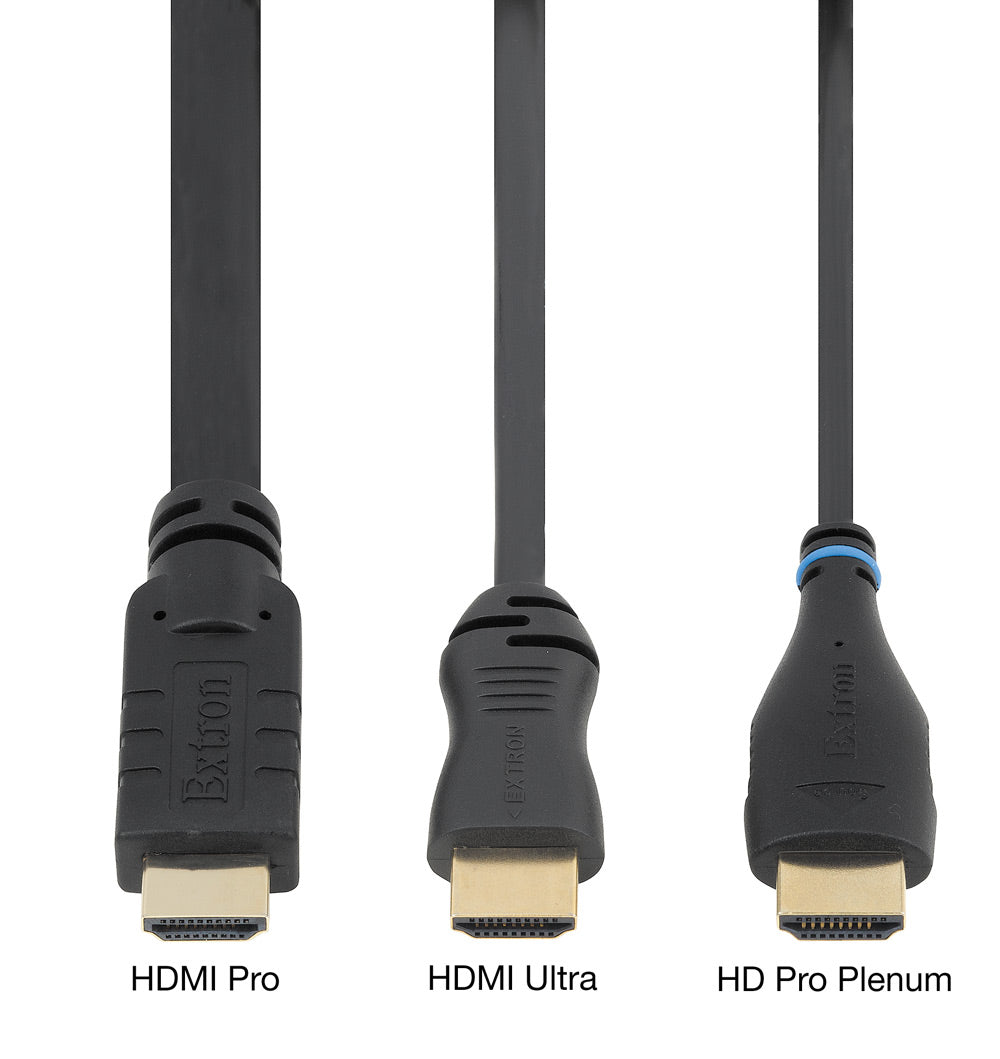

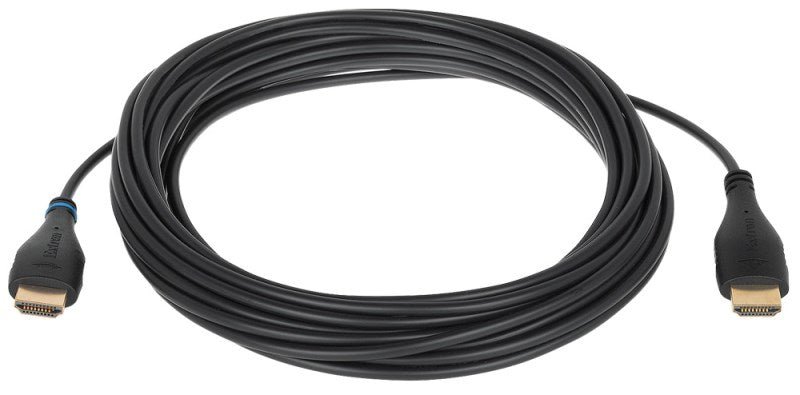

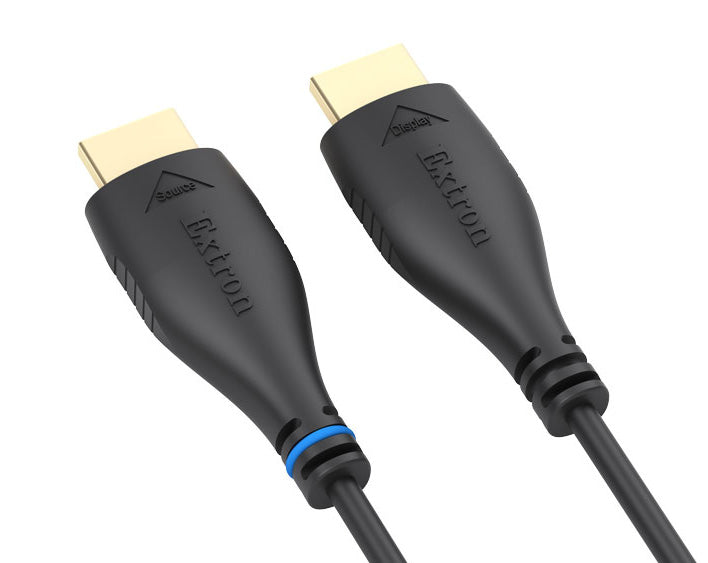

Extron HD Pro P/100 (part number 26-726-100) — a 100 ft plenum HDMI cable that keeps an 18 Gbps 4K signal intact from rack to display.

One hundred feet (30.4 m) is far past the practical limit of passive HDMI copper at 4K. This cable answers that by sending the three high-speed color channels down multimode glass fiber while tinned 28 AWG copper handles EDID, HDCP and CEC traffic. Installers get a single continuous pull with a gold-plated HDMI type A plug on each end, rather than a transmitter, a receiver, a category cable and two more points of failure.

Key Capabilities

• Sustains up to 18.0 Gbps, or 6 Gbps for each color channel, across 100 ft
• HDMI 2.0b compliant with HDCP 2.3 authentication and HDR support
• Handles 4096x2160 and 3840x2160 at 60 Hz with 4:4:4 chroma
• Gold-plated contacts hold a low-resistance connection over long service life
• UL-CMP plenum jacket approved for air-handling pathways
• Source-powered design needs no outlet at either end of the run

Where It Is Used

At 100 ft this cable serves auditoriums, divisible ballrooms, houses of worship and lecture theaters where the projector hangs far from the equipment rack. Broadcast facilities and hospital imaging departments use the same length to feed a remote review monitor from a centralized source room.

Specifications at a Glance

• Cable length: 100 ft (30.4 m)
• Max video data rate: 18.0 Gbps (6 Gbps per color)
• Frame rates: 24, 25, 30 or 60 fps; chroma 4:4:4, 4:2:2 or 4:2:0
• Outer diameter 0.16 in (4 mm); bend radius 0.79 in (20 mm)
• CE, UL-CMP, RoHS and WEEE compliant; covered three years

Also referenced as Extron HDProP/100, HD-Pro-P-100, part number 26726100.
