Details

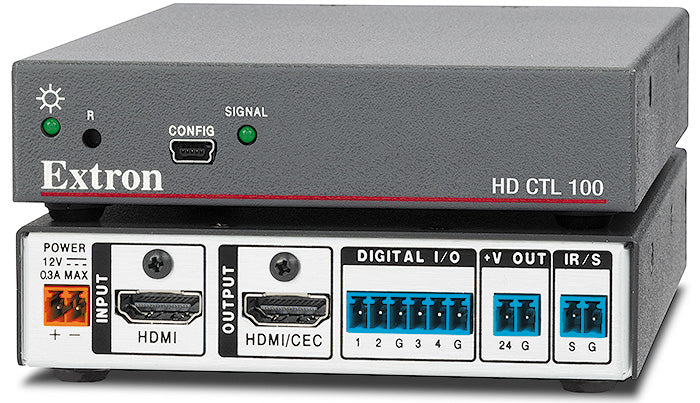

Extron HD CTL 100 (part number 60-1633-01) — a compact workspace automation controller that switches a display on and off without anyone touching a remote.

Small meeting rooms and huddle spaces rarely justify a control processor and a touchpanel, yet they still suffer from displays left on all weekend and users hunting for the right input. The HD CTL 100 sits in line with the HDMI feed: when it sees an active signal it powers the display up and selects the correct input over CEC. Pair it with an Extron OCS 100 occupancy sensor and the display follows the room instead of the cable. Configuration is done with Extron's Windows program or SIS commands over USB.

Key Capabilities

Automatic display power and input selection on HDMI signal detection
Display control over CEC, unidirectional RS-232 or IR
Passes HDMI 2.0 signals at up to 18 Gbps (6 Gbps per color)
Supports resolutions to 4K/60 at 4:4:4 chroma sampling
Four configurable digital I/O ports on 3.5 mm 3-pole captive screw connectors
+24 VDC output at 50 mA powers a device such as an occupancy sensor
Quarter-rack metal enclosure, 1.0 x 4.3 x 3.0 in, 1.0 lbs (0.5 kg)

Where It Is Used

Huddle rooms, small meeting rooms, breakout spaces, focus booths and touch-down desks — anywhere a single display needs reliable automatic control without the cost of a full control system. Also used behind flat panels in classrooms and clinical consult rooms.

Specifications at a Glance

Video: HDMI 2.0, 18 Gbps maximum data rate, 1 female HDMI type A in and out
Control: CEC via pin 13, IR 30 to 60 kHz, RS-232 to 115200 baud
Power: external supply, 12 VDC at 0.5 A; device draws 2.7 watts
Enclosure: metal, 1.0 in H x 4.3 in W x 3.0 in D (25 x 109 x 76 mm)
Warranty: 3 years parts and labor, plus 7 years on the Everlast power supply

Also referenced as Extron HDCTL100, HD-CTL-100, part number 60163301.

Specifications

Part Number: 60-1633-01

Manufacturer: Extron

Model: HD CTL 100

Condition: New

Product Type: Workspace automation controller

Signal Type: HDMI 2.0

Maximum Video Data Rate: 18 Gbps (6 Gbps per color)

Maximum Resolution: Video resolutions up to 4K/60 at 4:4:4

Frame Rate: 24, 25, 30, 50 or 60 fps

Chroma Sampling: 4:4:4, 4:2:2 or 4:2:0

Color Bit Depth: 8, 10 or 12 bits per color

Video Input: 1 female HDMI, type A; horizontal frequency 15 kHz to 270 kHz, vertical frequency 24 Hz to 240 Hz (for resolutions up to 18 Gbps)

Video Output: 1 female HDMI, type A

CEC Control: 1 female HDMI type A; CEC control via pin 13

IR / Serial Control Port: (1) 3.5 mm captive screw connector, 2 pole, for unidirectional (transmit only) RS-232 and IR control

IR Control: TTL level (0 to 5 V) modulated infrared control from 30 kHz to 60 kHz

Serial Control: Plus or minus 5 V RS-232 control; 9600 (default), 19200, 38400, 57600 or 115200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), even or odd

Digital Inputs and Outputs: 4 configurable digital inputs/outputs on (2) 3.5 mm captive screw connectors, 3 pole; input voltage range 0-24 VDC; input impedance 10K ohms; programmable pullup 1K ohms to +5 VDC; thresholds low to high greater than 2.0 VDC, high to low less than 0.8 VDC

Auxiliary Power Output: +24 VDC, 50 mA on (1) 3.5 mm captive screw connector, 2 pole

Configuration Port: 1 female USB mini B on the front panel; USB 2.0, low speed

Program Control: Extron HD CTL 100 Configuration Program for Windows; Extron Simple Instruction Set (SIS)

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 0.5 A, 6 watts

Power Consumption: Device 2.7 watts; device and power supply 3.5 watts

Thermal Dissipation: Device 4.2 BTU/hr; device and power supply 7.0 BTU/hr

Ambient Temperature and Humidity: Storage -40 to +158 F (-40 to +70 C); operating +32 to +122 F (0 to +50 C); 10% to 90% noncondensing

Cooling: Convection, no vents

Mounting: Rack mount with an optional 1U rack shelf; furniture mount with an optional under-desk mounting kit

Enclosure: Metal; 1.0 in H x 4.3 in (quarter rack) W x 3.0 in D (25 x 109 x 76 mm)

Product Weight: 1.0 lbs (0.5 kg)

Regulatory Compliance: CE, c-UL, UL, KC, PSE, RoHS and WEEE

Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

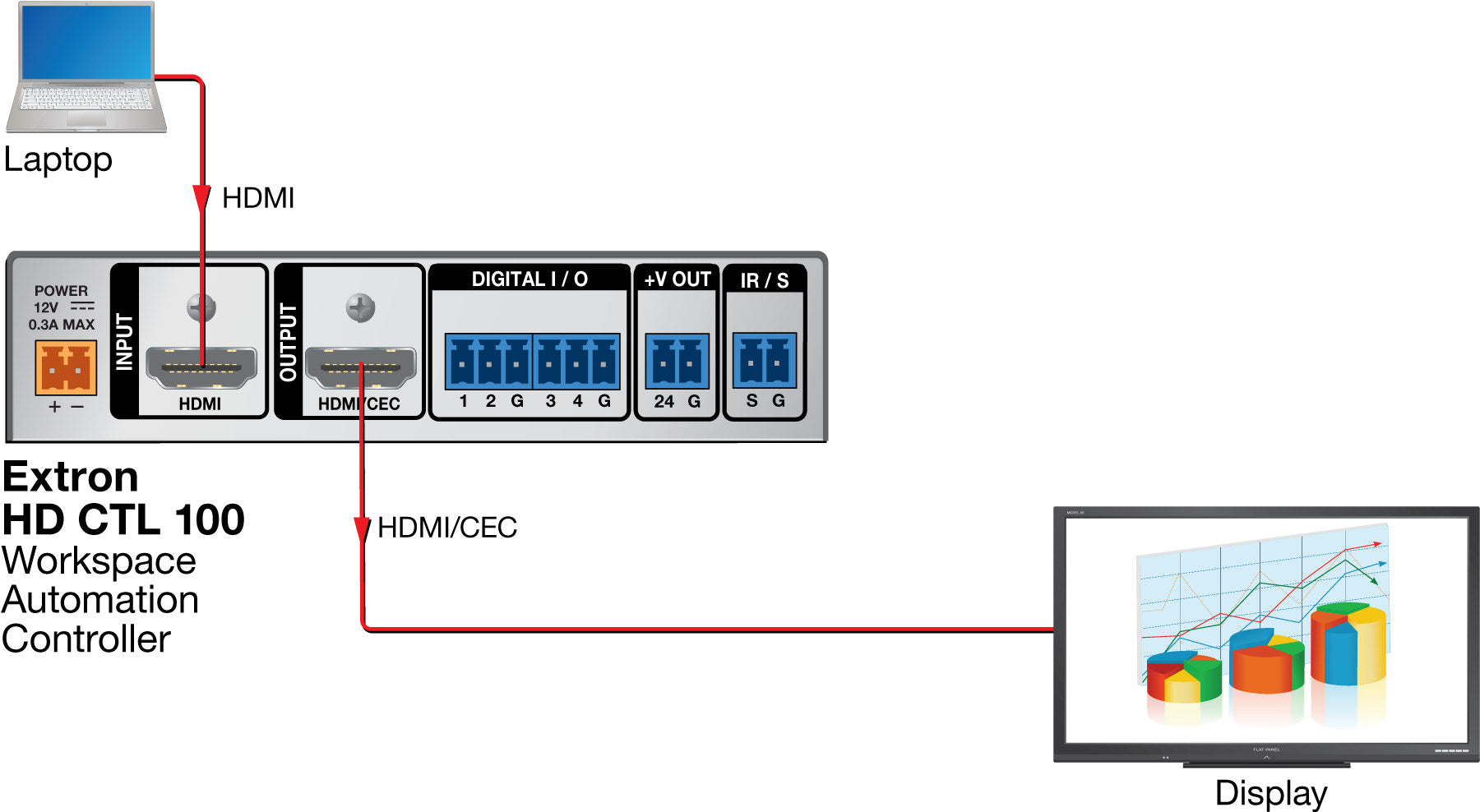

Diagram
