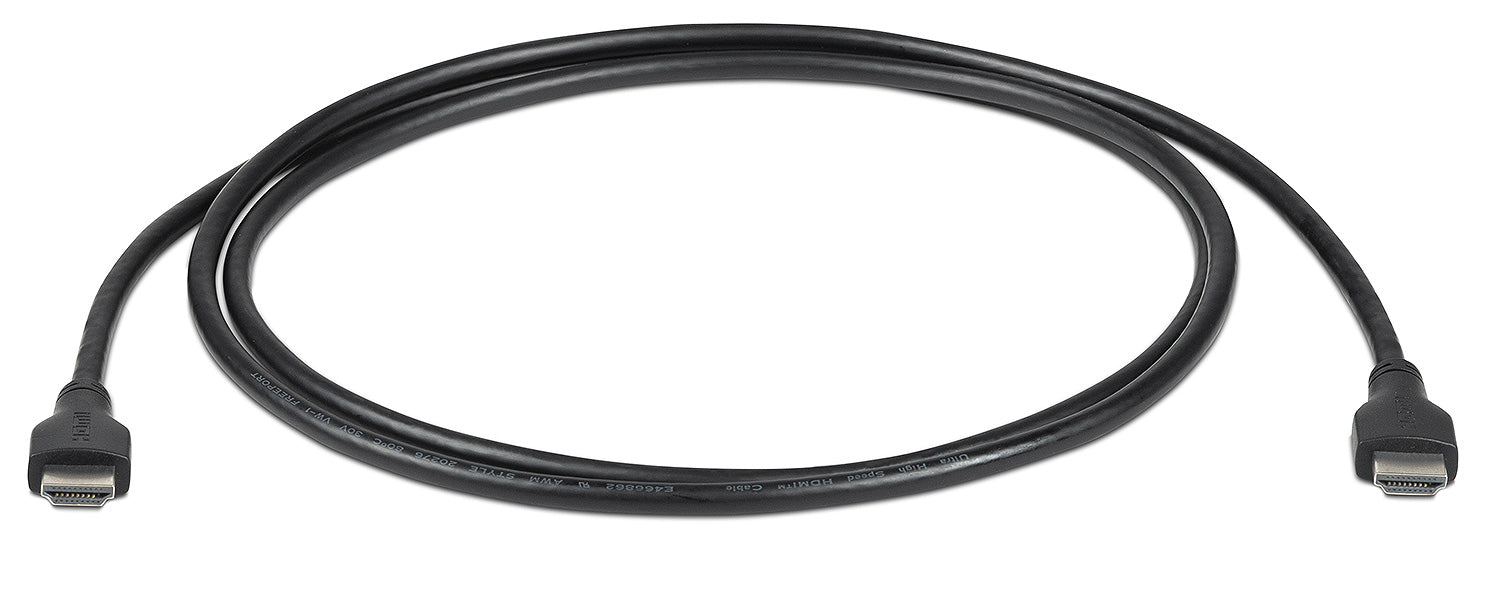

Extron HD 8K/6 (part number 26-743-06) — a 6 ft (1.8 m) Ultra High Speed HDMI cable rated to carry 48 Gbps.

HDMI 2.1 raised the ceiling far above what older High Speed cabling can move, and this is the assembly Extron built for that ceiling. It handles a maximum video data rate of 48.1 Gbps, which is what 8K at 60 Hz or 4K at 120 Hz actually costs. Signalling covers HDCP 1.4 and 2.3 with HDR, and the cable passes EDID, CEC, HEC and eARC straight through, so an audio return path or a gaming feature like VRR or ALLM works without an intermediate device.

Key Capabilities

• 48.1 Gbps maximum video data rate over HDMI 2.1
• Resolutions to 8K (7680x4320) at 60 Hz, plus 4K (3840x2160) at 120 Hz
• Frame rates of 24, 25, 30, 50, 60 or 120 fps at up to 12 bits per color
• HDCP 1.4 and HDCP 2.3 with HDR support
• EDID, HDCP, CEC, HEC and eARC pass-through
• 28 AWG tinned copper in a 0.24 in (6 mm) CMX-rated jacket
• Extron Limited Lifetime Performance warranty

Where It Is Used

Six feet is a rack or credenza length: an 8K-capable player or workstation feeding a nearby display, a switcher output on a shelf below the panel, or a Cable Cubby and similar enclosure where Extron certifies this cable for use alongside AVEdge and HSA Hideaway products.

Specifications at a Glance

• Length: 6 ft (1.8 m)
• Max video data rate: 48.1 Gbps
• Standards: up to HDMI 2.1, HDCP 1.4 and HDCP 2.3, HDR
• Cable outer diameter: 0.24 in (6 mm)
• Bend radius: 1.90 in (48 mm)

Also referenced as Extron HD8K/6, HD-8K-6, part number 2674306.
