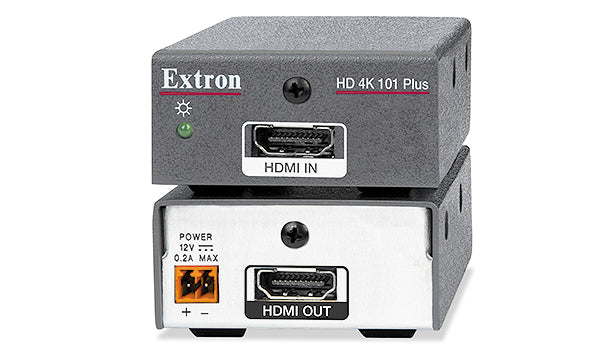

Extron HD 4K 101 Plus (part number 60-1621-01) — an HDMI cable equalizer that restores marginal 4K/60 signals at the far end of a long cable run.

HDMI at 18 Gbps is unforgiving: past a certain cable length the eye closes, jitter climbs, and the display drops to black or sparkles. The HD 4K 101 Plus sits immediately ahead of the display, re-opens the incoming eye pattern, corrects skew between the TMDS pairs, and applies pre-emphasis on the way out. It also relays DDC and HDCP traffic, so EDID reads and key exchange complete normally from end to end.

Key Capabilities

Handles the full HDMI 2.0b rate of 18 Gbps, 6.0 Gbps per color, at a 600 MHz pixel clock.
Carries 4096x2160 at 60 Hz with 4:4:4 sampling, plus UHD, 1920x1200 and 1080p.
Compliant with HDCP 1.4 and 2.3, and interoperable with DVI 1.0 using a cable or adapter.
Input reach spans 35 ft (10 m) at 4096x2160/60 out to 175 ft (53 m) at 720p/30.
Takes its power from the source over pin 18, or from the optional 12 VDC supply.
Metal one-eighth rack wide body, 0.1 lb, mountable with optional brackets.

Where It Is Used

Digital signage headends, boardroom and lecture-hall displays, operating-room and diagnostic imaging monitors, broadcast studios, simulation labs and rental staging kits — anywhere a 4K source has to terminate on a display that a single HDMI cable cannot reach cleanly on its own.

Specifications at a Glance

Maximum data rate: 18 Gbps (6.0 Gbps per color)
Standards: DVI 1.0, HDMI 2.0b, HDCP 1.4 and 2.3
Connectors: one female HDMI type A in, one female HDMI type A out
Output cable length: up to 12 ft (3.6 m)
Power draw: 0.8 W at the device, 1.4 W with the power supply

Also referenced as Extron HD4K101Plus, HD-4K-101-Plus, part number 60162101.

Specifications

Part Number: 60-1621-01

Manufacturer: Extron

Model: HD 4K 101 Plus

Condition: New

Product Type: 4K/60 HDMI cable equalizer

Maximum Data Rate: 18 Gbps (6.0 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range: Up to 4096x2160 @ 60 Hz (4K), 3840x2160 @ 60 Hz (UHD), 1920x1200 or 1080p @ 60 Hz

Formats: RGB and YCbCr digital video

Standards: DVI 1.0, HDMI 2.0b, HDCP 1.4 and 2.3

Signal Type: HDMI 2.0b, HDCP 1.4 and 2.3

Frame Rates: 24, 25, 30, 50 or 60 fps, subject to the maximum data rate limit

Chroma Sampling: 4:4:4, 4:2:2 or 4:2:0, subject to the maximum data rate limit

Color Bit Depth: 8, 10 or 12 bits per color, subject to the maximum data rate limit

Impedance: 100 ohms

Input Video Signal: 1.2 Vp-p (TMDS)

Input DDC Signal: 5 Vp-p (TTL)

Video Input: 1 single link HDMI; DVI supported with an appropriate cable or adapter

Video Input Connector: 1 female HDMI type A

Horizontal Frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Input Cable Length: 4096x2160 @ 60 Hz 35 ft (10 m); 3840x2160 @ 60 Hz 50 ft (15 m); 4K/UHD @ 30 Hz 75 ft (23 m); 1080p, 1920x1080 or 1920x1200 @ 60 Hz 125 ft (38 m); 1080p, 1920x1080 @ 24/30 Hz 150 ft (46 m); 1080i, 720p, 1280x1024, 1024x768 @ 60 Hz 150 ft (46 m); 720p @ 30 Hz 175 ft (53 m). Distance varies with resolution, cable, source and display.

Video Output: 1 single link HDMI; DVI supported with an appropriate cable or adapter

Video Output Connector: 1 female HDMI type A

Output Cable Length: Up to 12 ft (3.6 m)

Power Supply: External and optional; the unit can also be powered by the source via pin 18. Input 100-240 VAC, 50-60 Hz. Output 12 VDC, 1 A, 12 watts

Power Consumption: Device 0.8 W; device and power supply 1.4 W

Ambient Thermal Dissipation: Device 1.6 BTU/hr; device and power supply 3.4 BTU/hr

Temperature/Humidity: Storage -40 to +158 F (-40 to +70 C), 10% to 90% noncondensing; operating +32 to +122 F (0 to +50 C), 10% to 90% noncondensing

Cooling: Convection, no vents

Mounting: Yes, with optional mounting brackets

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 2.2 in W x 3.0 in D, one-eighth rack wide (2.5 cm H x 5.6 cm W x 7.6 cm D). Depth excludes connectors.

Product Weight: 0.1 lbs (under 0.1 kg)

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, RoHS, WEEE, UL, VCCI

Warranty: 3 years parts and labor

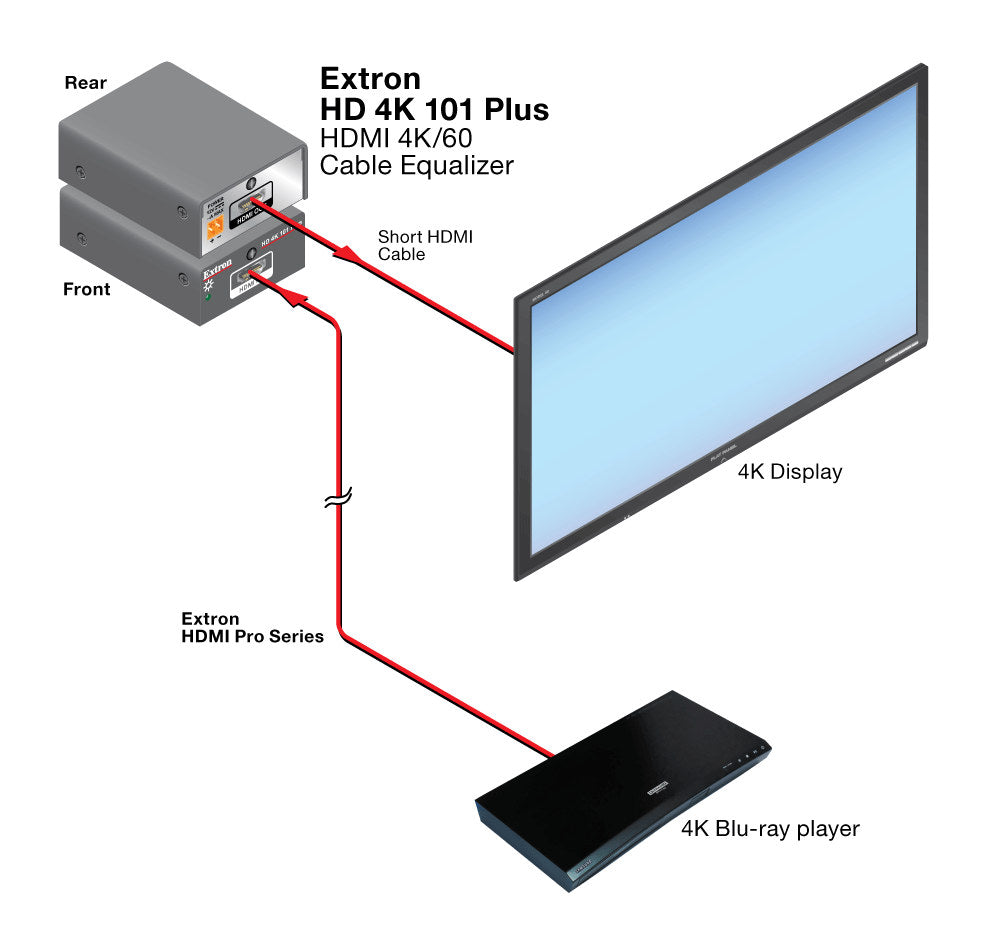

Diagram
