Part Number: 42-271-01
Manufacturer: Extron

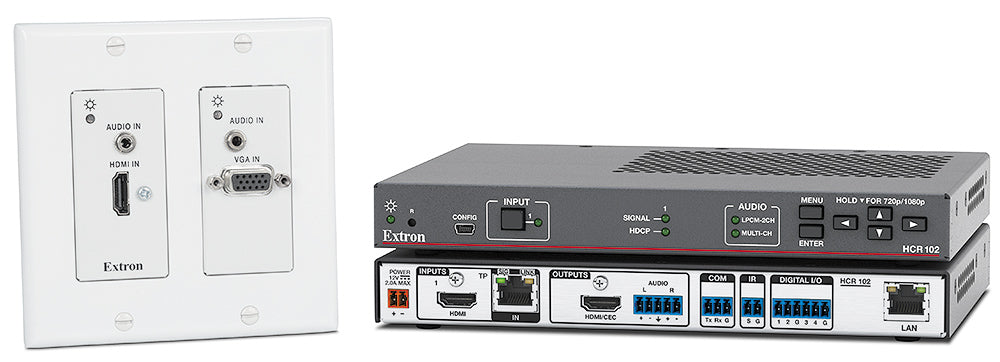

Model: HC 403
Condition: New
Version: Meeting Collaboration System, Decorator Tx, White
System Components: HCT 102 D switching transmitter and HCR 102 scaling receiver, sold together as a system
Video Input - Analog: HCT 102 D: 1 VGA RGBHV
Video Input - Digital: HCT 102 D: 1 HDMI (or single link DVI-D with the appropriate DVI-HDMI adapter)
Transmitter Video Connectors: 1 female 15-pin HD; 1 female HDMI type A
Receiver Video Input: HCR 102: 1 HDMI (or single link DVI-D with the appropriate DVI-HDMI adapter), 1 female HDMI type A
Analog Video Nominal Level: 0.7 Vp-p
Analog Video Min./Max. Level: 0.3 V to 1.5 Vp-p with no offset at unity gain
Analog Video Impedance: 75 ohms
Horizontal Frequency: Analog: 15 kHz to 100 kHz
Vertical Frequency: Analog: 30 Hz to 75 Hz
VGA Sync Input Type: RGBHV, bi-level and tri-level sync
VGA Sync Input Level: 1.9 V to 5.0 Vp-p; maximum input voltage 5.0 Vp-p
VGA Sync S/N: >90 dB at maximum input (unweighted)
HDMI Equalization: Automatic
HDMI Input Cable Length: Up to 50 ft (15 m) for resolutions to 1920x1200 or 1080p @ 60 Hz and 2K, using Extron HDMI Pro Series cable
Input Resolution Range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking), 480p, 576p, 720p, 1080i, 1080p, and 2K
Return Loss: <-40 dB @ 5 MHz
DC Offset (max. allowable): 1.5 V
Standards: DVI 1.0, HDMI 1.4, HDCP 1.4
Twisted Pair Interconnect: 1 female RJ-45 on each unit (transmitter and receiver)
Termination Standard: TIA/EIA T568B
Transmission Distance: Up to 230 ft (70 m) over shielded twisted pair (STP) or XTP DTP 24 STP cable with a 1080p, 60 Hz signal
Cable Requirements: Solid conductor, 24 AWG or better
Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)
Decoder: 12 bit digital (3D-adaptive comb filter)
Analog Sampling: 12 bits per color, 170 MHz standard (RGB)
Digital Pixel Data Bit Depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)
Colors: 1 billion (10 bit processing)
Video Output: 1 HDMI (with CEC)
Video Output Connector: 1 female HDMI
HDMI Peripheral Device Power: 250 mA
Scaled Output Resolutions: 640x480 through 1920x1200, including 800x600, 1024x768, 1280x800, 1280x1024, 1366x768, 1400x1050, 1440x900, 1600x1200 and 1680x1050, plus HDTV 480p, 576p, 720p, 1080i, 1080p and 2048x1080
Audio Gain: Unbalanced output: 0 dB; balanced output +6 dB
Audio Frequency Response: 20 Hz to 20 kHz, ±0.5 dB
THD + Noise: <0.1%, 20 Hz to 20k Hz at nominal level
Audio S/N: >90 dB, at maximum input (unweighted)
Crosstalk: ≤-80 dB @ 1 kHz, fully loaded
Stereo Channel Separation: >80 dB @ 1 kHz
Audio Input: 2 analog stereo, unbalanced, or 2 digital audio embedded in the HDMI signal
Audio Input Connectors: 2 female 3.5 mm mini stereo jacks (tip L, ring R, sleeve ground); 2 female HDMI Type A
HDMI Audio Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Audio Input Impedance: 10k ohms, DC coupled
Audio Input Nominal Level: -10 dBV, unbalanced
Audio Input Maximum Level: +6 dBV, unbalanced
CMRR: >60 dB typical, unbalanced, @ 1 kHz
Audio Output: 1 analog line level stereo, balanced or unbalanced (variable); 1 digital embedded in HDMI (fixed)
Audio Output Connectors: (1) 3.5 mm captive screw connector, 5 pole; 1 female HDMI
Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced
Audio Output Maximum Level (Hi-Z): >+15 dBu, balanced; >+9 dBu, unbalanced
Gain Error: ±0.5 dB channel to channel
Output Volume Range: 0 to 100% in 1% steps
Contact Closure Remote Control: (1) 3.5 mm, 3 pole captive screw connector
Contact Closure Pin Configuration: Pin 1 = Gnd, pin 2 = input 2, pin 3 = input 3
USB Control Port: 1 front panel female USB mini-B
USB Standards: USB 2.0, high speed
Program Control: Extron Product Configuration Software (PCS) for Windows
Control Processor Memory: 512 MB SDRAM, 512 MB Flash
Configuration Software: Extron Global Configurator Plus and Professional for Windows
Ethernet: 1 network interface controller; 1 female RJ-45; 10/100Base-T, half/full duplex with autodetect
Network Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Ethernet Default Settings: IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1; link speed and duplex autodetected
Serial Control: 1 bidirectional RS-232 on a 3-pole 3.5 mm captive screw connector; 300 to 115200 baud (9600 baud default)
Digital I/O: 4 configurable digital input/output on a 6-pole 3.5 mm captive screw connector; inputs 0 to 24 VDC, clamped at +30 VDC; outputs sink 250 mA from 24 VDC max.
IR Control: 1 programmable TTL level (0 to 5 V) infrared port, carrier and non-carrier, up to 300 kHz, on a 2-pole 3.5 mm captive screw connector
IR Output Carrier Frequency: 30 kHz to 300 kHz
Power Supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 4.2 A, 50 watts
Power Consumption: 20.5 watts (device); 23.0 watts (device and power supply)
Thermal Dissipation: 68.9 BTU/hour (device); 77.3 BTU/hour (device and power supply)
Operating Temperature/Humidity: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Storage Temperature/Humidity: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Cooling: Convection, vents on top and sides
Transmitter Mounting: Rack mount with an optional UCM R308 rack mounting panel; furniture or wall mount with a 2-gang junction box or mud ring mounting bracket and the included decorator-style wallplate, or an optional AAP 424 panel
Receiver Mounting: Rack mount with an optional 1U high rack shelf or back of the rack mounting kit; furniture mount with the included, attached MBU 125 under-desk mounting brackets
Enclosure Type: Metal
Transmitter Faceplate Dimensions: 2.6 in. H x 3.2 in. W x 0.2 in. D (66 mm H x 81 mm W x 6 mm D), fits the openings in a 2-gang decorator-style wallplate
Transmitter Device Dimensions: 2.72 in. H x 3.48 in. W x 1.86 in. D (69 mm H x 88 mm W x 47 mm D), depth excludes connectors
Receiver Dimensions: 1.0 in. H x 8.75 in. W x 6.0 in. D (25 mm H x 222 mm W x 152 mm D), half rack wide
Transmitter Weight: 0.7 lb (0.3 kg)
Receiver Weight: 1.2 lbs (0.6 kg)
Regulatory Compliance: CE, C-tick, c-UL, FCC Class A, ICES, UL, VCCI; complies with the appropriate requirements of RoHS and WEEE
Product Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor
