Extron HC 402 MK HDMI Wallplate Collaboration System
- • HDMI transmitter module built to mount in MK-type wall enclosures
- • Supplied with a matching MK 1-gang frame, 86 x 86 x 10 mm
- • Carries video, audio and power up to 230 ft (70 m) over shielded CATx
- • Scales output from 640x480 to 1920x1200, plus 1080p and 2048x1080
- • Two HDMI-embedded audio streams de-embed to a balanced stereo output
- • Low 16.8 watt draw; 19.0 watts including the external power supply
- • Built-in control processor with Ethernet, RS-232, IR and 4 digital I/O
Product discontinued. Replacement: https://www.extron.com/product/hc402.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

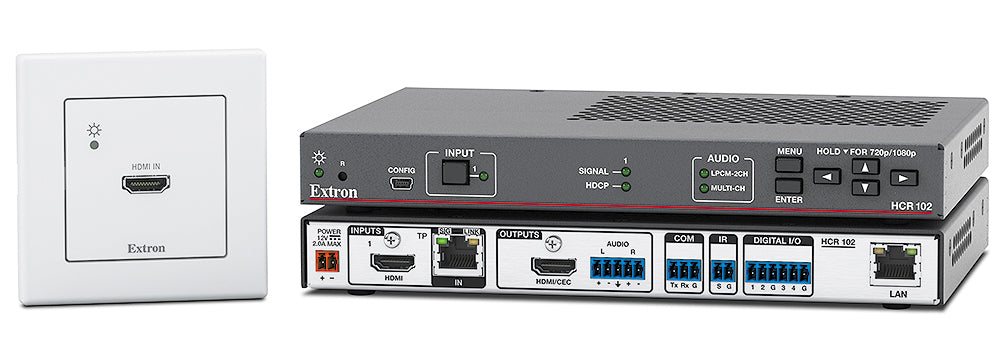

Extron HC 402 MK (part number 42-287-01) — the MK-enclosure edition of Extron's compact meeting room collaboration system.
This variant substitutes an HCT 101 MK transmitter for the decorator or EU plate, so the module drops into MK-type wall enclosures and arrives with a matching MK 1-gang frame. The 55 mm insert offers a single HDMI connector at the table or wall, and pairs with the HCR 102 scaling receiver over one shielded CATx run that carries signal and supplies the transmitter with power. Audio on this model travels embedded within HDMI; the receiver extracts stereo to its own balanced output when a separate feed to a DSP or amplifier is wanted.
Key Capabilities
- HDMI input on a 55 mm module designed for MK-type wall enclosures.
- Second HDMI input sits on the receiver for a permanently installed room source.
- Signal, embedded audio and remote power run to 230 ft (70 m) on shielded twisted pair.
- Scaling engine offers rates from 640x480 to 1920x1200, plus 1080p and 2048x1080.
- Control processor built in: 10/100Base-T Ethernet, RS-232, IR and four digital I/O ports.
- Modest 16.8 watt draw, or 19.0 watts measured with the external supply.
Where It Is Used
Meeting rooms, teaching spaces, training suites and clinical conference areas in markets standardised on MK wiring accessories. The half-rack receiver mounts beneath a table on its pre-fitted MBU 125 brackets, or behind the screen using an optional rack shelf or back-of-rack kit.
Specifications at a Glance
- Transmitter: HCT 101 MK, 55 mm module
- MK frame: 3.39 in. x 3.39 in. x 0.40 in. (86 x 86 x 10 mm), 1-gang
- Extension reach: 230 ft (70 m) over STP
- Audio input: 2 digital streams embedded in HDMI
- Warranty: 3 years parts and labor
Also referenced as Extron HC402MK, HC-402-MK, part number 4228701.
Specifications
Specifications

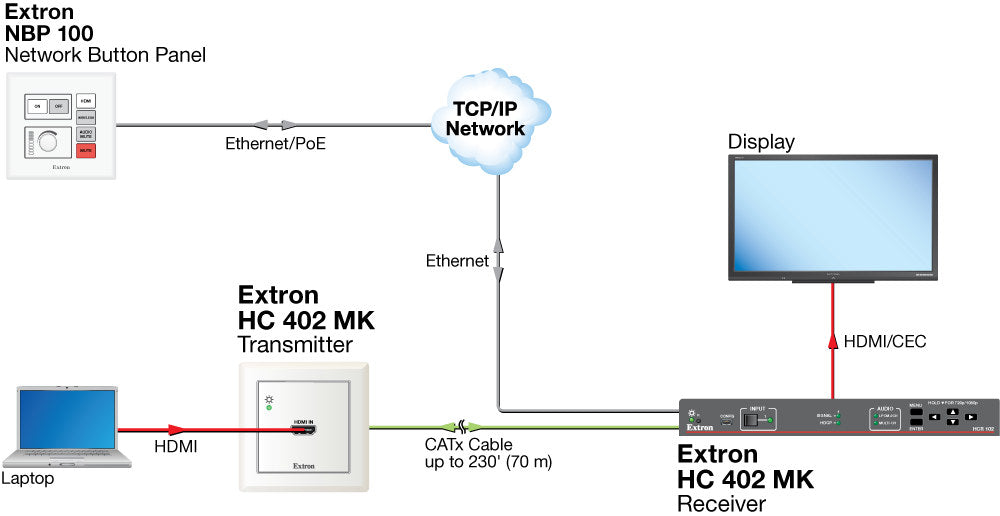

Diagram
