Extron HC 402 EU HDMI Wallplate Collaboration System
- • EU-frame HDMI transmitter module for 55 mm modular wall systems
- • Fits many 1-gang EU junction boxes; ships with its own 1-gang frame
- • Extends video, audio and power up to 230 ft (70 m) over shielded CATx
- • Scales output from 640x480 to 1920x1200, plus 1080p and 2048x1080
- • Audio arrives embedded in HDMI and de-embeds to a balanced stereo output
- • Lowest draw in the HC 400 line at 16.8 watts, 19.0 watts with supply
- • Control processor on board: Ethernet, RS-232, IR and 4 digital I/O
Product discontinued. Replacement: https://www.extron.com/product/hc402.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron HC 402 EU (part number 42-286-01) — the European-frame edition of Extron's two-box meeting room collaboration system.

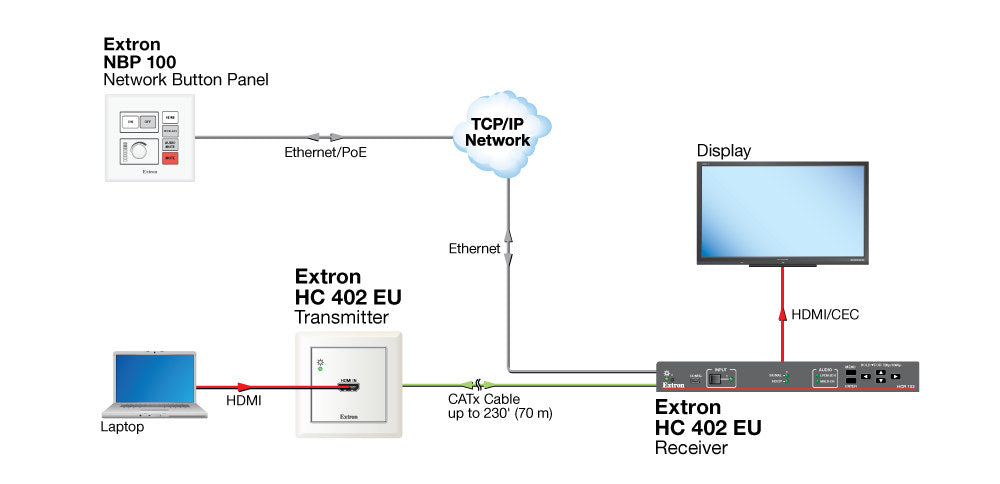

Where the standard HC 402 uses a US decorator plate, the EU version fits an HCT 101 EU transmitter module sized for European wiring practice. The 55 mm module drops into mounting frames that accept 55 mm inserts and into many 1-gang EU junction boxes, and it ships with its own 1-gang frame. It presents one HDMI connector to the presenter and links to the HCR 102 scaling receiver over a single shielded CATx run that also feeds it power. Audio arrives embedded in HDMI on this model rather than through a separate analog jack.
Key Capabilities
- HDMI input on a 55 mm EU module, plus a further HDMI input on the receiver.
- Two embedded HDMI audio streams; the receiver de-embeds stereo to a 5-pole captive screw output.
- Picture, sound and remote power share one STP run reaching 230 ft (70 m) at 1080p 60 Hz.
- Scaler produces selectable rates from 640x480 up to 1920x1200, plus 1080p and 2048x1080.
- Built-in control processor with 10/100Base-T Ethernet, RS-232, IR and four digital I/O ports.
- Draws 16.8 watts, the lowest in the HC 400 line alongside the MK variant.
Where It Is Used
European and international meeting rooms, huddle spaces, lecture theatres, training rooms and clinical review areas standardised on 55 mm modular wall systems. The half-rack receiver fits under a table on its supplied MBU 125 brackets or behind the display on an optional rack shelf.
Specifications at a Glance
- Transmitter: HCT 101 EU, 55 mm module
- EU frame: 3.17 in. x 3.17 in. x 0.40 in. (81 x 81 x 10 mm), 1-gang
- Extension reach: 230 ft (70 m) over STP
- Power draw: 16.8 watts device, 19.0 watts with supply
- Warranty: 3 years parts and labor
Also referenced as Extron HC402EU, HC-402-EU, part number 4228601.
