Extron HC 402 HDMI Wallplate Collaboration System
- • White decorator-style HDMI wallplate transmitter with matching HCR 102 receiver
- • Sends video, audio and power up to 230 ft (70 m) over shielded CATx cable
- • Scales output from 640x480 up to 1920x1200, plus 1080p and 2048x1080
- • Built-in control processor: Ethernet, RS-232, IR and 4 digital I/O ports
- • Receiver adds a second HDMI input for a locally mounted source
- • Draws 17.2 watts, or 19.6 watts including the external supply
- • Covered by a 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

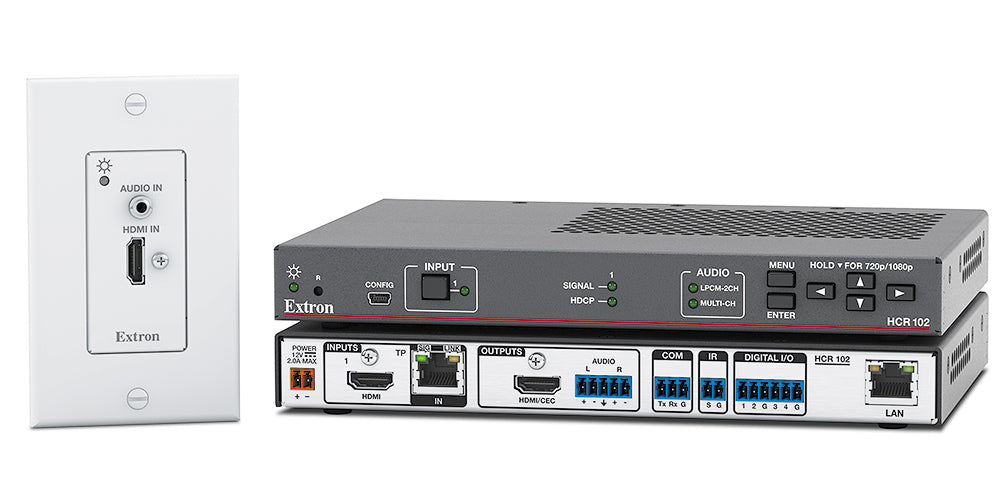

Extron HC 402 (part number 42-285-01) — the white decorator-style wallplate version of Extron's two-piece meeting room collaboration system.
The HC 402 ships as a matched pair: an HCT 101 D wallplate transmitter that takes a single HDMI source at the table or lectern, and an HCR 102 half-rack receiver that scales the picture and feeds the display. One shielded CATx run carries video, audio and power between them, so the only visible hardware in the room is a single-gang plate. The receiver contributes a second HDMI port for a locally mounted source and remotely powers the transmitter over the same twisted pair, which keeps a second outlet out of the wall cavity.
Key Capabilities
- HDMI at the wallplate plus a second HDMI input on the receiver, both with automatic equalization.
- Scaling engine drives selectable rates from 640x480 through 1920x1200, plus 1080p and 2048x1080.
- Video, audio and remote power reach 230 ft (70 m) over shielded twisted pair terminated to TIA/EIA T568B.
- Integrated control processor with 10/100Base-T Ethernet, bidirectional RS-232, four configurable digital I/O and an IR port.
- Analog stereo output on a 5-pole captive screw connector, balanced or unbalanced, adjustable across the full range in 1% steps.
- DVI 1.0, HDMI 1.4 and HDCP 1.4 compliant, with 10-bit processing for 1 billion colors.
Where It Is Used
Huddle spaces, small conference rooms, classrooms, training suites and clinical review areas where a discreet wallplate is the whole user interface. The half-rack receiver mounts under a table on its factory-fitted MBU 125 brackets, or goes behind the display on an optional rack shelf or back-of-rack kit.
Specifications at a Glance
- Transmitter: HCT 101 D, 1 female HDMI type A
- Extension reach: 230 ft (70 m) over STP
- Power draw: 17.2 watts device, 19.6 watts with supply
- Transmitter faceplate: 2.61 in. H x 1.29 in. W x 0.25 in. D
- Warranty: 3 years parts and labor
Also referenced as Extron HC402, HC-402, part number 4228501.
