Details

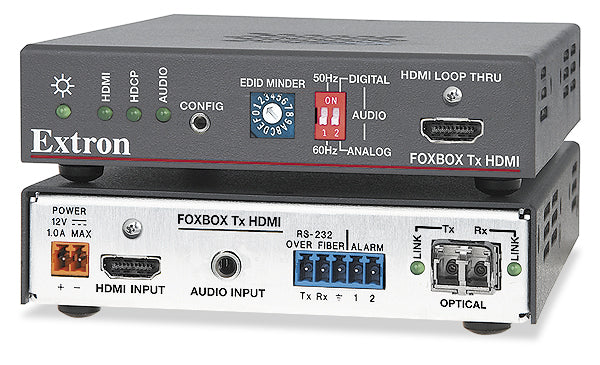

Extron FOXBOX Tx HDMI SM (part number 60-1174-12) — a compact singlemode fiber transmitter that extends a single HDMI source with embedded or discrete stereo audio and RS-232 pass-through.

This quarter-rack transmitter pairs with a FOXBOX Rx HDMI receiver to carry an HDMI signal up to 1920x1200 at 60 Hz (or an undersampled 2K at 60 Hz) across two singlemode LC fiber strands, with EDID emulation and HDCP-compliant switching built in, reaching as far as 30 km.

Key Capabilities

HDMI extension up to 1920x1200 at 60 Hz, pixel-for-pixel, over singlemode fiber
Singlemode reach up to 30 km (18.75 miles)
Embedded or discrete stereo audio input with adjustable gain
RS-232 front-panel control plus rear captive-screw pass-through
EDID emulation (custom or factory preset tables) for reliable source handshaking
Compact quarter-rack metal enclosure, external 12 VDC supply, 7-year Everlast warranty

Where It Is Used

Fits long-haul point-to-point HDMI extension across campus or building-to-building links where a low-profile transmitter and matched receiver replace a long copper run.

Specifications at a Glance

Video: HDMI, HDCP 1.1, up to 1920x1200 at 60 Hz, 4.25 Gbps
Fiber: singlemode, up to 30 km, 2 LC connectors, 1310 nm
Power: external 12 VDC/18 W supply, 5.7 W device draw
Enclosure: quarter-rack metal, 1.0"H x 4.3"W x 6.0"D, 0.7 lbs

Also referenced as Extron FOXBOXTXHDMISM, FOXBOX-Tx-HDMI-SM, part number 60117412.

Specifications

Part Number: 60-1174-12

Manufacturer: Extron

Model: FOXBOX Tx HDMI SM

Condition: New

Video Input/Loop-Through: 1 single link HDMI input, 1 single link HDMI loop-through

Video Connectors: 2 female HDMI type A (1 input, 1 loop-through)

Data Rate: 4.25 Gbps

Resolution Range: 640x480 up to 1920x1200 at 60 Hz pixel-for-pixel (480p, 576p, 720p, 1080i, 1080p at 60 Hz); 2K (2048x1080) at 60 Hz undersampled

Formats: RGB and YCbCr digital video

EDID: Supports emulation of custom or factory preset EDID tables

HDCP: Compliant with HDCP using DVI and HDMI standards

Standards: DVI 1.0, HDMI, HDCP 1.1, CEA-861E

Video Nominal Level: 0.8 Vp-p

Audio Input: 1 unbalanced stereo or 2 unbalanced mono (3.5 mm mini stereo jack), or 1 stereo de-embedded from HDMI (2-CH PCM only)

Audio Impedance: >10k ohms unbalanced, DC coupled

Audio Nominal Level: -10 dBV (316 mVrms)

Audio Maximum Level: +8.9 dBV unbalanced, at 1% THD+N

Audio Gain Range: Adjustable, -18 dB to +10 dB

Audio Gain Default: Unbalanced output -6 dB, balanced output 0 dB

Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB

THD+N: 0.10% at 1 kHz, nominal level

S/N Ratio: >80 dB at maximum output, unweighted

CMRR: 65 dB at 20 Hz to 20 kHz

Audio Bit Depth: 18 bits per channel, 2 channels (L, R)

Sampling Rate: 48 kHz

Fiber Connectors: 2 LC connectors

Operating Distance (Singlemode): Up to 30 km (18.75 miles)

Nominal Peak Wavelength: 1310 nm

Transmission Power (Singlemode): -5 dBm, typical

Maximum Receiver Sensitivity (Singlemode): -18 dBm, typical

Optical Loss Budget (Singlemode): 13 dB, maximum

Serial Control Port: 1 RS-232, 2.5 mm mini stereo jack, front panel, 9600 baud

Serial Pass-Through Port: 1 RS-232, 3.5 mm captive screw, 5-pole (3 pins used), rear panel, 9600-115200 baud

Program Control: Extron control/configuration program, SIS commands

Power Supply: External, input 100-240 VAC 50-60 Hz, output 12 VDC 1.5 A 18 W

Power Consumption: 5.7 W device only, 7.2 W device and power supply, 12 VDC

Thermal Dissipation: 16.1 BTU/hr device only, 21.3 BTU/hr device and power supply

Ambient Temperature/Humidity: Storage -40 to 158 F, Operating 32 to 122 F, 10% to 90% noncondensing

Cooling: Convection, vents on top and side panels

Enclosure: Metal, 1.0" H x 4.3" W x 6.0" D, quarter-rack width

Mounting: Optional rack shelf or under-desk mounting kit

Weight: 0.7 lbs (0.3 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | FOXBOX HDMI (foxboxhdmi_bro_revB5.pdf)

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | Everlast Power Supplies

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | Extron Government Solutions

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | FOXBOX HDMI (FOXBOX-HDMI_BR_A4_SP_RevA1.pdf)

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | Alimentatori Everlast

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | Everlast 电源

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | Everlast-Netzteile

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | Extron-Lösungen für Behörden

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | FOXBOX HDMI (foxbox_hdmi_bro_cn_revA1.pdf)

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | FOXBOX Tx HDMI MM - Specs Sheet

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | FOXBOX Tx HDMI SM - Specs Sheet

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | Fuentes de alimentación Everlast

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | Solutions Extron pour structures gouvernementales

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | Soluzioni Extron per ambienti governativi

Brochure | FOXBOX Tx HDMI SM 60-1174-12 | Sources d'alimentation Everlast

Manual | FOXBOX Tx HDMI SM 60-1174-12 | Cleaning Instruction Card

Manual | FOXBOX Tx HDMI SM 60-1174-12 | FOXBOX Tx/Rx HDMI Setup Guide

Manual | FOXBOX Tx HDMI SM 60-1174-12 | FOXBOX Tx/Rx HDMI User Guide

Manual | FOXBOX Tx HDMI SM 60-1174-12 | FOXBOX Tx/Rx VGA, VGA/YUV, DVI, and DVI Plus User Guide

Specifications | FOXBOX Tx HDMI SM 60-1174-12 | FOXBOX Tx HDMI Series

Panel Drawing | FOXBOX Tx HDMI SM 60-1174-12 | FOXBOX Tx HDMI
