Extron FOXBOX Tx HDMI MM 60-1174-11

Extron FOXBOX Tx HDMI MM Fiber Optic Transmitter 60-1174-11

Extron FOXBOX Tx HDMI MM Fiber Optic Transmitter 60-1174-11

Manufacturer: Extron

Type: Fiber Optics

Extron FOXBOX Tx HDMI MM 60-1174-11 Multimode Fiber Transmitter

  • • HDMI extension up to 1920x1200 at 60 Hz over multimode fiber
  • • Multimode reach up to 2 km on OM3/OM4 fiber
  • • Embedded or discrete stereo audio with adjustable gain
  • • RS-232 front-panel control plus rear pass-through
  • • EDID emulation for reliable source handshaking
  • • Compact enclosure with external 12 VDC supply and 7-year Everlast warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-FOXBOXTXHDMIMM-60117411

Details

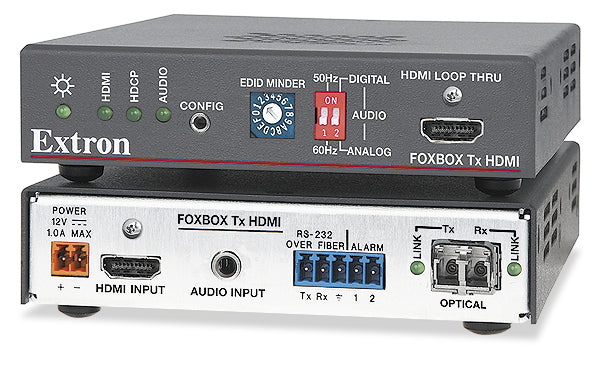

Extron FOXBOX Tx HDMI MM (part number 60-1174-11) — a compact multimode fiber transmitter that extends a single HDMI source with embedded or discrete stereo audio and RS-232 pass-through.

This quarter-rack transmitter pairs with a FOXBOX Rx HDMI receiver to carry an HDMI signal up to 1920x1200 at 60 Hz (or an undersampled 2K at 60 Hz) across two multimode LC fiber strands, with EDID emulation and HDCP-compliant switching built in.

Key Capabilities

  • HDMI extension up to 1920x1200 at 60 Hz, pixel-for-pixel, over multimode fiber
  • Multimode reach up to 2 km on OM3/OM4 fiber, 300 m on OM1
  • Embedded or discrete stereo audio input with adjustable gain
  • RS-232 front-panel control plus rear captive-screw pass-through
  • EDID emulation (custom or factory preset tables) for reliable source handshaking
  • Compact quarter-rack metal enclosure, external 12 VDC supply, 7-year Everlast warranty

Where It Is Used

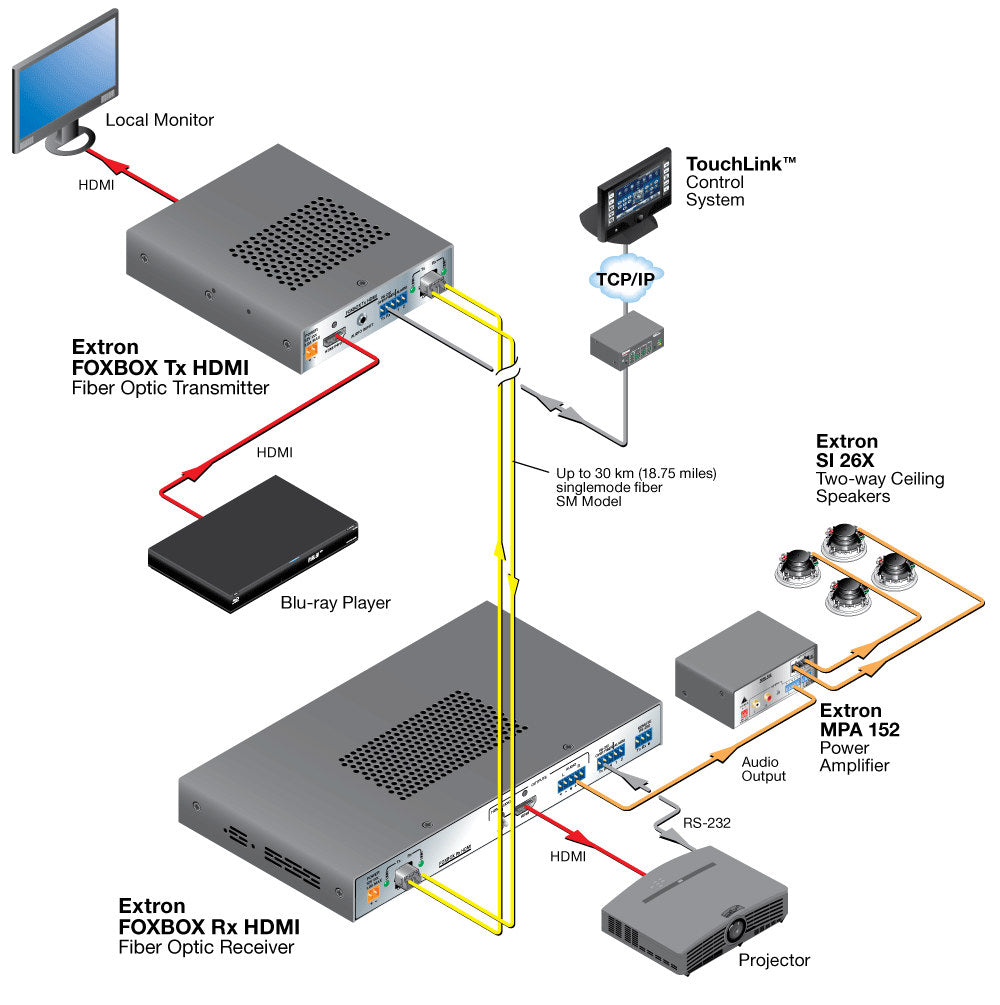

Fits point-to-point HDMI extension in classrooms, boardrooms, and control rooms where a low-profile transmitter and matched receiver replace a long copper run.

Specifications at a Glance

  • Video: HDMI, HDCP 1.1, up to 1920x1200 at 60 Hz, 4.25 Gbps
  • Fiber: multimode, up to 2 km (OM3/OM4), 2 LC connectors, 850 nm
  • Power: external 12 VDC/18 W supply, 5.7 W device draw
  • Enclosure: quarter-rack metal, 1.0"H x 4.3"W x 6.0"D, 0.7 lbs

Also referenced as Extron FOXBOXTXHDMIMM, FOXBOX-Tx-HDMI-MM, part number 60117411.
