Extron FOXBOX SR HDMI SM 60-1187-22

Extron FOXBOX SR HDMI SM Fiber Optic Scaling Receiver 60-1187-22

Extron FOXBOX SR HDMI SM Fiber Optic Scaling Receiver 60-1187-22

Manufacturer: Extron

Type: Fiber Optics

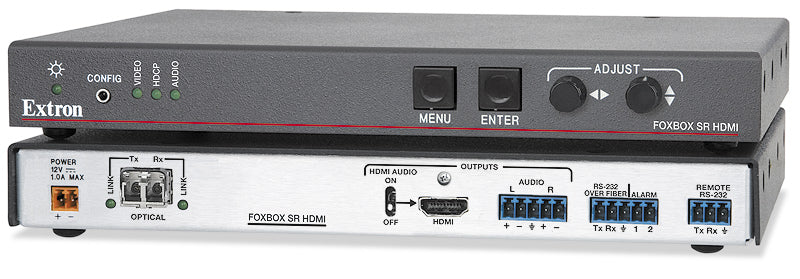

Extron FOXBOX SR HDMI SM 60-1187-22 Singlemode Scaling Receiver

  • • Singlemode fiber optic HDMI scaling receiver in a compact standalone enclosure
  • • Scales and outputs HDMI video up to 1920x1200 at 60 Hz
  • • 30 km singlemode fiber reach, 1310 nm, compatible with FOX singlemode transmitters
  • • Full USB 2.0 host and HID ports for KVM extension from the display end
  • • External Everlast power supply included, 7-year warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-FOXBOXSRHDMISM-60118722

Details

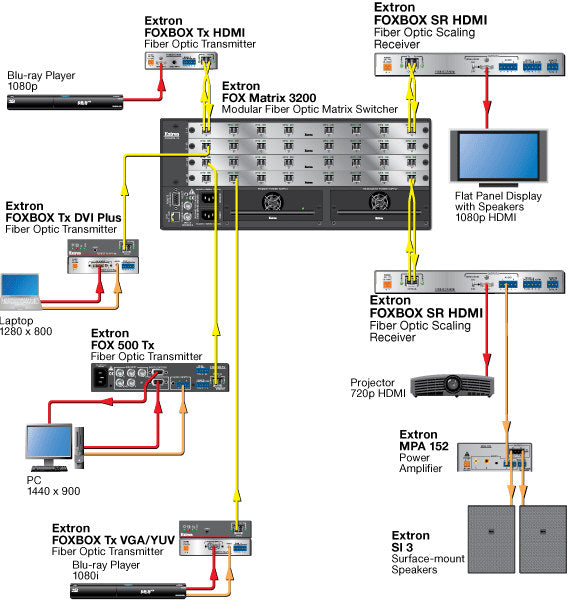

Extron FOXBOX SR HDMI SM (part number 60-1187-22) — a singlemode fiber scaling receiver that pairs with any FOX Series HDMI, DVI, VGA, or VGA/YUV transmitter (including the FOX Matrix Series) to output a clean, rescaled HDMI signal over runs as long as 30 km.

This half-rack receiver decodes the incoming singlemode fiber signal, scales it internally with 24-bit/165 MHz digital sampling, and outputs a single HDCP-compliant HDMI feed at up to 1920x1200 at 60 Hz, along with balanced/unbalanced audio and dual RS-232 ports.

Key Capabilities

  • Internal video scaling to a wide range of fixed and HDTV output resolutions
  • Singlemode reach up to 30 km (18.75 miles), matching the paired transmitter
  • Balanced/unbalanced audio output with adjustable gain
  • Dual RS-232 ports — front-panel control and rear pass-through
  • Compatible with FOX Series HDMI, DVI, VGA, and VGA/YUV transmitters
  • Compact half-rack metal enclosure, external 12 VDC supply, 7-year Everlast warranty

Where It Is Used

Fits long-haul installs where the display's native resolution differs from the source and the signal must be rescaled after a singlemode fiber run across campus or building-to-building links.

Specifications at a Glance

  • Video: HDMI, HDCP 1.1, output up to 1920x1200 at 60 Hz, 24-bit/165 MHz scaling
  • Fiber: singlemode, up to 30 km, 2 LC connectors, 1310 nm
  • Power: external 12 VDC/18 W supply, 8.4 W device draw
  • Enclosure: half-rack metal, 1.0"H x 8.75"W x 6.0"D, 1.1 lbs

Also referenced as Extron FOXBOXSRHDMISM, FOXBOX-SR-HDMI-SM, part number 60118722.
