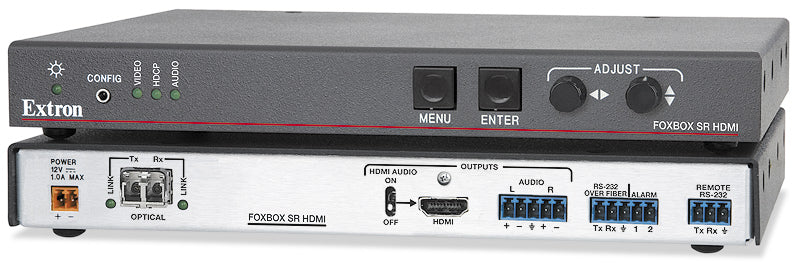

Extron FOXBOX SR HDMI MM 60-1187-21

Extron FOXBOX SR HDMI MM Fiber Optic Scaling Receiver 60-1187-21

Extron FOXBOX SR HDMI MM Fiber Optic Scaling Receiver 60-1187-21

Manufacturer: Extron

Type: Fiber Optics

Extron FOXBOX SR HDMI MM 60-1187-21 Multimode Scaling Receiver

  • • Internal 24-bit/165 MHz video scaling to a wide range of resolutions
  • • Multimode reach up to 2 km on OM3/OM4 fiber
  • • Balanced/unbalanced audio output with adjustable gain
  • • Dual RS-232 ports for front-panel control and rear pass-through
  • • Compatible with FOX Series HDMI, DVI, VGA, and VGA/YUV transmitters
  • • Compact enclosure with external 12 VDC supply and 7-year Everlast warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-FOXBOXSRHDMIMM-60118721

Details

Extron FOXBOX SR HDMI MM (part number 60-1187-21) — a multimode fiber scaling receiver that pairs with any FOX Series HDMI, DVI, VGA, or VGA/YUV transmitter (including the FOX Matrix Series) to output a clean, rescaled HDMI signal.

This half-rack receiver decodes the incoming multimode fiber signal, scales it internally with 24-bit/165 MHz digital sampling, and outputs a single HDCP-compliant HDMI feed at up to 1920x1200 at 60 Hz, along with balanced/unbalanced audio and dual RS-232 ports.

Key Capabilities

  • Internal video scaling to a wide range of fixed and HDTV output resolutions
  • Multimode reach up to 2 km on OM3/OM4 fiber, matching the paired transmitter
  • Balanced/unbalanced audio output with adjustable gain
  • Dual RS-232 ports — front-panel control and rear pass-through
  • Compatible with FOX Series HDMI, DVI, VGA, and VGA/YUV transmitters
  • Compact half-rack metal enclosure, external 12 VDC supply, 7-year Everlast warranty

Where It Is Used

Fits installs where the display's native resolution differs from the source and the signal must be rescaled after a multimode fiber run — classrooms, boardrooms, and control rooms.

Specifications at a Glance

  • Video: HDMI, HDCP 1.1, output up to 1920x1200 at 60 Hz, 24-bit/165 MHz scaling
  • Fiber: multimode, up to 2 km (OM3/OM4), 2 LC connectors, 850 nm
  • Power: external 12 VDC/18 W supply, 8.4 W device draw
  • Enclosure: half-rack metal, 1.0"H x 8.75"W x 6.0"D, 1.1 lbs

Also referenced as Extron FOXBOXSRHDMIMM, FOXBOX-SR-HDMI-MM, part number 60118721.
